Description

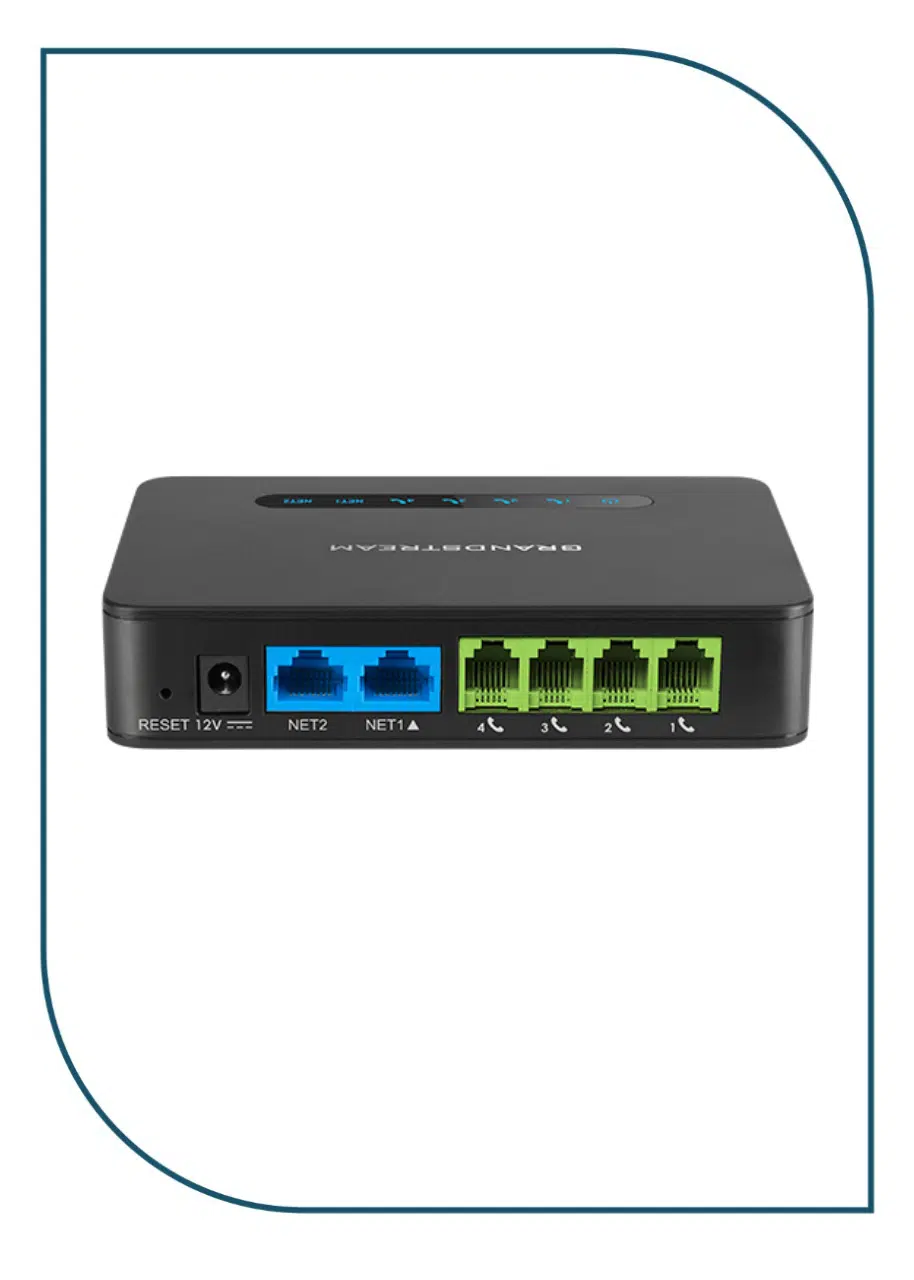

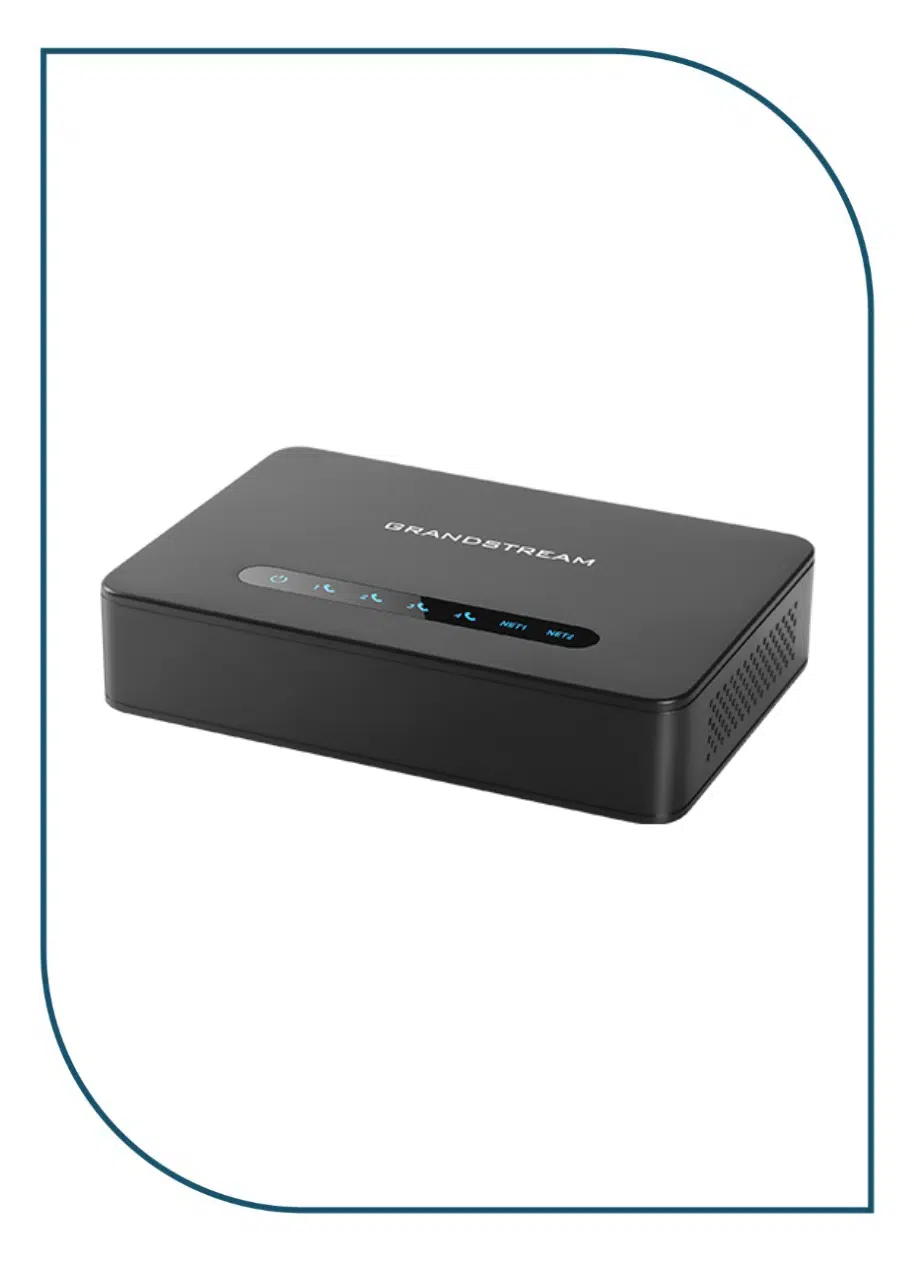

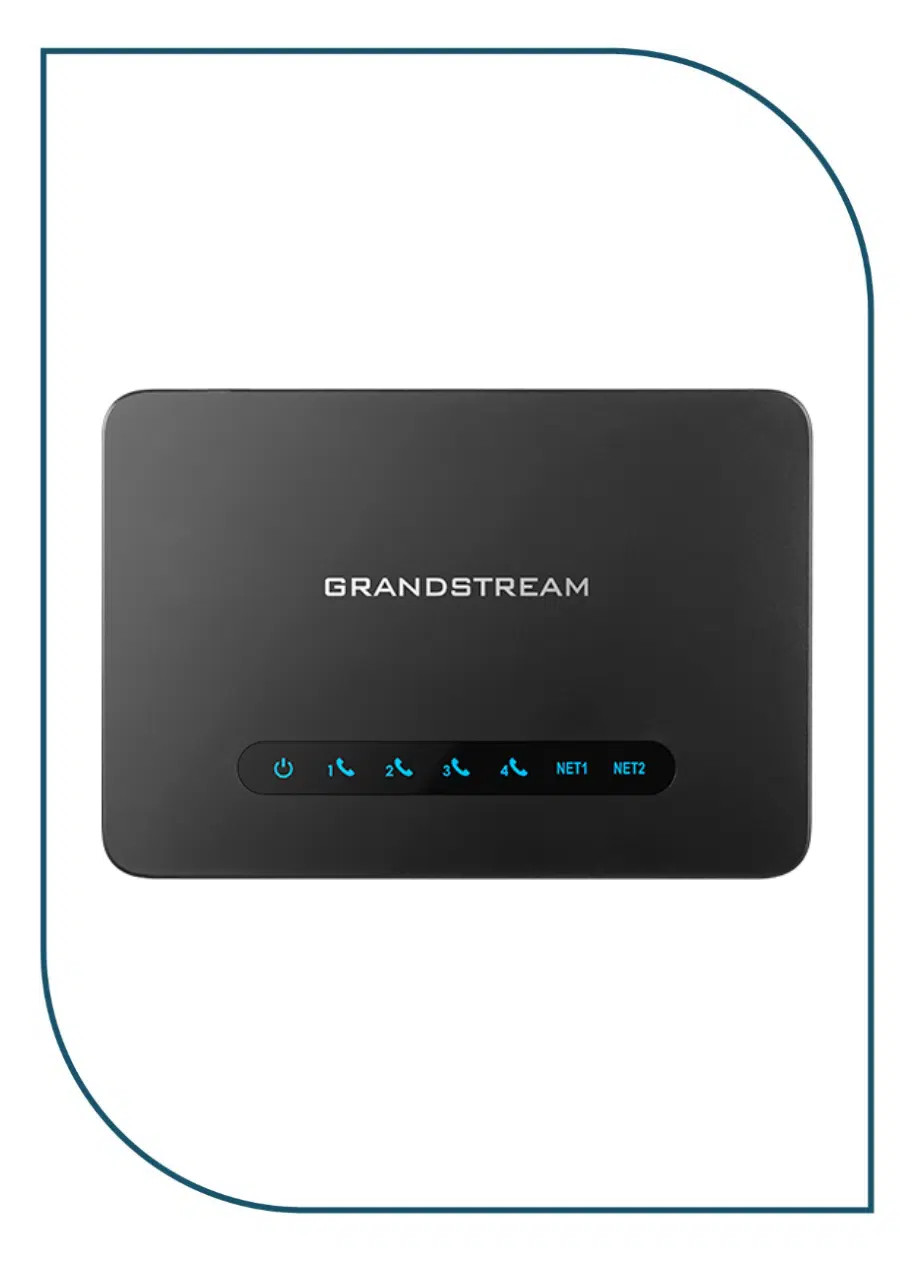

HT814 V2
- Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
- Includes a built-in NAT router which can handle routing speeds up to 100MBps
- TLS and SRTP security encryption technology to protect calls and accounts
- LED Indicators – POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
| Category | Details |
|---|---|
| Lines | 4 Lines |
| Audio Conferencing | 3-Way Voice Conferencing per Port |
| Telephone Interfaces | Four (4) RJ11 FXS ports; can be expanded by peering with an FXS gateway |
| Network Interfaces | Two (2) 10/100/1000Mbps RJ45 ports |
| LED Indicators | Power, Net1, Net2, Phone1, Phone2, Phone3, Phone4 |
| Telephony Features | Caller ID display or block, Call Waiting, Flash, Blind or Attended Transfer, Call Forward, Hold, Do Not Disturb, 3-Way Conference |
| Fax Over IP | T.38 compliant Group 3 Fax Relay up to 14.4 kbps and auto-switch to G.711 for Fax Pass-through |
