Description

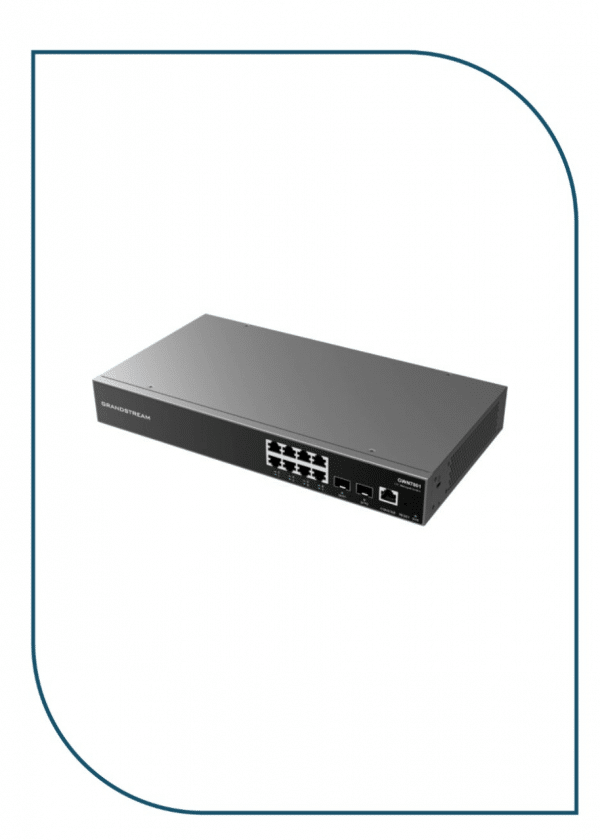

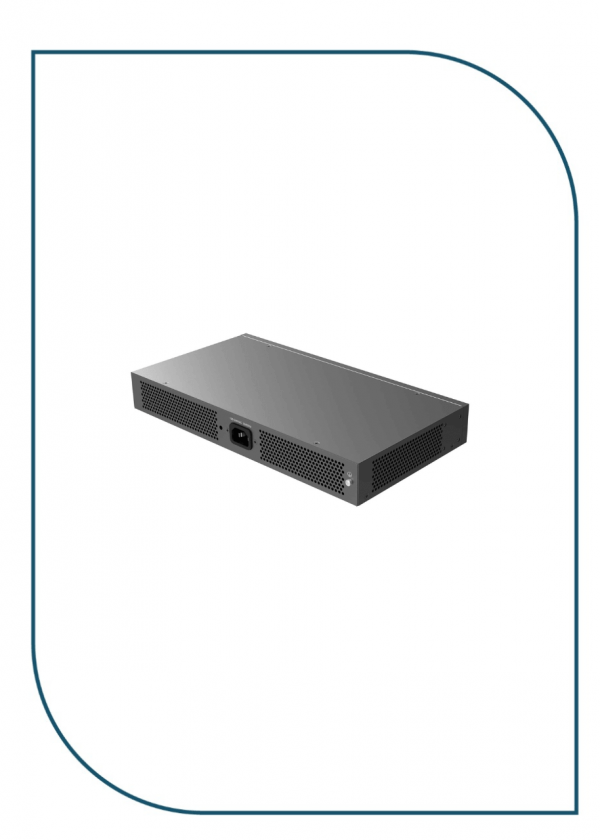

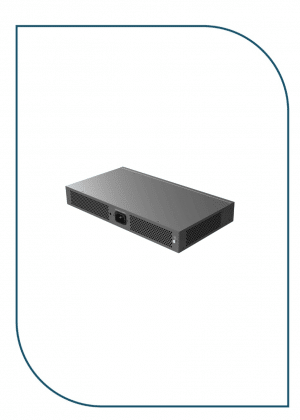

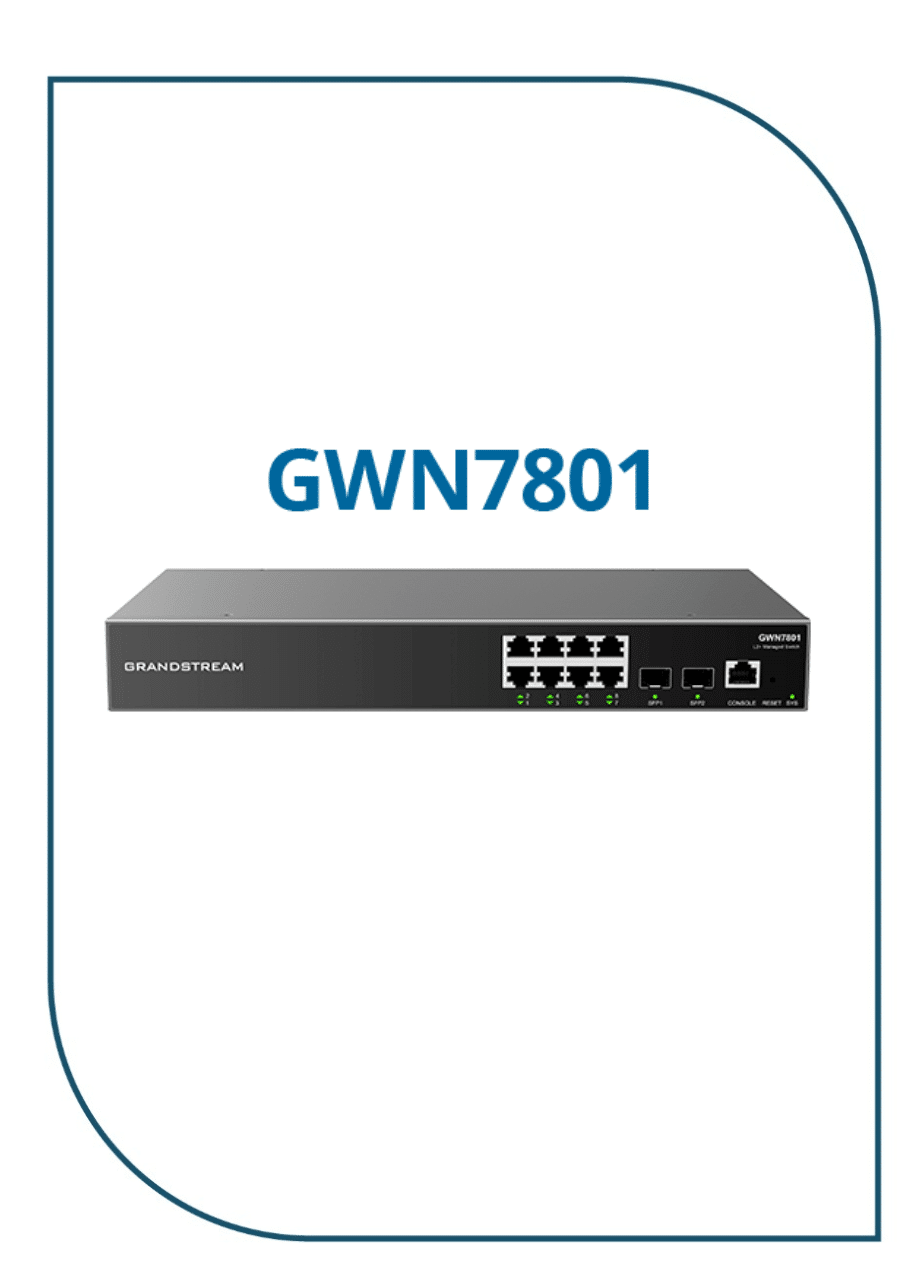

GWN7801
Grandstream GWN7800 series
Layer 2+ Managed Network Switches
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable
- 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 networks
- Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Local Web UI to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
- Built-in QoS allows for prioritization of network traffic
SPECIFICATION
| Specs | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 8 |
| Gigabit SFP/SFP+ Ports | 2 SFP Ports |
| Total Non-Blocking Throughput | 10Gbps |
| Switching Capability | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| Switching | 8K static, dynamic and filtering MAC addresses |
| 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN | |
| VLAN virtual interface | |
| GVRP (pending) | |
| 8 link aggregation groups | |
| Spanning tree, 16 instances for STP/RSTP/MSTP | |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet |
| 802.1X authentication | |
| AAA authentication including RADIUS, TACACS+ | |
| Storm control • Port isolation, port security, sticky MAC | |
| Filtering MAC address | |
| IP source guard, DoS attack prevention, ARP inspection | |
| DHCP Snooping | |
| Loop protection including BPDU protection, root protection and loopback protection | |
| Kensington Security Slot (Kensington Lock) support | |
