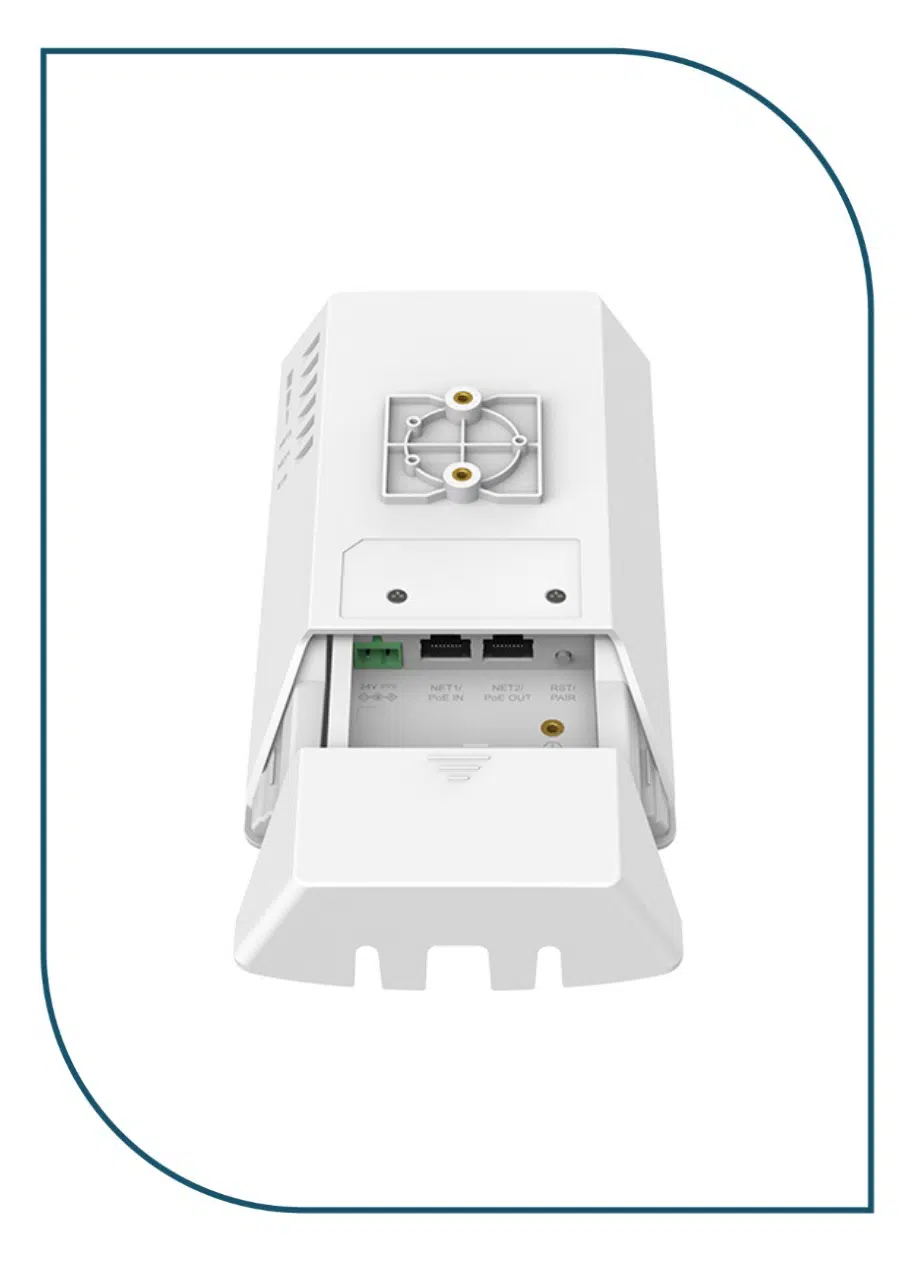

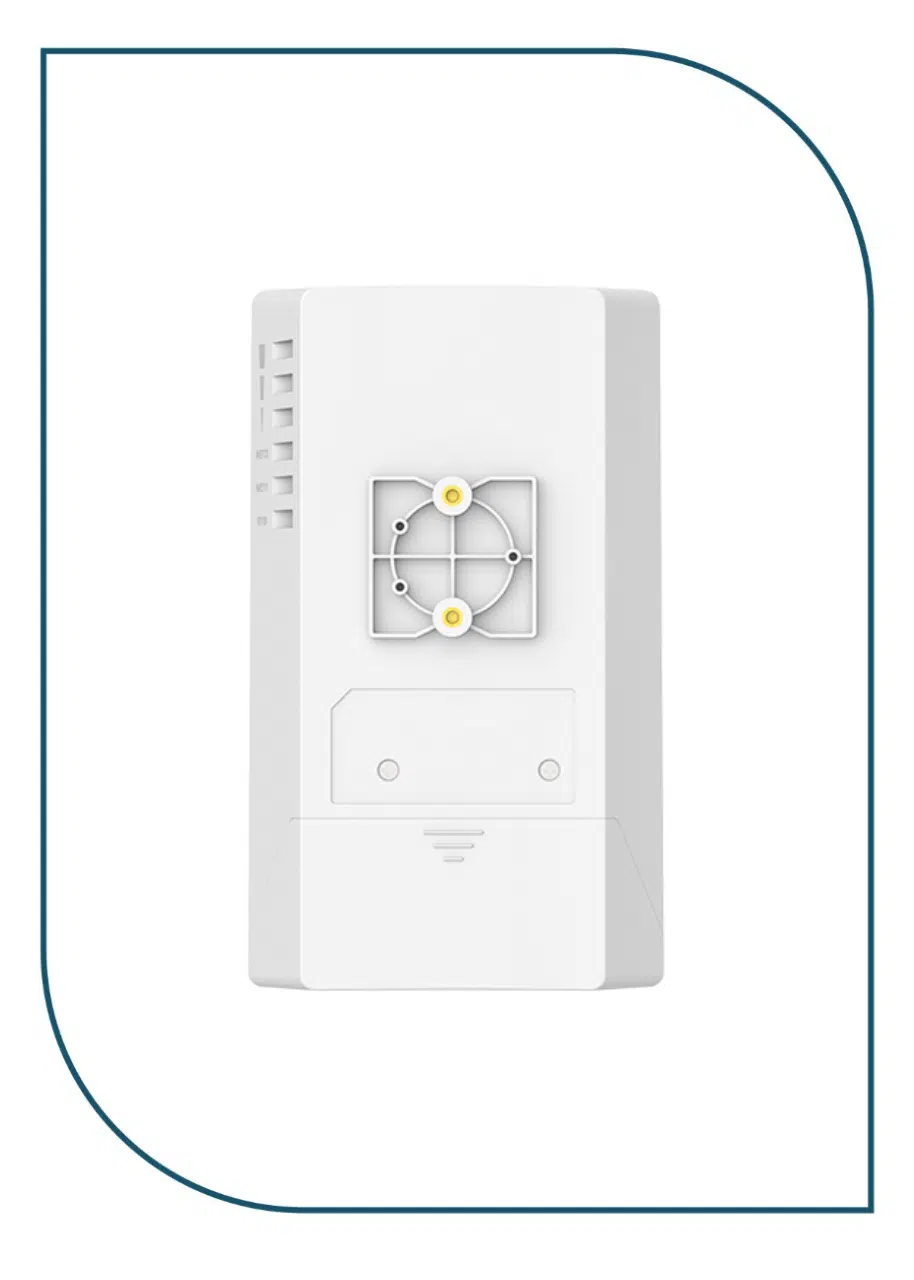

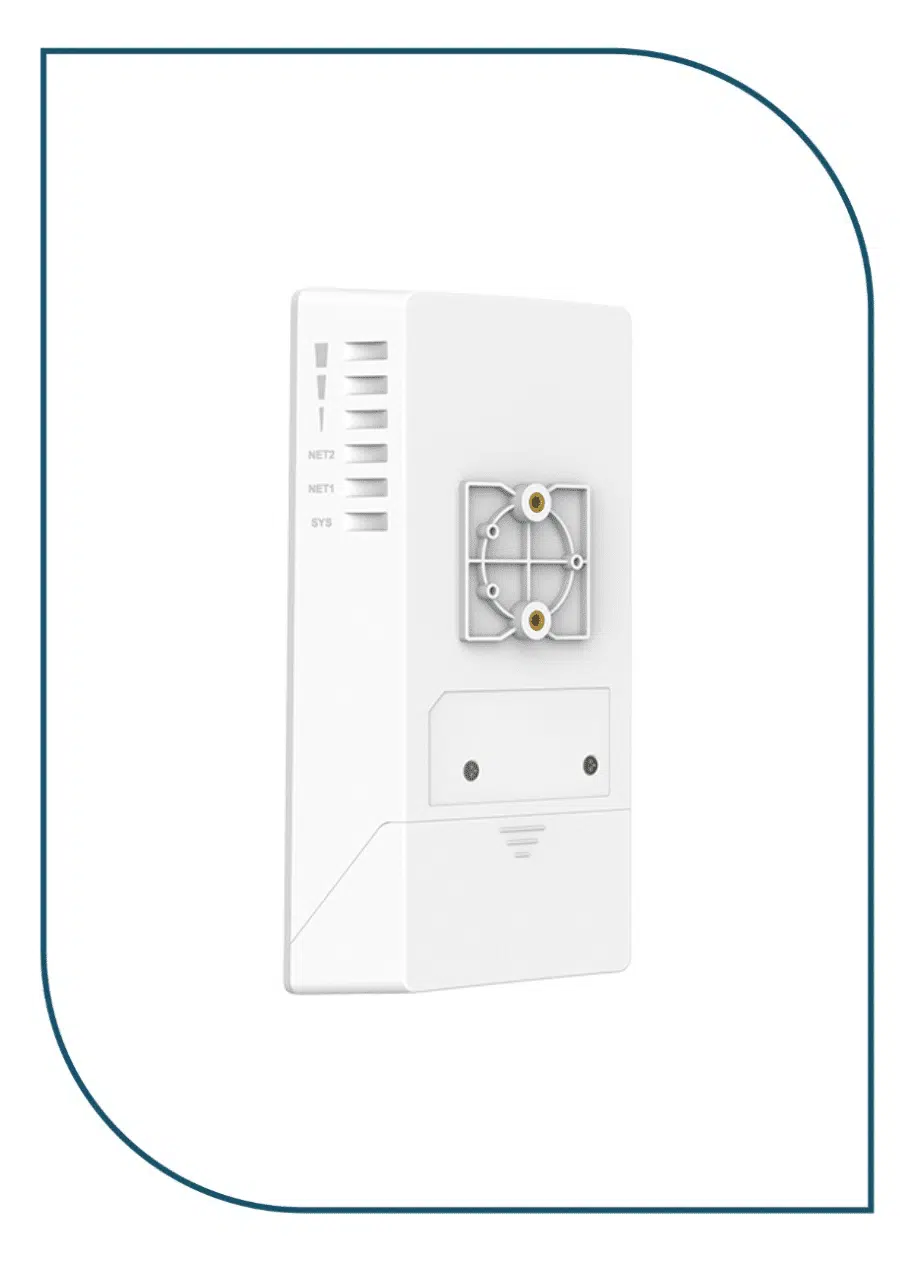

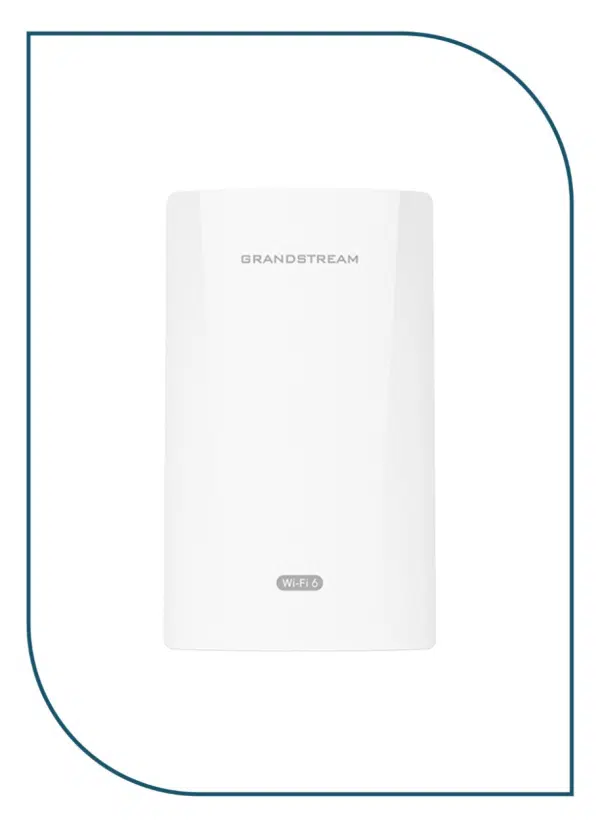

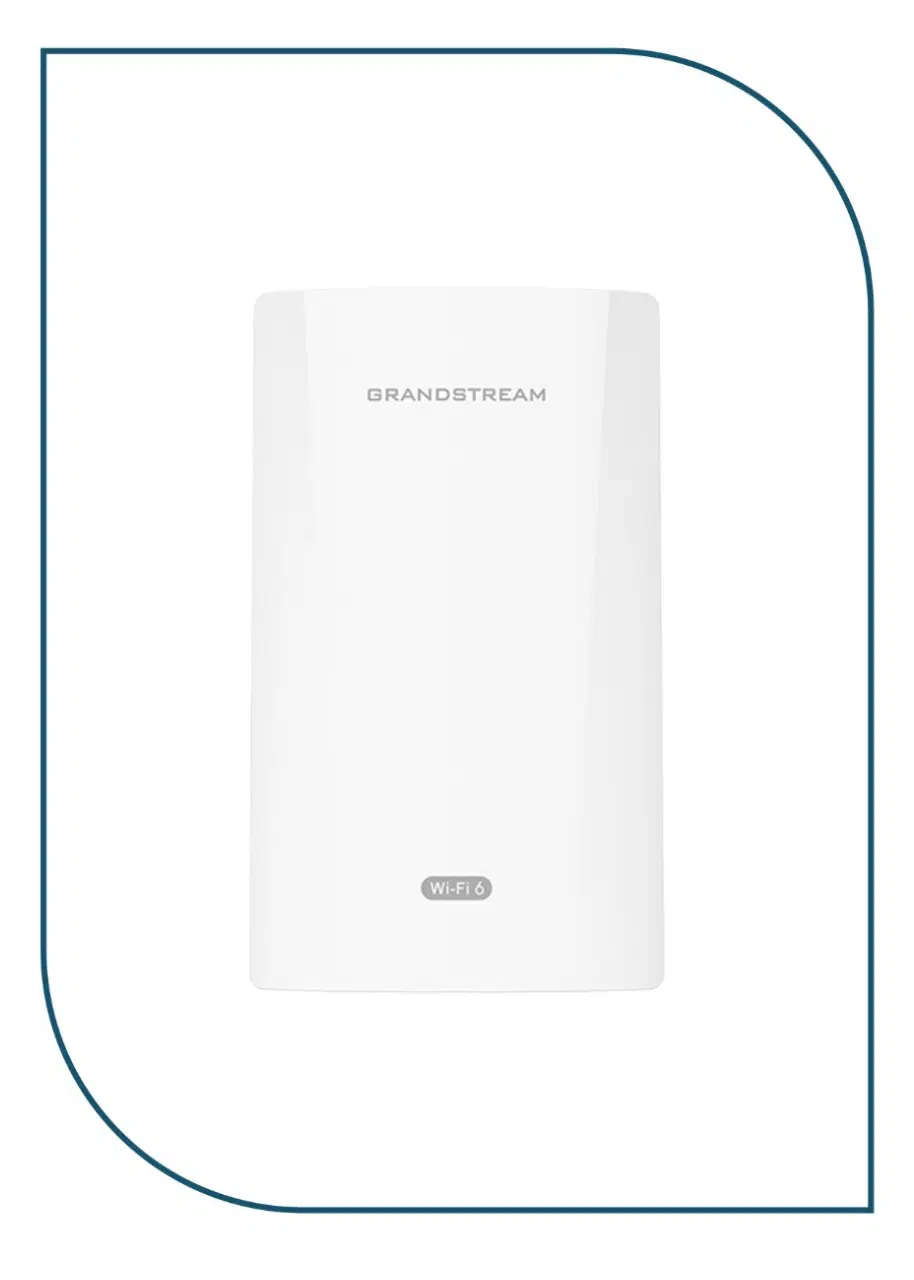

Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge
The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2×2:2 MIMO, 5km coverage range, and IP66 level weatherproof capability to ensure equipment stability.
Description
Market-Leading Features
The GWN7302 comes equipped with advanced performance-boosting features and competitive differentiators:
-
High-Performance Bridging: The GWN7302 is an enterprise-grade PtP/PtMP system, designed to provide a high-performance bridging solution for locally separated networks. With a focus on performance and range, this is a perfect device for medium-to-large organizations. It has a sophisticated antenna design, speed up to 2.4Gbps, and a 5km coverage range.
-
Flexible & Free Management: Outside of the built-in controller, there are other free ways to manage a GWN7302 wireless bridge via the GWN App, GDMS Networking, and GWN Manager.
-
Flexible Network Features: The GWN7302 comes equipped with advanced performance boosting features that allow it to be deployed in diverse use case scenarios. These features include IP66-Level Weatherproofing, One-key pairing, controllerless design, and system tools.
- 2.4Gbps aggregate wireless throughput, 2×1 Gigabit Ethernet Port
- Single-band 2×2:2 MIMO with TDMA technology
- Up to 5-kilometer coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- IP66 level weatherproof
- Self-power adaptation upon auto detection of PoE+
- Convenient and intelligent web management; GWN App management; GDMS Networking offers a remote management via SSH tunneling
Additional information
| Access Ports | 2 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Management Platform | |
| Mounting Options | Pole mount (outdoor) |
| Max Data Rate | |
| POE | Support POE |
| POE Budget | |
| Uplink Ports | 1 |
| UpLinks Speed | 1G |
| Wifi | WIFI 6 |
| Wireless Bands | 5GHz |
