Description
GCC6010W
Overview
| Feature | Specification |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 3 internal antennas (2 x dual band + 1 x single band 5G) |
| 2.4GHz max gain: 4dBi | |
| 5GHz max gain: 6dBi | |
| Wi-Fi Data Rates (2.4 GHz) | IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps |
| IEEE 802.11n: 6.5 Mbps to 300 Mbps | |
| IEEE 802.11b: 1, 2, 5.5, 11 Mbps | |
| IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Wi-Fi Data Rates (5 GHz) | IEEE 802.11ax: 7.3 Mbps to 3603 Mbps |
| IEEE 802.11ac: 6.5 Mbps to 2600 Mbps | |
| IEEE 802.11n: 6.5 Mbps to 450 Mbps | |
| IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Note | Actual throughput may vary due to environment, distance, interference, and device mix |
| Frequency Bands | 2.4GHz: 2400 – 2483.5 MHz (Channels 2412-2472 MHz central frequencies) |
| 5GHz: 5150 – 5895 MHz | |
| *Not all bands usable in all regions | |
| Channel Bandwidth | 2.4 GHz: 20 MHz, 40 MHz |
| 5 GHz: 20, 40, 80, 160 MHz | |
| Wi-Fi & System Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, digital signatures, unique certificates, randomized default passwords |
| MU-MIMO | 2×2:2 on 2.4 GHz |
| 3×3:3 on 5 GHz | |
| Max Transmit Power | 2.4 GHz: 28.5 dBm |
| 5 GHz: 25.5 dBm | |
| *Varies by country and channel | |
| Receiver Sensitivity (2.4 GHz) | 802.11b: -97dBm @1Mbps, -89dBm @11Mbps |
| 802.11g: -93dBm @6Mbps, -75dBm @54Mbps | |
| 802.11n 20MHz: -73dBm @MCS7, 40MHz: -70dBm @MCS7 | |
| 802.11ax 20MHz: -64dBm @MCS11, 40MHz: -63dBm @MCS11 | |
| Receiver Sensitivity (5 GHz) | 802.11a: -93dBm @6Mbps, -75dBm @54Mbps |
| 802.11n 20MHz: -73dBm @MCS7, 40MHz: -70dBm @MCS7 | |
| 802.11ac 20MHz: -70dBm @MCS8, HT40: -66dBm @MCS9, 80MHz: -62dBm @MCS9 | |
| 802.11ax 20MHz: -64dBm @MCS11, 40MHz: -61dBm @MCS11, 80MHz: -58dBm @MCS11, 160MHz: -54dBm @MCS11 | |

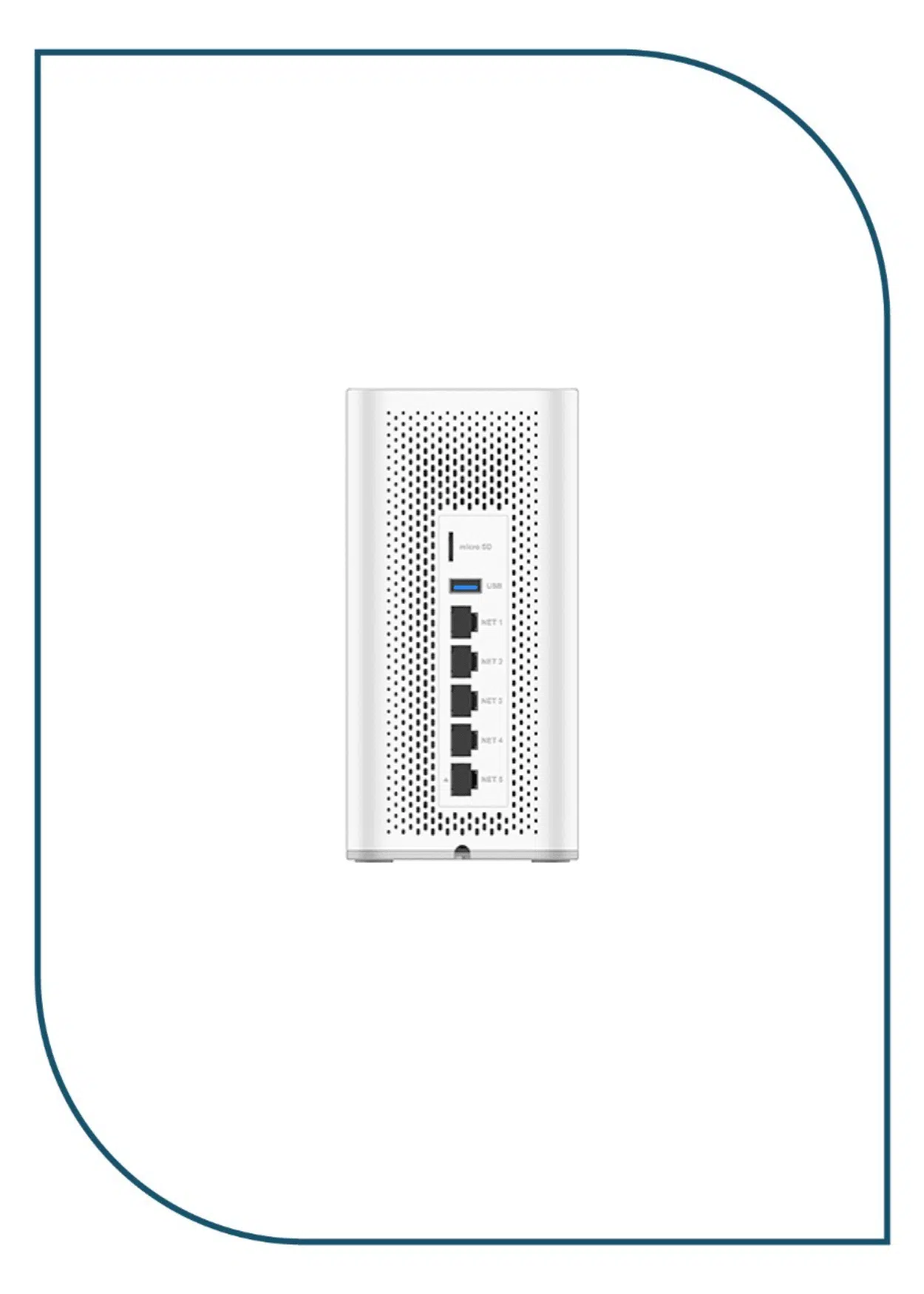

| Network Ports | 5x Gigabit Ethernet ports (WAN/LAN configurable, max 3 WAN) |
| Auxiliary Ports | 1x Micro-SD, 1x USB 3.0, 1x Reset |
| Memory | 2GB RAM, 32GB eMMC Flash |
| External Storage | Not available |
| Router Throughput | 3 Gbps |
| IPsec VPN Throughput | 1 Gbps |
| NAT Sessions | 160,000 |
| IDS/IPS Throughput | 900 Mbps |
| PBX | 12 users, 4 concurrent calls (default) Upgrade options available |
| Mounting | Desktop |
| Material | Plastic Mini-Tower |

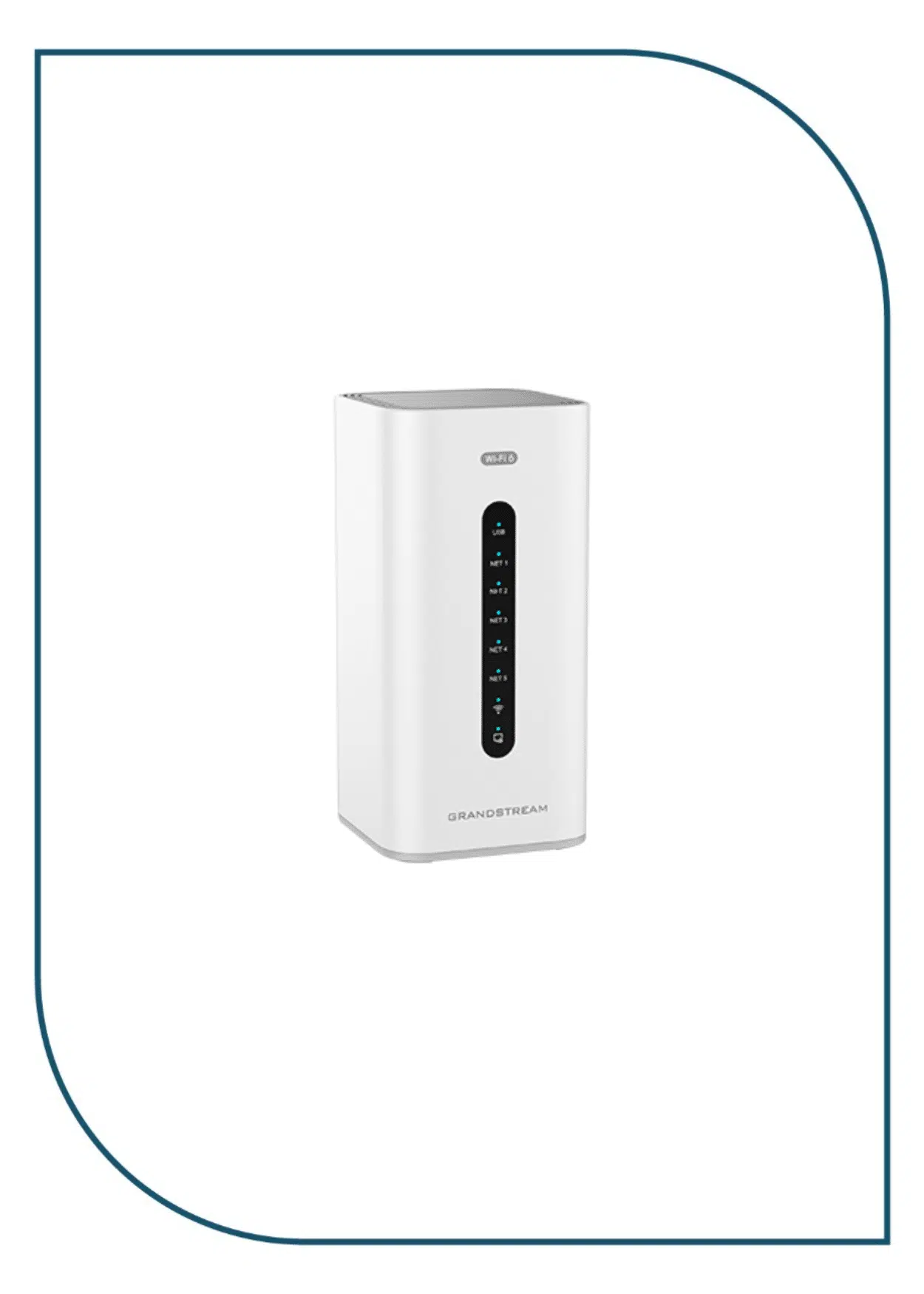

| LEDs | 8 LEDs for device tracking and status indication |
| Connection Types | DHCP, Static IP, PPPoE |
GCC6010WÂ Package Content
Wi-Fi Access Point (GCC6010W only)
• Up to 500+ concurrent Wi-Fi client devices
• Dual-band (2.4 GHz and 5 GHz)
• 802.11 a/b/g/n/ac/ax wireless standards
• Wireless intrusion detection and prevention
• Virtual access point
• Captive portals
