Description

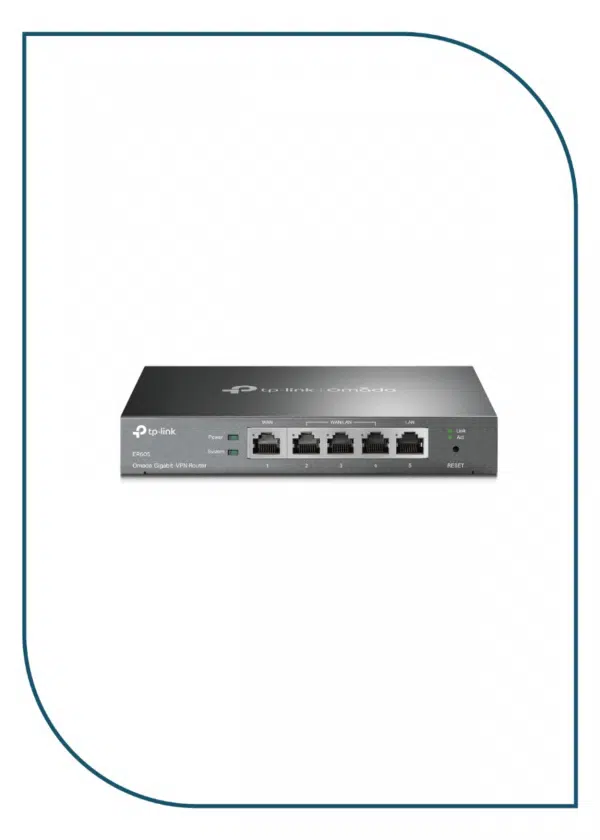

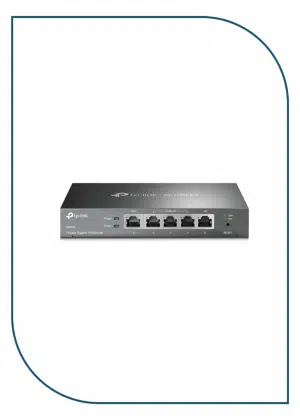

ER605
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering§
URL Filtering Web Security§ |
| ARP Inspection | • Sending GARP Packets§
• ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | External 9V/0.85A DC Adapter |
| PoE Budget | – |
| Flash | SPI 16MB |
| DRAM | 128 MB |
| LED | PWR, SYS, WAN, LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| Max Power Consumption | 7.94 W |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 25,000 |
| New Sessions /Second | 2,600 |
| NAT (Static IP) | • Upload: 945.77 Mbps
• Download: 938.79 Mbps • Bi-Directional: 1808.29 Mbps |
| NAT(DHCP) | • Upload: 945.54 Mbps
• Download: 945.66 Mbps • Bi-Directional: 1802.77 Mbps |
| NAT(PPPoE) | • Upload: 939.71Mbps
• Download: 939.43 Mbps • Bi-Directional: 1788.54 Mbps |
| NAT (L2TP) | • Upload: 815.55 Mbps
• Download: 835.59 Mbps • Bi-Directional: 903.13 Mbps |
| NAT (PPTP) | • Upload: 813.23 Mbps
• Download: 850.91 Mbps • Bi-Directional: 894.41 Mbps |
| IPsec VPN Throughput | 41.5 Mbps |
| OpenVPN | • 21.70 Mbps |
| L2TP VPN Throughput | • Unencrypted: 640.99 Mbps
• Encrypted: 77.31 Mbps |
| PPTP VPN Throughput | • Unencrypted: 759.55 Mbps
• Encrypted: 75.80 Mbps |
| SSL VPN Throughput | – |
| 66 Byte Packet forwarding rate | • Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static/Dynamic IP
• PPPoE • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server/Client
• DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* |
| IPv6 | Developing‡ |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing
• Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§
• Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall
• VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| IPsec VPN | • 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller |
| PPTP VPN | • PPTP VPN Server
• 10 PPTP VPN Clients△ • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• 10 L2TP VPN Clients△ • 16 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server*
• 10 OpenVPN Clients*△ • 16 OpenVPN Tunnels* |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication
• Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius*） • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Time Setting
• Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Gigabti VPN Router ER605
• Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| System Requirements | Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
