Description

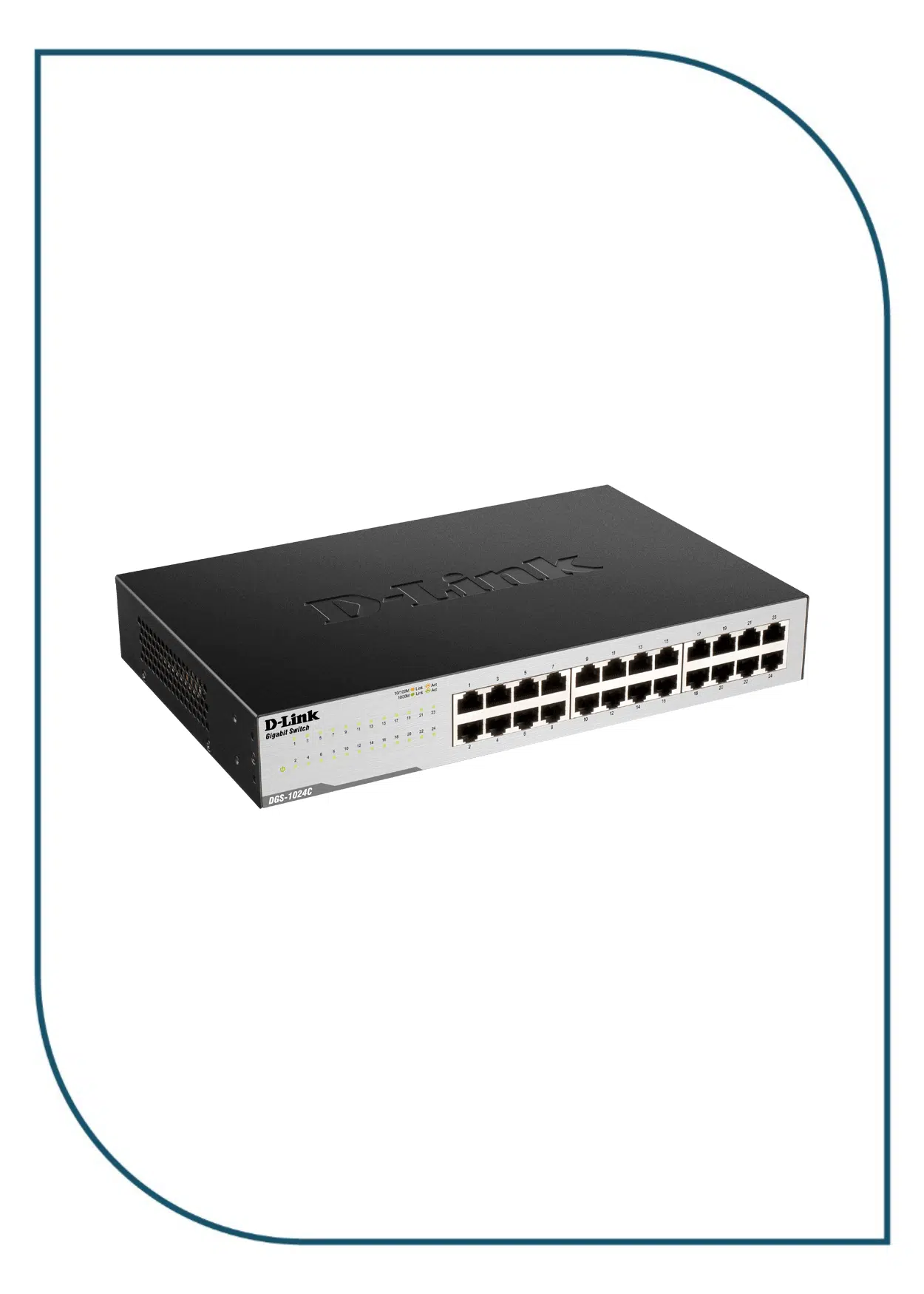

DGS-1024C
The DGS-1016C and DGS-1024C 10/100/1000 Mbps Unmanaged Switches are economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity
FEATURES
- 24 Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- Auto-negotation on all ports
- Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
- Full wire-speed data transmission
- Energy-efficient design
Fast Connectivity meets Energy Efficiency
The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Conserve Energy
The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.
Reliable Plug and Play Installation
The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
DGS-1024C Specification
|
Acoustic
|
0 dB |
|---|---|
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
Dimensions
|
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.) |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operating: 10% ~ 90% RH
Storage: 5% ~ 95% RH |
|
Interfaces
|
120G CXP
24 x 1000Base-T Auto MDI/MDIX |
|
Jumbo Frame
|
9,216 Bytes |
|
MAC Address Table Size
|
16000 |
|
Maximum Forwarding Rate
|
35.712 Mpps |
|
Maximum Heat Dissipation
|
46.035 BTU/h |
|
Maximum Power Consumption
|
13.5 watts |
|
MTBF
|
247,291 hours |
|
Packet Buffer Size
|
512KBytes |
|
Power Input
|
AC:100 ~ 240 V |
|
Power Saving
|
By Cable Length
By Link Status |
|
Standby Power Consumption
|
6.5 watts |
|
Store & Forwarding Forwading
|
Yes |
|
Switch intelligence
|
Unmanaged |
|
Switching Capacity
|
48Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C
Storage: – 40 ~ 70 °C |
|
Weight
|
1.14 kgs |
