Description

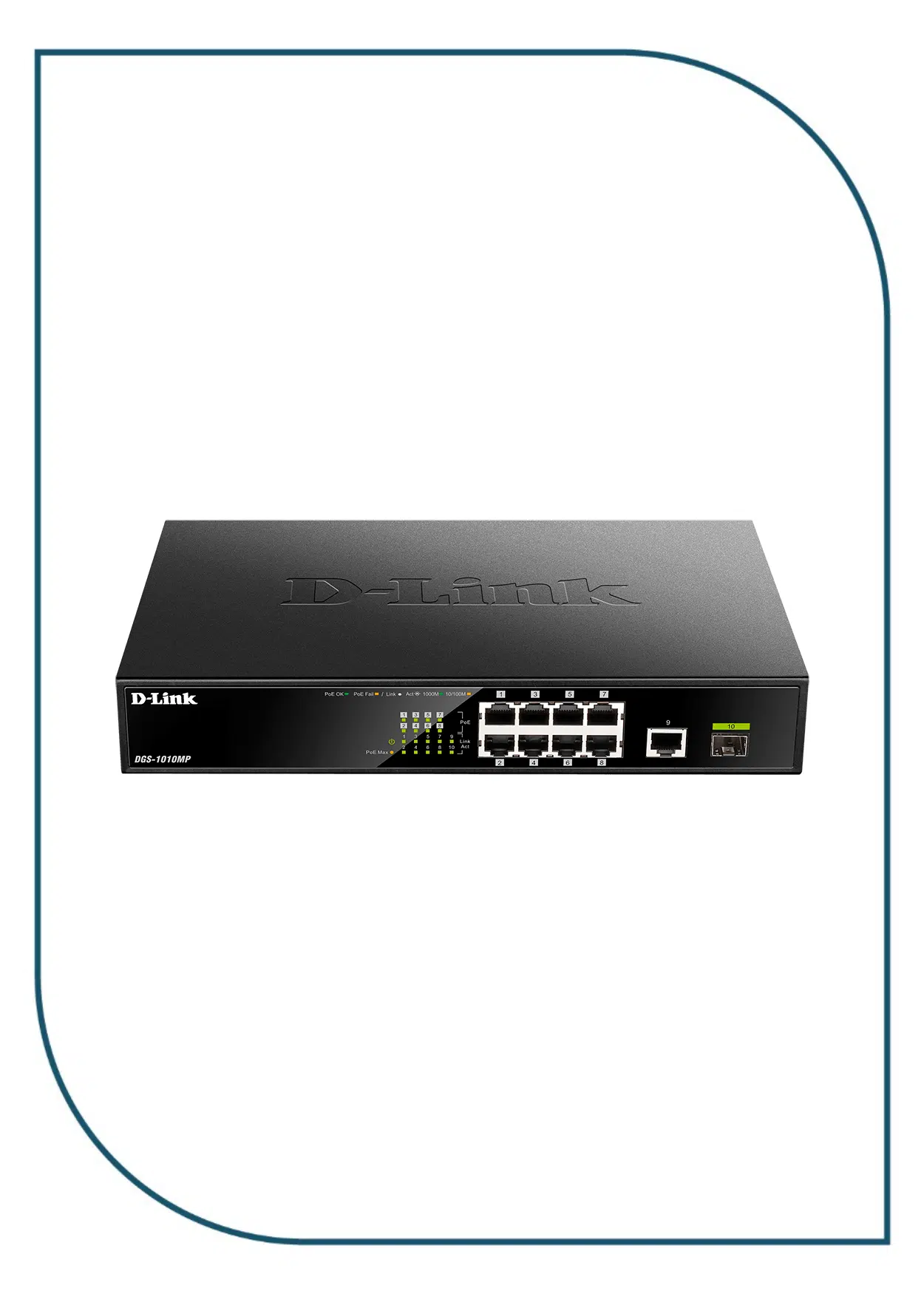

DGS-1010MP
Effortless Gigabit Network Expansion
The D-Link DGS-1010MP 10-Port Gigabit PoE Switch is an ideal solution for small offices and enterprise environments looking to expand the network with Gigabit connectivity. With eight Power over Ethernet (PoE) ports, you can power more PoE-capable cameras, access points, and VoIP phones using standard Ethernet cabling. And its one Gigabit Ethernet and one SFP uplink port allow for additional connections to storage or an uplink network.
PoE
The DGS-1010MP features eight 10/100/1000BASE-T ports that support the IEEE 802.3at Power over Ethernet (PoE) standard. This allows devices to be installed in locations without any power outlets, saving on installation costs and reducing the time it takes to install new devices.
Superior Performance
The switch features one Gigabit Ethernet and one SFP uplink port for high-speed connections to remote storage or for long distance fiber connections to an uplink network. It also incorporates store-and-forward switching to maximize network performance while minimizing packet loss during data transmission.
Compact & Silent Design
The DGS-1010MP has a compact 11” design, so that it can be deployed in any easily accessible location on the work floor, allowing you to power a set of PoE-powered devices while avoiding excessive cable clutter. The switch also has a fanless design, guaranteeing a quiet working environment.
DGS-1010MP Specification
|
Dimensions
|
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) |
|---|---|
|
FAN
|
Fanless |
|
Humidity
|
Operating: 0% – 95% RH Storage: 0% – 95% RH |
|
Interfaces
|
1 x 1000Base-T 1 x 1000M SFP 8 x 1000Base-T PoE Auto MDI/MDIX |
|
Maximum Forwarding Rate
|
14.88 Mpps |
|
Maximum Power Consumption
|
PoE on: 133.8W |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
1.5Mbits |
|
PoE Power Budget
|
125 W |
|
Power Input
|
100 to 240 V AC |
|
Switching Capacity
|
20 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: -10 – 70 ˚C |
|
Weight
|
1.84 kgs |
FEATURES
- High-speed networking with eight 10/100/1000 Mbps PoE Ethernet access ports
- One Gigabit Ethernet and one SFP uplink port for uplink connections
- Plug-and-Play installation
- Store-and-forward switching maximizes network performance
- Compact and silent design
- Green Technology
