Description

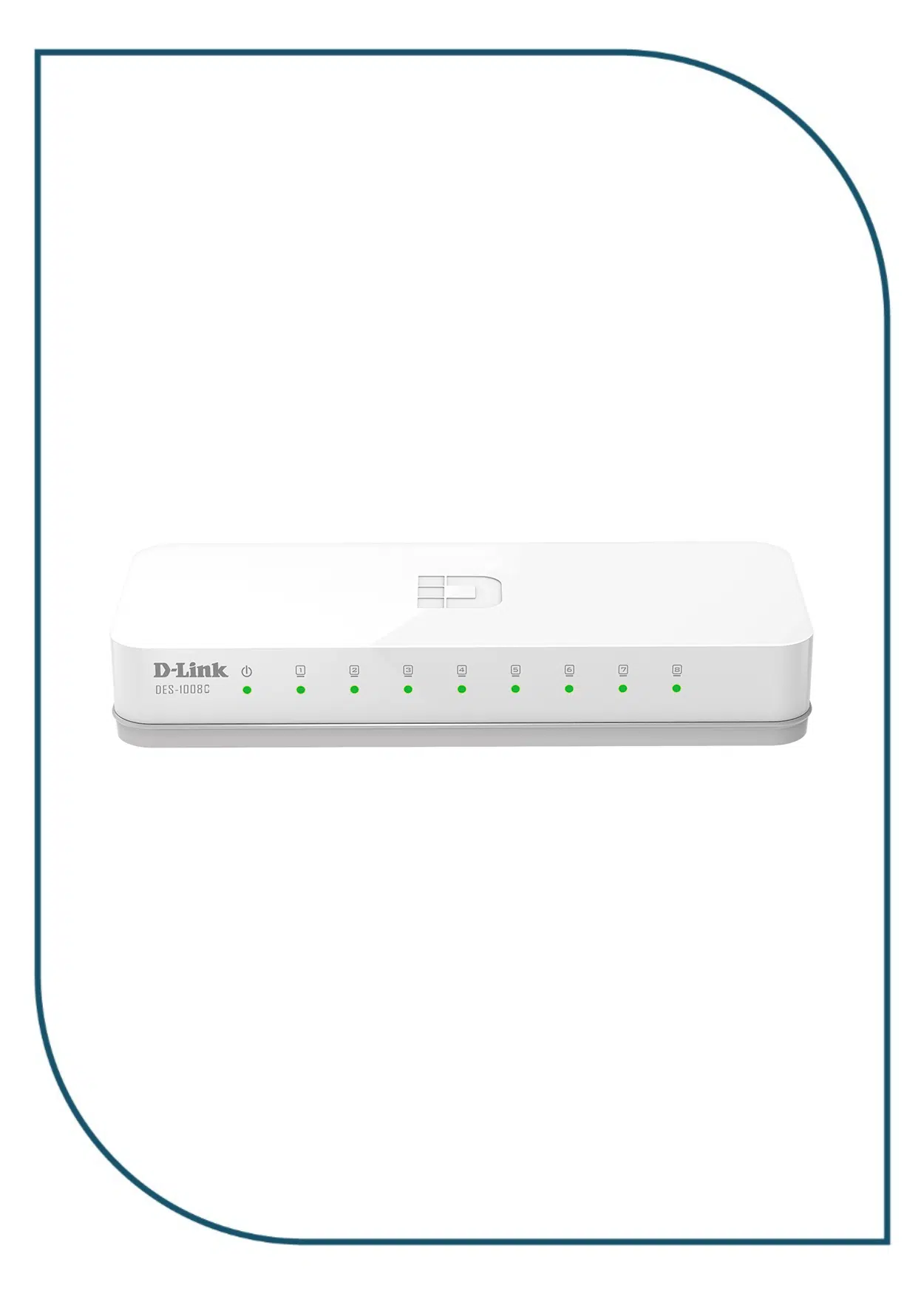

DES-1008C
Fast Networking Made Easy

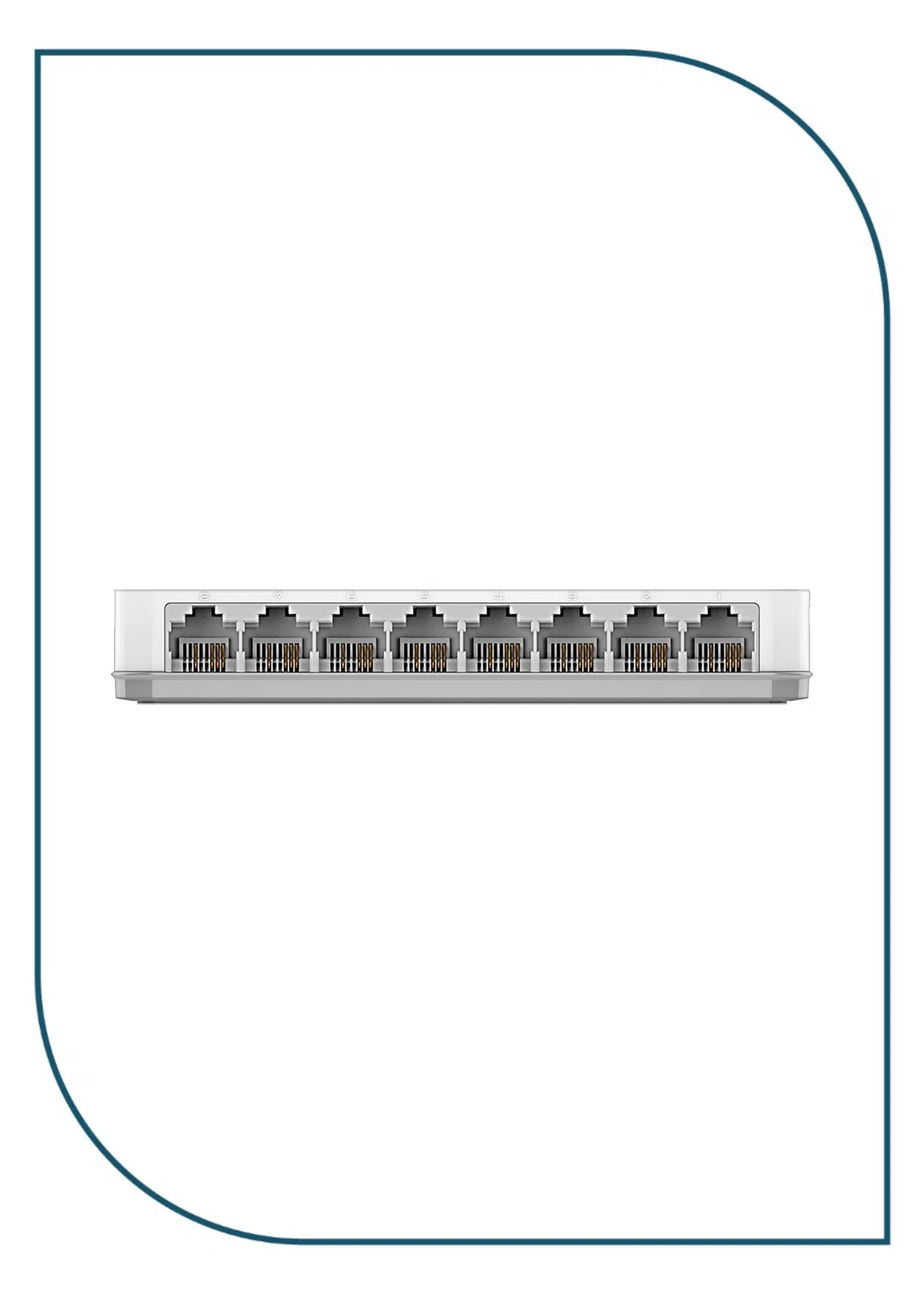

With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Economical, Plug-and-play Networking Switch
The DES-1008C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you eight 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. It can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
DES-1008C Specification
|
Auto MDI/MDIX
|
Yes |
|---|---|
|
Control
|
802.3x Flow |
|
Dimensions
|
131x54x21mm |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Interfaces
|
8 x 100Base-TX |
|
Jumbo Frame
|
2048 Bytes |
|
MAC Address Table Size
|
2,000 |
|
Max. Packet Forwarding Rate
|
1.19 Mpps |
|
Maximum Heat Dissipation
|
0.691 BTU/h |
|
Maximum Power Consumption
|
1.55 W |
|
MTBF
|
1,579,582 hours |
|
Operating Humidity
|
10% ~ 90% RH |
|
Operating Temperature
|
0 ~ 40 °C |
|
Packet Buffer Size
|
96KBytes |
|
Power Input
|
DC: 5V, 0.55A |
|
Power Saving By Link Status
|
YES |
|
Standby Power Consumption
|
0.55 watts |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Storage Temperature
|
– 40 ~ 70 °C |
|
Store & Forwarding Forwading
|
Yes |
|
Switching Capacity
|
1.6 Gbps |
|
Weight
|
742 g |
