Description

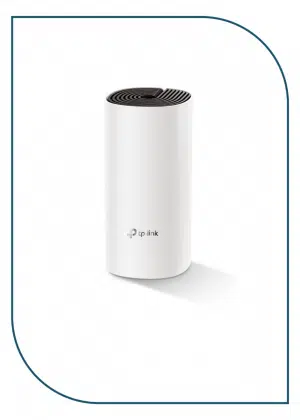

Deco E4(1-Pack)
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200
5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3-4 Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Medium
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes | Router Mode
Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall
Access Control |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal
WPA2-Personal |
| HARDWARE | |
|---|---|
| Ethernet Ports | 2× 10/100 Mbps Ports
*Per Deco Unit |
| Buttons | Reset Button |
| SOFTWARE | |
|---|---|
| Protocols | IPv4
IPv6 |
| Parental Controls | URL Filtering
Time Controls |
| WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:
<20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.6 × 3.6 × 7.5 in
(90.7 × 90.7 × 190 mm) |
| Package Contents | Deco E4 (3-pack)
1 Deco E4R Unit + 2 Deco E4S Units 1 RJ45 Ethernet Cable 3 Power Adapters Quick Installation GuideDeco E4 (2-pack) 1 Deco E4R Unit + 1 Deco E4S Unit 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation Guide |
| OTHERS | |
|---|---|
| System Requirements | Android 5.0 or later
iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
