Description
NCB-C7SFGRYR-305-LS
PRODUCT APPLICATION
- All Ethernet applications which includes
- 10/100/1000 Base T or 1000 Base TX
- 10 G Base – T
- Voice, Data , CATV & All sharing application up to 600 MHz Complied to ISO/IEC 11801, Class F cabling, IEC 61156-5

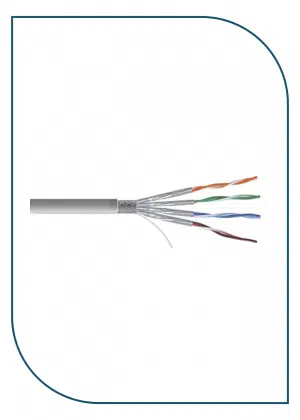

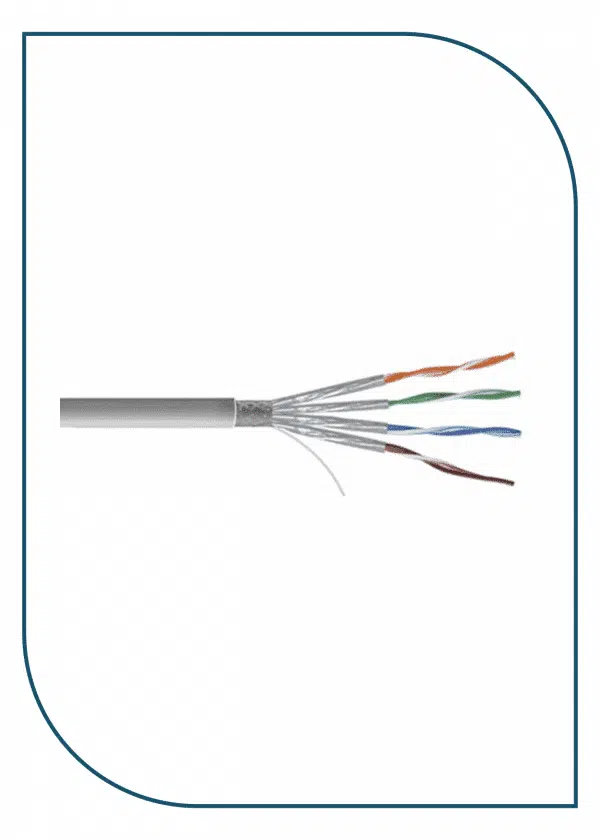

CONSTRUCTION
- Conductor: 23 AWG Solid bare Copper
- Insulation: Skin-Foam-Skin Polyethylene
- Pairs: 2 Insulated conductors twisted together
- Shield: Individual Pair Shielded with Aluminum / Polyester Foil
- Overall Shield: Tinned Copper Braiding
- Braiding Coverage: 30% nominal
- Sheath: LSZH Cable
- Diameter: 7.4 ± 0.3 mm
ELECTRICAL CHARACTERISTICS
- C Loop Resistance: < 21 W/100m
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 2% Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew : < 30nS
