Description

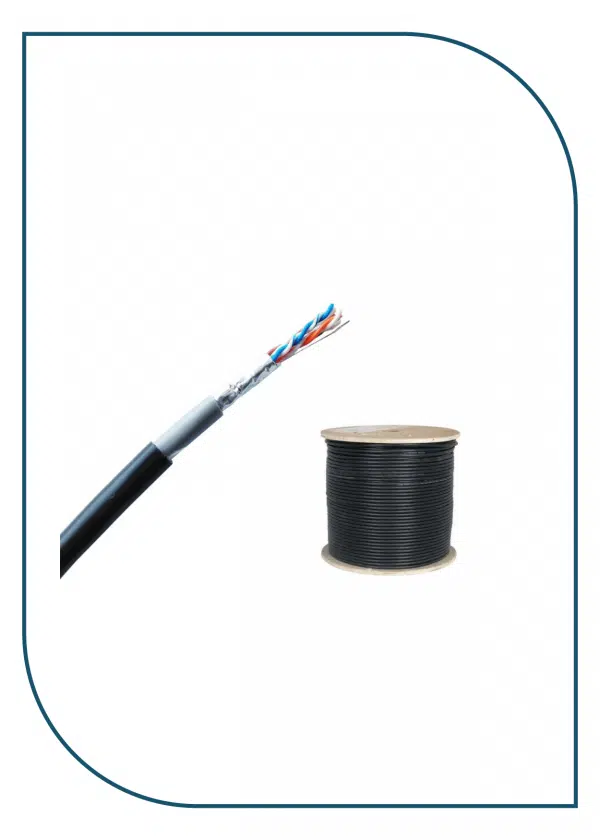

NCB-C6FOBLR-305
- 4 Pairs Foilded Twisted Pair (FTP) Cable
- Conductor Metal: Solid Bare Copper with 23 AWG
- Shield: Aluminum Polyester Foil
- Color Code: Black
- Drain Wire: 26 AWG
- Jacket Material: Double sheath, PVC Inner Sheath, UV PVC Outer Sheath
- PE Central Cross separator
SPECIFICATION
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100Ω±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: : < 9.38?/100m
- Resistance Unbalance: : 5 % Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew: : < 45nS
- Conductor Diameter: 0.560mm Nominal
- Insulation Diameter: 1.14 Nominal
- Insulation Material: HD-PE
- Cable Diameter : 8.6mm Nominal
