Description

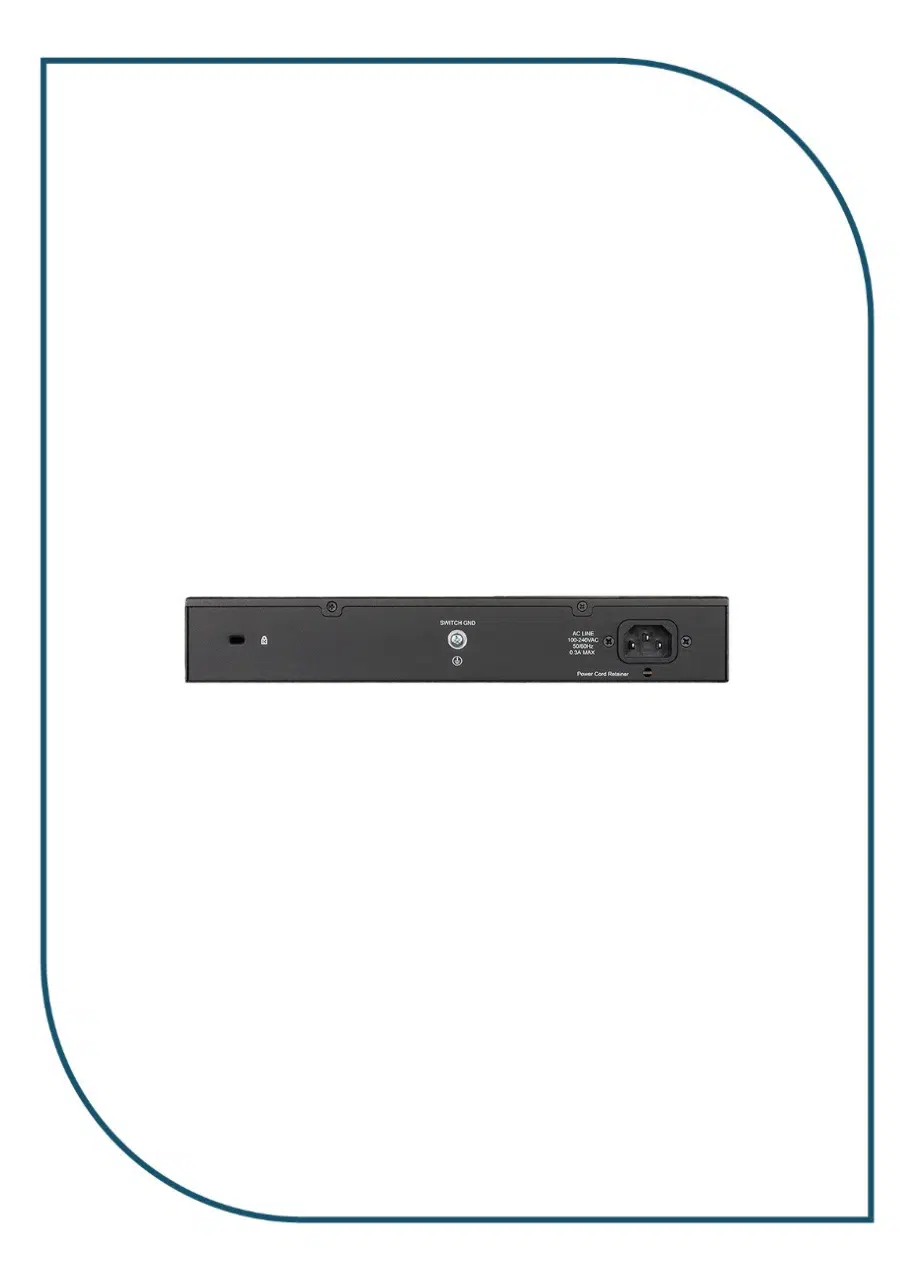

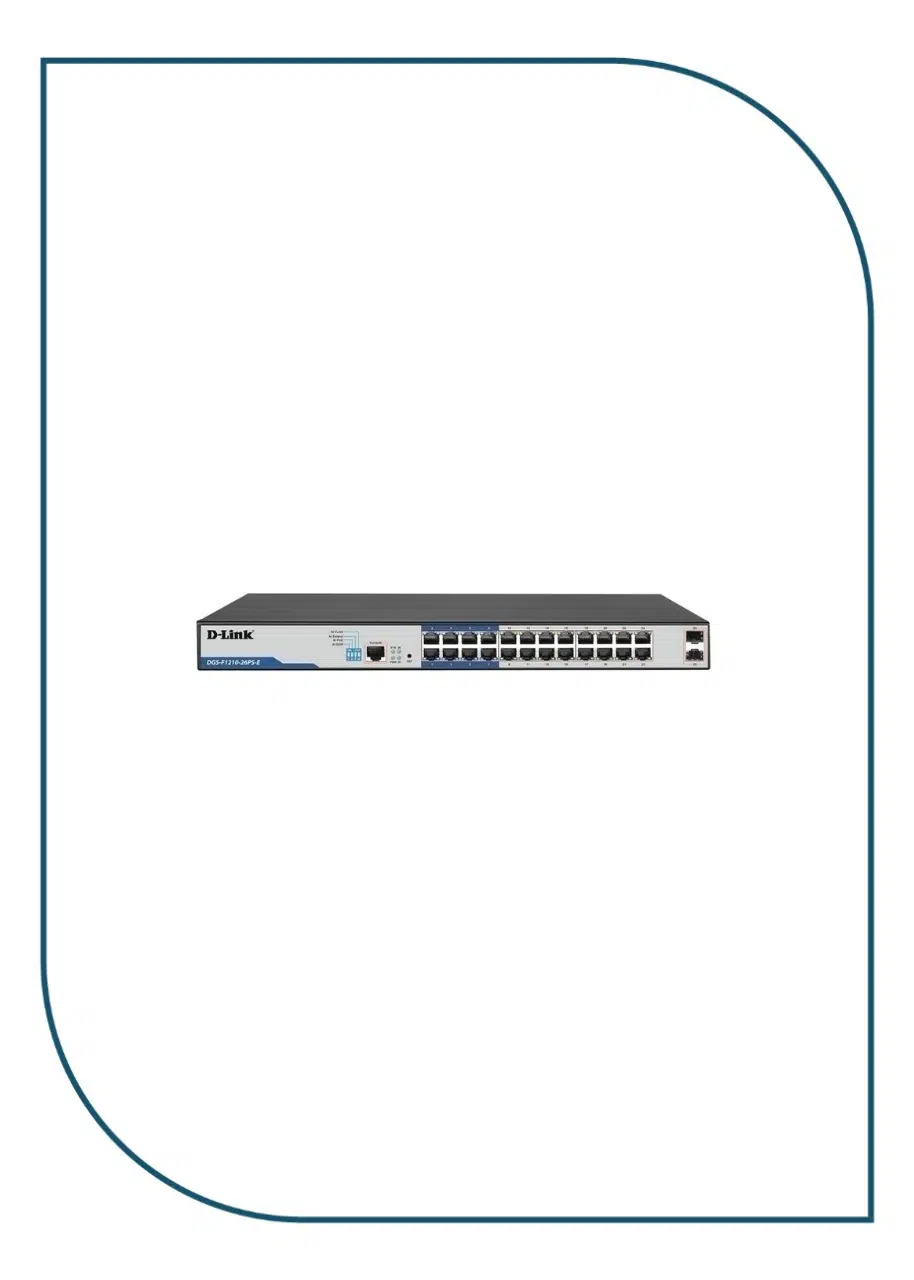

The D-Link DGS-F1210-26PS-E is a 26-port Layer 2 Smart Managed Gigabit PoE+ Switch designed for enterprise networks, IP surveillance, wireless deployments, and SMB environments. It features 24 Gigabit RJ45 PoE+ ports and 2 Gigabit SFP uplink ports, delivering both high-speed connectivity and power over Ethernet for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Supporting the IEEE 802.3af/at PoE standards, the switch provides a 250W total PoE power budget, with up to 30W per port for connected devices. It also includes Long Reach PoE (Extend Mode), allowing data and power transmission up to 250 meters on selected ports, making it ideal for CCTV and long-distance installations.
The DGS-F1210-26PS-E offers advanced Layer 2 management features including VLAN, QoS, Port Mirroring, Link Aggregation, STP/RSTP/MSTP, ERPS, and Web GUI management, providing reliable traffic control, redundancy, and network optimization. Built-in 6KV surge protection helps safeguard the switch against lightning and electrical surges, increasing network reliability in demanding environments.
Specifications
| Feature | Specification |
|---|---|
| Model | DGS-F1210-26PS-E |
| Brand | D-Link |
| Product Type | Layer 2 Smart Managed Gigabit PoE+ Switch |
| RJ45 Ports | 24 × 10/100/1000 Mbps Gigabit PoE+ |
| Uplink Ports | 2 × Gigabit SFP |
| Console Port | 1 × RJ45 Console |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Power per Port | 30W |
| Total PoE Budget | 250W |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.688 Mpps |
| MAC Address Table | 8K Entries |
| VLAN Support | Yes |
| QoS | Yes |
| Port Mirroring | Yes |
| Link Aggregation | Yes |
| Spanning Tree | STP / RSTP / MSTP |
| Long Reach PoE | Up to 250 m (Extend Mode) |
| Lightning Protection | 6KV |
| Management | Web GUI, Console |
| Power Supply | Built-in AC, 100–240V AC |
| Dimensions | 440 × 180 × 44 mm |
| Rack Mount | Yes (1U) |
