Description

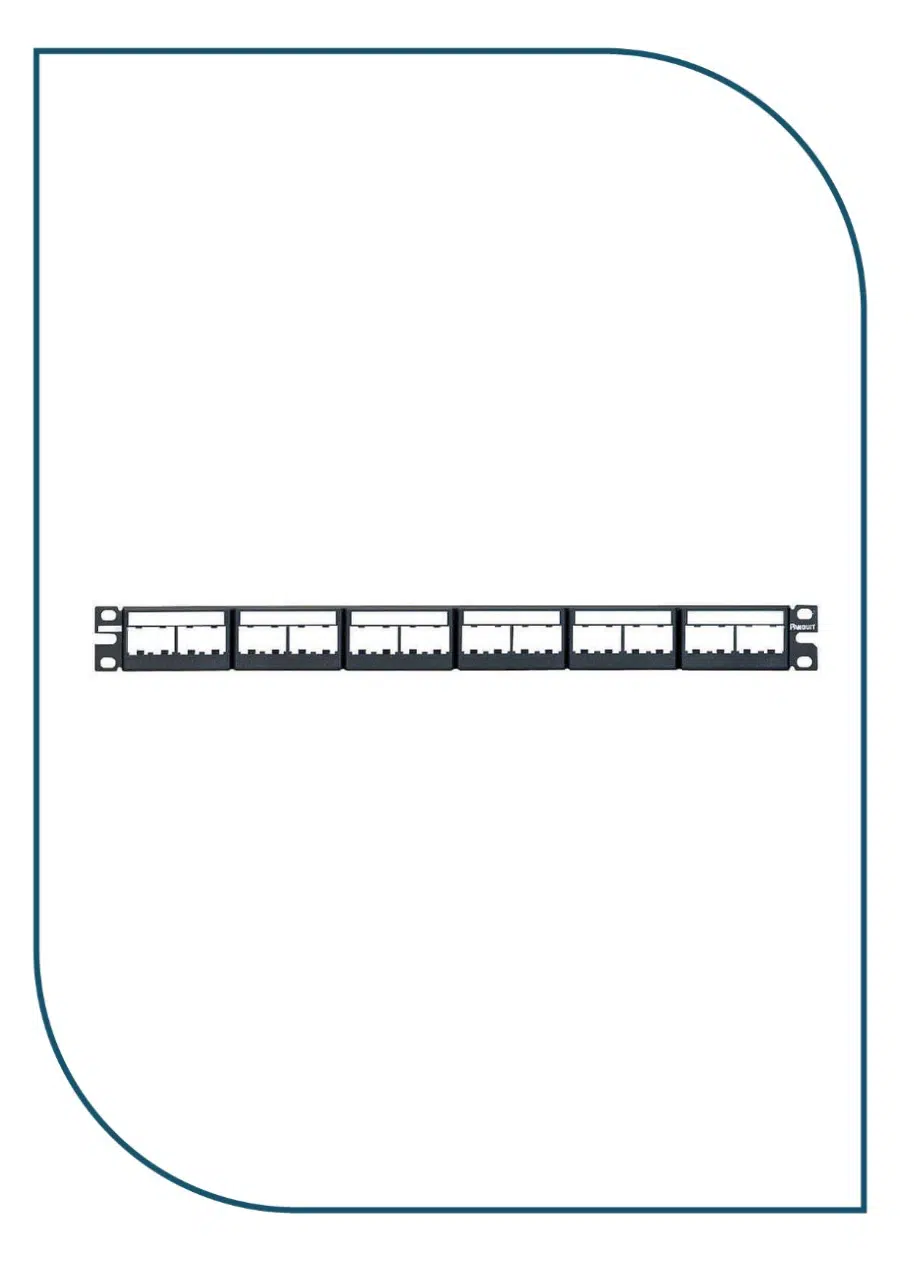

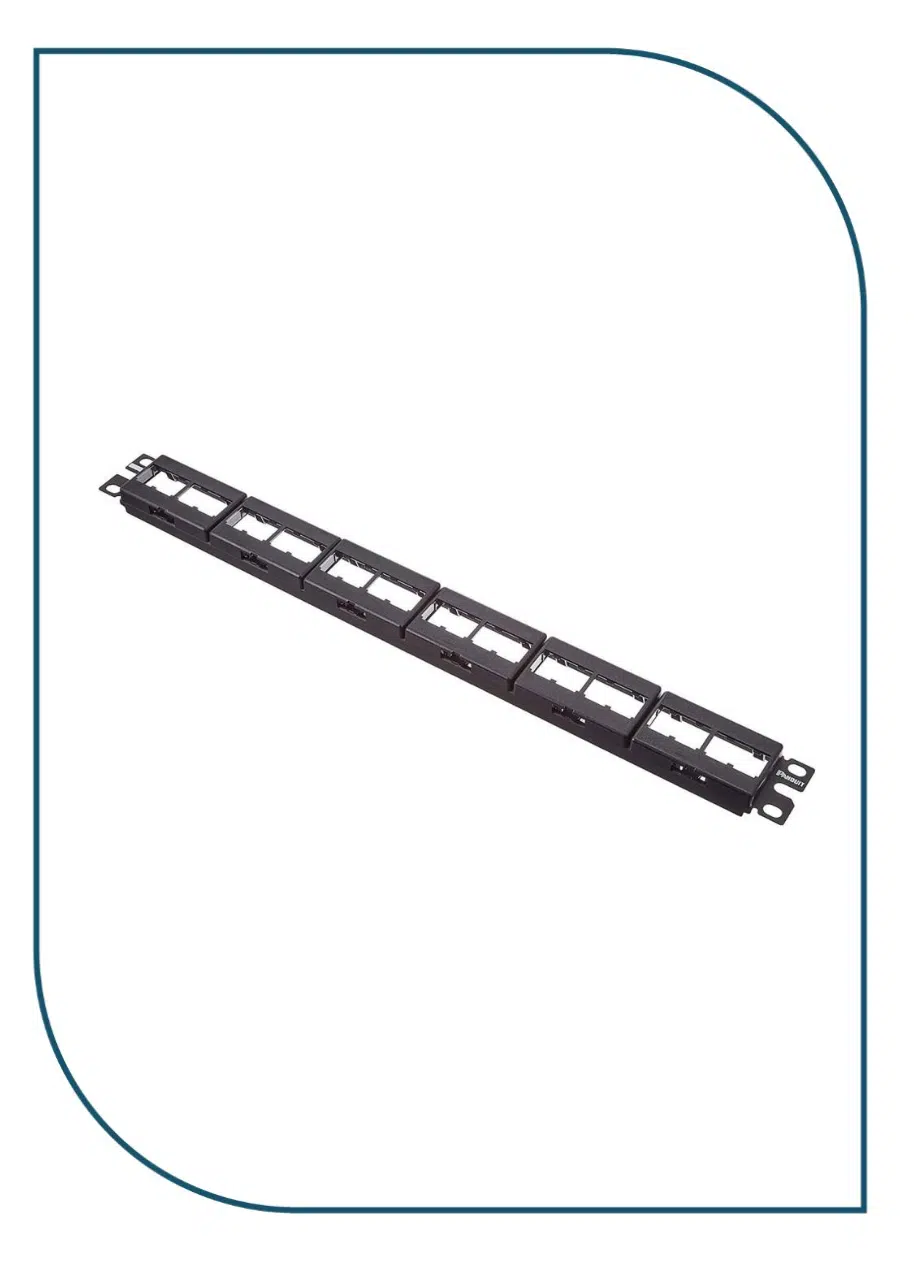

The Panduit CPP24WBLY Mini-Com® 24-Port Flat Patch Panel is a modular patching solution designed for structured cabling systems that need flexibility, easy access, and clean rack organization. This 1RU rack-mount patch panel accepts up to 24 Panduit Mini-Com® modules, allowing installers to mix copper, fiber, and multimedia connections in a single panel.
Its front-removable snap-in faceplates make moves, adds, and changes easier because installed modules can be accessed from the front of the panel without removing the whole unit. The recessed flat design helps improve cable bend radius protection and reduces interference between patch cords and cabinet doors, which is especially useful in dense rack environments.
Built from cold rolled steel and finished in black, the CPP24WBLY mounts to standard 19-inch and 23-inch racks or cabinets. It is a strong choice for enterprise LAN rooms, telecom cabinets, office networks, and multimedia patching systems where a modular unloaded patch panel is preferred.
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Part Number | CPP24WBLY |
| Product Series | Mini-Com® |
| Product Type | Modular Patch Panel |
| Panel Type | Flat Patch Panel |
| Number of Ports | 24 Ports |
| Rack Height | 1 RU |
| Mounting | 19″ / 23″ Rack or Cabinet Mount |
| Module Compatibility | Accepts Panduit Mini-Com® Modules |
| Supported Media | UTP, STP, Fiber, Audio/Video Mini-Com® modules |
| Shielding Application | Primarily for unshielded modular applications |
| Faceplates Included | 6 × CFFP4 front-removable snap-in faceplates |
| Access Style | Front-access removable faceplates |
| Material | Cold Rolled Steel panel with molded faceplates |
| Color | Black |
| Labeling | Adhesive label identification |
| Design Feature | Recessed panel design for better bend radius and reduced patch cord interference |
| Dimensions | 19 in W × 1.72 in H × 0.88 in D |
| Compliance | RoHS compliant |
| Typical Applications | Structured cabling, LAN rooms, telecom rooms, data cabinets, enterprise networks |
