Description

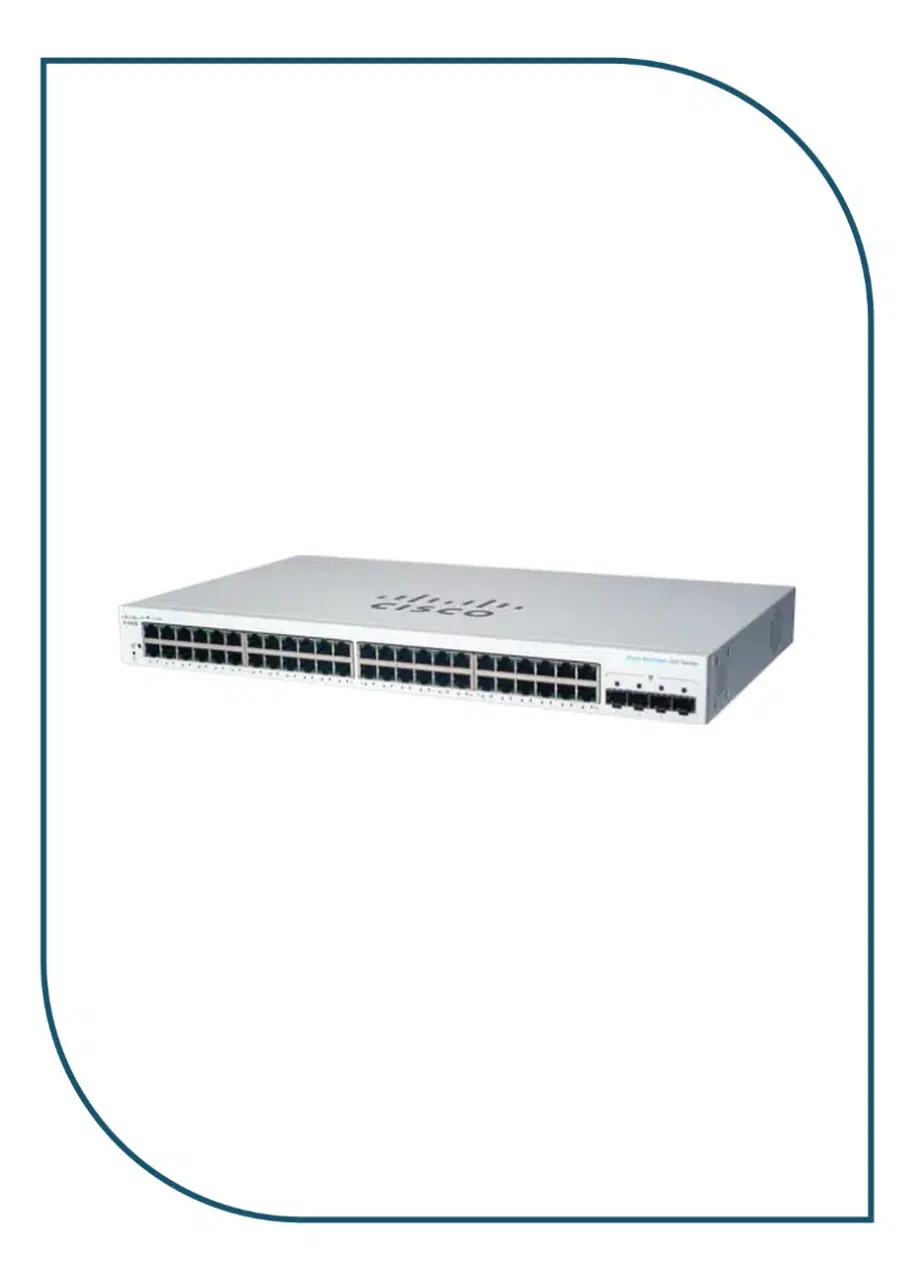

The Cisco Business CBS220-48T-4G-EU is a 48-port Gigabit smart switch for growing offices that need a lot of wired connections at a good price. It connects desktops, printers, phones and servers at Gigabit speed. Four 1G SFP uplinks link it to other switches over fiber or copper. Setup takes minutes through the simple web interface, and you can also manage it with Cisco Business Dashboard and the Cisco Business mobile app.
Key features
- 48 × Gigabit Ethernet RJ45 ports
- 4 × 1G SFP uplink ports
- 104 Gbps switching capacity, 74.38 Mpps forwarding rate
- VLANs, QoS and IGMP snooping for organized, smooth traffic
- 802.1X and MAC filtering for access security
- Web-based management plus Cisco Business Dashboard and mobile app
- Low power use: about 36 W
| Spec | Value |
|---|---|
| Part number | CBS220-48T-4G-EU |
| Series | Cisco Business 220 Smart Switch |
| Ports | 48 × 10/100/1000 RJ45 |
| Uplinks | 4 × 1G SFP |
| Total ports | 52 |
| Switching capacity | 104 Gbps |
| Forwarding rate | 74.38 Mpps (64-byte packets) |
| MAC address table | 8K |
| VLANs | Up to 256 |
| Layer | Layer 2 smart switch |
| PoE | No |
| Management | Web UI, SNMP v1/v2c/v3, Cisco Business Dashboard & app |
| Security | 802.1X, MAC filtering, SNMPv3 |
| Power consumption | ~36.5 W |
| Dimensions | 440 × 257 × 44 mm (1U) |
| Weight | 3.18 kg |
| Supported SFPs | MGBSX1, MGBLX1, MGBLH1, MGBT1, GLC-SX-MMD, GLC-LH-SMD, GLC-TE |
Ideal for: offices, schools, clinics and retail branches that need many wired connections.
