Description

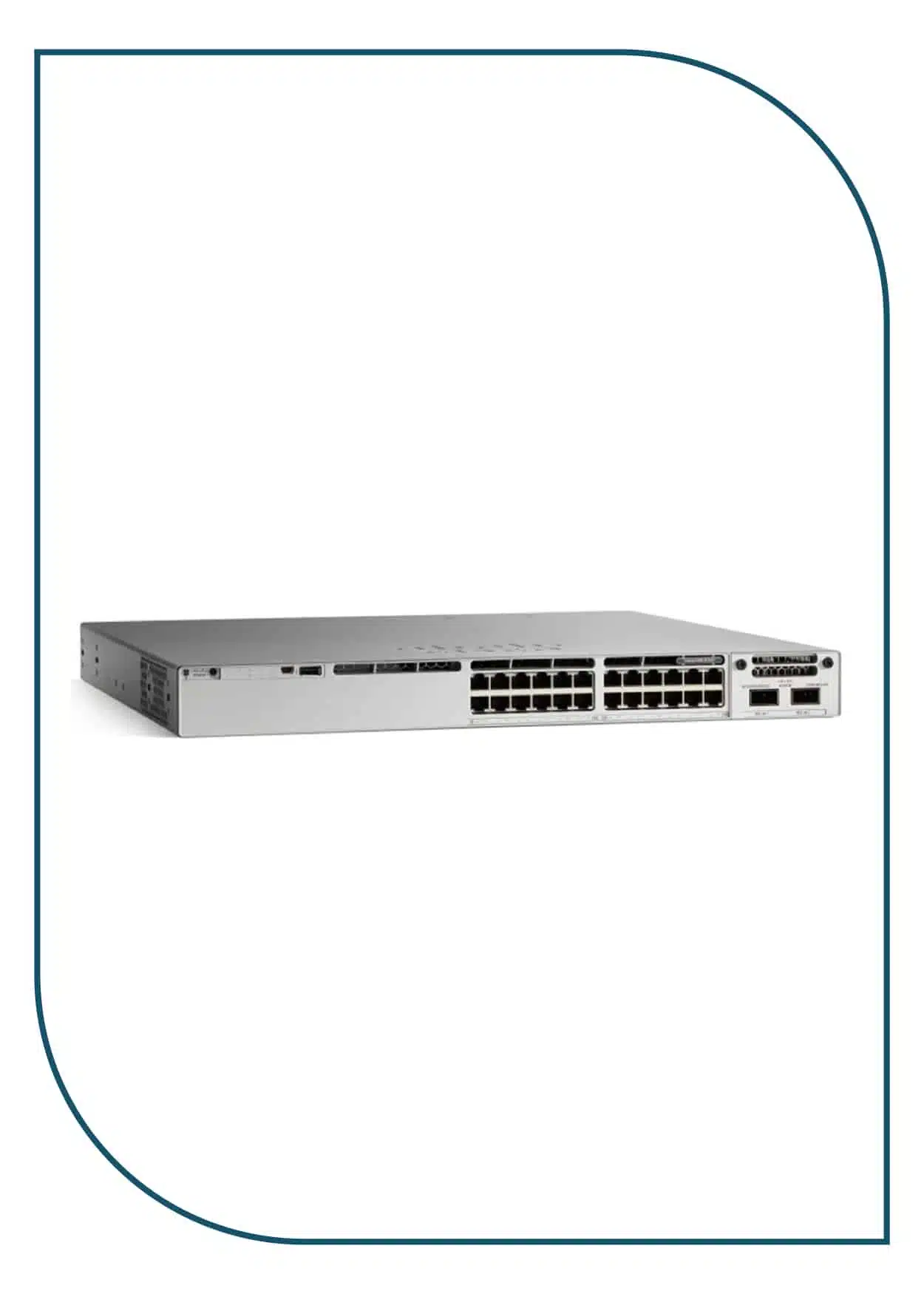

The Cisco Catalyst (C9300-24T-A) 24-Port Data Only Switch is an enterprise-grade Layer 3 managed switch designed for high-performance campus and office networks.
It delivers secure, scalable, and reliable wired connectivity with 24 Gigabit Ethernet ports, making it ideal for environments that do not require PoE.
This switch runs on Cisco IOS XE and supports advanced routing, security, automation, and analytics features under the Network Advantage license.
It is suitable for access and aggregation layers in medium to large enterprise network
| Model | C9300-24T-A |
| Series | Cisco Catalyst 9300 |
| Ports | 24 × 10/100/1000 Mbps Ethernet |
| PoE Support | No (Data Only) |
| Switching Type | Managed |
| Layer | Layer 3 |
| Uplinks | Modular uplink slots (uplink module required) |
| Network License | Network Advantage |
| Operating System | Cisco IOS XE |
| Switching Capacity | Up to 480 Gbps (with uplink module) |
| Forwarding Rate | Up to 360 Mpps |
| Stacking | Cisco StackWise (up to 8 switches) |
| Security Features | ACLs, TrustSec, Secure Boot |
| Use Case | Enterprise, offices, campus networks |
| Mounting | Rack mount |
| Power Supply | Internal (redundant PSU supported) |
