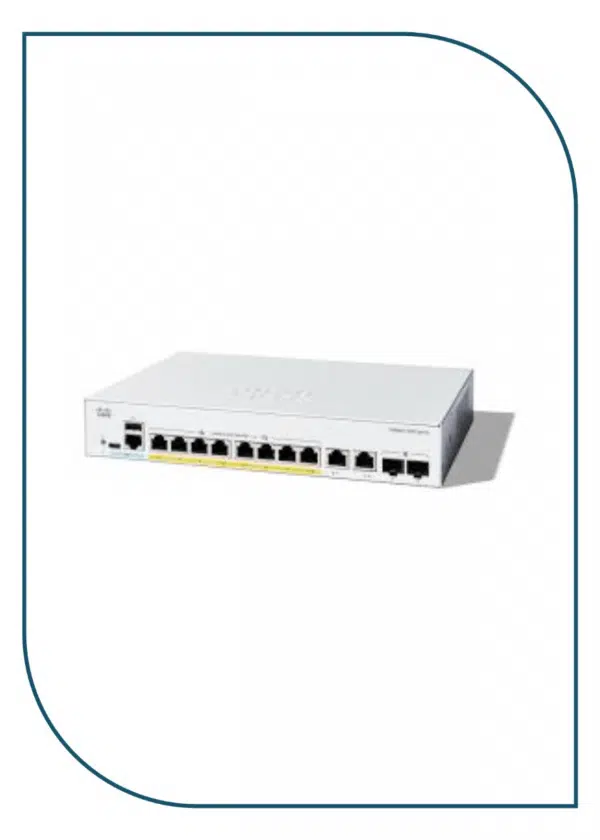

Cisco Catalyst 1200-8P-E-2G
The Cisco Catalyst 1200-8P-E-2G is an affordable smart switch designed for small and medium-sized businesses. It offers eight Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support, providing a total power budget of 67W. This allows for the connection of devices such as IP phones, wireless access points, and security cameras without the need for separate power supplies. Additionally, the switch includes two combo Gigabit SFP/RJ-45 uplink ports, offering flexible connectivity options for network expansion. It supports Layer 3 static routing, enabling efficient communication across different network segments. Management is simplified through the Cisco Business Dashboard and mobile app, providing an intuitive interface for configuration and monitoring.
The switch is rack-mountable, making it suitable for various business environments. Its energy-efficient design helps reduce operational costs while maintaining high performance and reliability.
Specifications:
| Specification | Details |
|---|---|
| Total System Ports | 10 Gigabit Ethernet ports |
| RJ-45 Ports | 8 Gigabit Ethernet PoE+ ports |
| Combo Ports | 2 Gigabit Ethernet combo ports (RJ-45 + SFP) |
| Power over Ethernet | Supports PoE+ with a total power budget of 67W, providing up to 30W per port |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Unit Dimensions | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
| Unit Weight | 1.53 kg (3.37 lb) |
| Power Supply | External, universal 100 to 240V AC, 50 to 60 Hz |
| Operating Temperature | -5° to 50°C (23° to 122°F) |
| Storage Temperature | -25° to 70°C (-13° to 158°F) |
| Operating Humidity | 10% to 90%, relative, noncondensing |
| Storage Humidity | 10% to 90%, relative, noncondensing |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
