Description

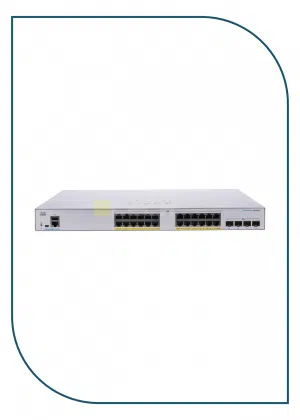

CBS350-24FP-4G-EU
Key Features
- 24 x POE+ Gigabit Ports
- 4 x 1GbE SFP Ports
- 56 Gb/s Switching Capacity
- 41.66 MPPS Forwarding Rate
Interfaces
| Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) POE+ 4 x 10/100/1000 Mb/s Gigabit SFP 1 x Mini-USB (Console) |
Protocols
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | Head-of-Line (HOL) Blocking IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
Security
| Security Features | D0S Attack Prevention RADIUS Authentication Storm Control |
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
Standards
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate | 41.66 MPPS |
| Switching Bandwidth | 56 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 1.5 MB |
Computer
| Flash Memory | 256 MB |
| Memory | 512 MB |
| OS Compatibility | Windows macOS Linux *As of November, 2021: check with manufacturer for the most up-to-date compatibility |
Electrical
| Power Draw | 449.7 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| P0E Power Budget | 370 W |
| POE per Port | 30 W |
| Power Supply Type | Internal |
Environmental
| Operating Temperature | 23 to 122°F / -5 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 34.8 dB |
General
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 698,220 Hours |
| Indicator Lights | Link/Activity, POE, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.5 x 13.6 x 1.7″ / 445 x 345 x 44 mm |
| Weight | 10.1 LB / 4.6 kg |
Packaging Info
| Package Weight | 14.65 LB |
| Box Dimensions (LXWXH) | 22.8 x 18.8 x 4.2″ |
