Description

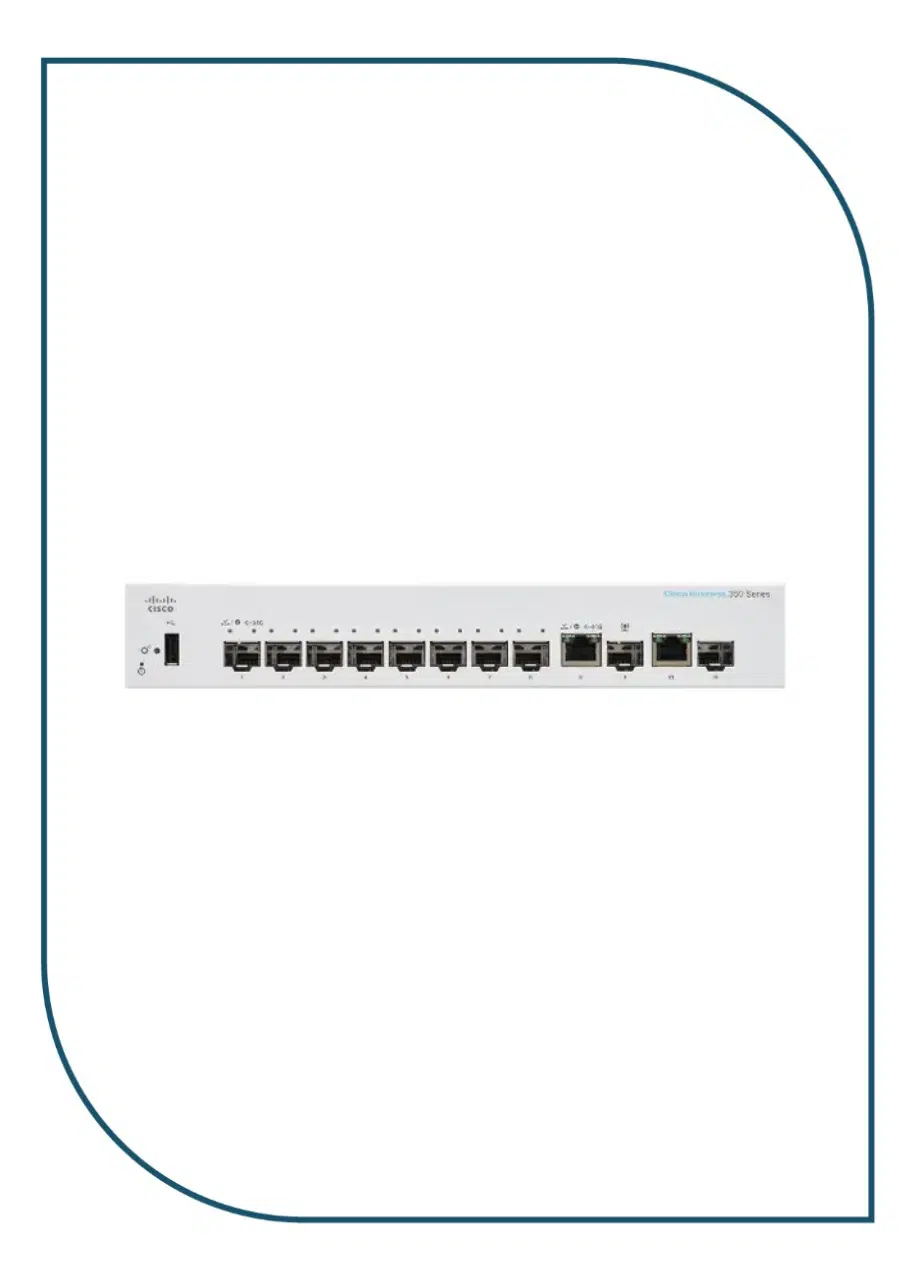

CBS350-8S-E-2G
Specification: |
|
|
Feature |
Description |
|
Capacity in Millions of Packets per Second (mpps) (64-byte packets) |
14.88 |
|
Switching Capacity in Gigabits per Second (Gbps) |
20.0 |
|
Total System Ports |
10 x Gigabit Ethernet |
|
RJ-45 Ports |
8 x Gigabit Ethernet |
|
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) |
2 x Gigabit Ethernet combo |
|
Packet Buffer |
1.5 MB |
|
Unit dimensions (W x D x H) |
268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
|
Layer 3 |
|
|
IPv4 routing |
Wire speed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces |
|
IPv6 routing |
Wire speed routing of IPv6 packets |
|
Layer 3 Interface |
Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
|
Classless Interdomain Routing (CIDR) |
Support for classless interdomain routing |
|
RIP v2 |
Support for Routing Information Protocol version 2 for dynamic routing |
|
Policy-Based Routing (PBR) |
Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
|
DHCP Server |
Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options |
|
DHCP relay at Layer 3 |
Relay of DHCP traffic across IP domains |
|
User Datagram Protocol (UDP) relay |
Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
|
Quality of Service |
|
|
Priority levels |
8 hardware queues |
|
Scheduling |
Strict priority and Weighted Round-Robin (WRR) |
|
Rate limiting |
Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
|
Congestion avoidance |
A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
|
iSCSI traffic optimization |
A mechanism for giving priority to iSCSI traffic over other types of traffic |
|
Green (power efficiency) |
|
|
Energy Detect |
Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
|
Cable length detection |
Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
|
EEE Compliant (802.3az) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
|
Disable port LEDs |
LEDs can be manually turned off to save on energy |
|
Time-based port operation |
Link up or down based on user-defined schedule (when the port is administratively up) |
|
Time-based PoE |
PoE power can be on or off based on user-defined schedule to save energy |
|
General |
|
|
Jumbo frames |
Frame sizes up to 9K bytes. The default MTU is 2K bytes |
|
MAC table |
16K addresses |
|
Hardware |
|
|
USB slot |
USB Type-A slot on the front panel of the switch for easy file and image management |
|
Buttons |
Reset button |
|
Cabling type |
Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
|
LEDs |
System, Link/Act, PoE, Speed |
|
Flash |
256 MB |
|
CPU |
800 MHz ARM |
|
DRAM |
512 MB |
|
CBS350-8S-E-2G Environmental |
|
|
Storage temperature |
-13° to 158°F (-25° to 70°C) |
|
Operating humidity |
10% to 90%, relative, noncondensing |
|
Storage humidity |
10% to 90%, relative, noncondensing |
|
Warranty |
Limited lifetime with next business day advance replacement (where available) |
