Description

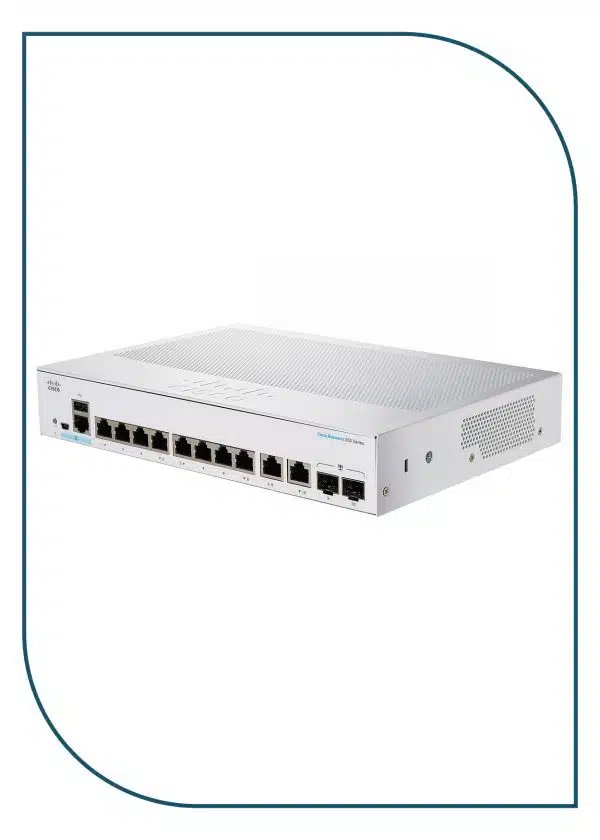

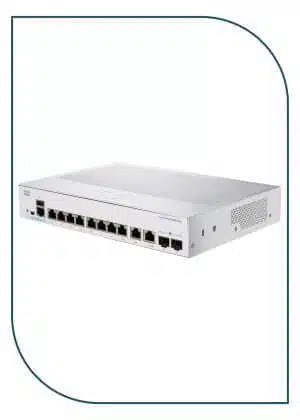

The Cisco CBS350-8P-2G is part of the Cisco Business 350 Series, providing enterprise-grade networking features for small and medium-sized businesses. Equipped with 8 Gigabit Ethernet PoE+ ports and 2 Gigabit Combo uplink ports (RJ45/SFP), it offers flexible connectivity options for modern business environments.
With support for IEEE 802.3af/at PoE+, the switch can power IP phones, wireless access points, surveillance cameras, and IoT devices directly through Ethernet cables, simplifying installation and reducing infrastructure costs.
The CBS350-8P-2G supports advanced Layer 2 switching and Layer 3 Lite capabilities, including static routing, VLAN segmentation, QoS traffic prioritization, link aggregation, multicast management, and IPv6 networking. These features improve network performance, efficiency, and scalability.
Enterprise-grade security features such as Access Control Lists (ACLs), IEEE 802.1X authentication, DoS prevention, port security, and secure management access help protect business networks against unauthorized access and cyber threats.
Its compact desktop design, silent operation, and intuitive web-based management interface make it an excellent solution for offices, retail stores, hospitality environments, schools, healthcare facilities, CCTV systems, and VoIP deployments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS350-8P-2G |
| Product Series | Cisco Business 350 Series |
| Switch Type | Managed Layer 3 Lite Switch |
| Ports | 8 × 10/100/1000 Gigabit Ethernet PoE+ |
| Uplink Ports | 2 × 1G Combo (RJ45/SFP) |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | 67W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Layer Support | Layer 2 / Layer 3 Lite |
| Routing Features | Static Routing |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Link Aggregation | Yes |
| Security Features | ACL, 802.1X, Port Security, DoS Prevention |
| IPv6 Support | Yes |
| MAC Address Table | 16K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, CLI, SNMP |
| Mounting Type | Desktop / Wall Mount |
| Cooling | Fanless |
| Power Supply | External Power Adapter |
| Application | VoIP, CCTV, Wireless Access Points, SMB Networks |
| Brand | Cisco |
Key Features
- 8 Gigabit Ethernet PoE+ ports
- 2 Gigabit Combo RJ45/SFP uplinks
- 67W PoE power budget
- Layer 3 Lite managed switching
- Advanced VLAN and QoS support
- IPv6-ready infrastructure
- Enterprise-grade security features
- Fanless silent operation
- Compact desktop design
- Ideal for VoIP, CCTV, and Wi-Fi deployments
