Description

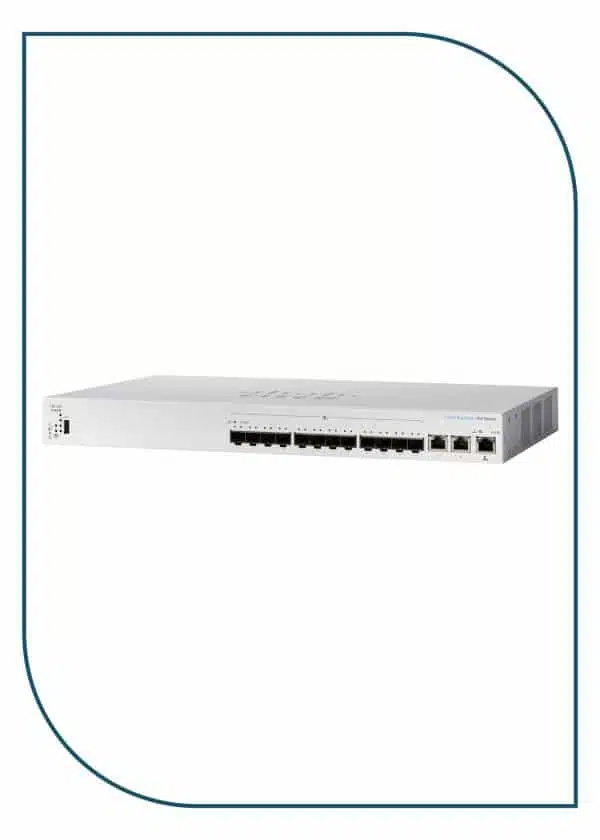

The Cisco CBS350-12XS is part of the Cisco Business 350 Series, delivering enterprise-class networking capabilities for organizations requiring high-speed fiber connectivity and advanced Layer 3 functionality. Equipped with 12 dedicated 10G SFP+ ports, including 2 shared 10G Combo ports supporting either SFP+ or 10GBase-T connectivity, the switch provides flexible deployment options for modern business infrastructures.
Built for aggregation, distribution, and high-bandwidth applications, the CBS350-12XS supports advanced Layer 3 Lite routing features including static routing, VLAN routing, traffic segmentation, and intelligent network management. These capabilities help organizations improve performance while maintaining secure and efficient network operations.
The switch includes advanced Quality of Service (QoS), Link Aggregation, IPv6 support, Access Control Lists (ACLs), and IEEE 802.1X authentication, ensuring secure and reliable network connectivity for critical business applications.
Designed with enterprise-grade reliability, the CBS350-12XS supports high-speed server connectivity, storage networking, virtualization environments, surveillance backbones, and campus aggregation networks. Its rackmount form factor and intuitive management interface simplify deployment and administration.
Ideal for enterprise campuses, data centers, server rooms, ISP deployments, virtualization environments, and high-performance business networks, the Cisco CBS350-12XS provides scalable 10 Gigabit networking with advanced management and security capabilities.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS350-12XS |
| Product Series | Cisco Business 350 Series |
| Switch Type | Managed Layer 3 Lite Switch |
| Ports | 12 × 10G SFP+ |
| Shared Ports | 2 × 10G Combo (SFP+ / 10GBase-T) |
| PoE Support | No |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.56 Mpps |
| Layer Support | Layer 2 / Layer 3 Lite |
| Routing Features | Static Routing, Inter-VLAN Routing |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Link Aggregation | Yes |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 16K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, CLI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Active Cooling |
| Power Supply | Internal |
| Form Factor | 1U Rack |
| Application | Aggregation, Data Center, Enterprise Networks |
| Brand | Cisco |
Key Features
- 12 dedicated 10G SFP+ ports
- 2 shared 10G Combo uplink interfaces
- Layer 3 Lite managed switching
- Advanced static routing capabilities
- High-performance 10 Gigabit networking
- IPv4 and IPv6 support
- Advanced QoS and traffic management
- Enterprise-grade security features
- Rackmount deployment design
- Ideal for aggregation and server connectivity
