Description

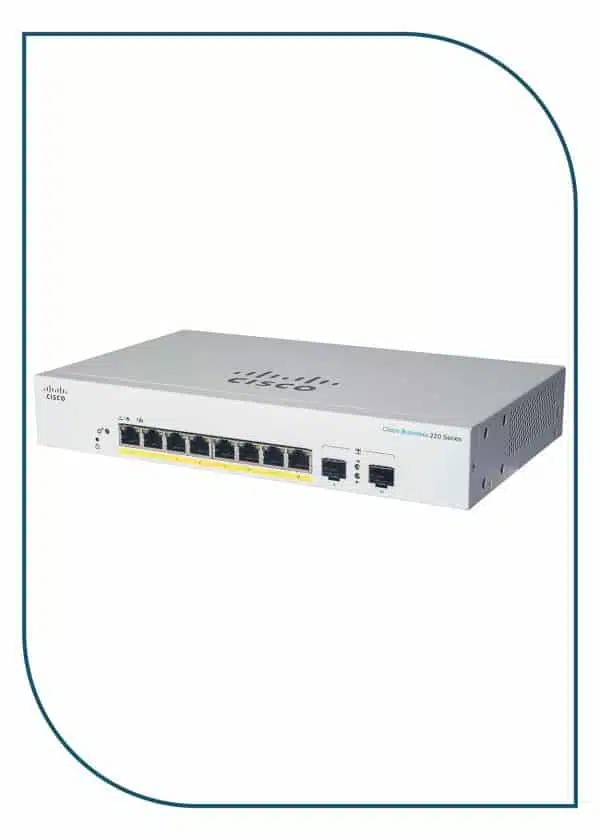

The Cisco CBS220-8T-E-2G-EU is part of the Cisco Business 220 Series, providing secure and intelligent networking for growing businesses. Equipped with 8 Gigabit Ethernet ports and 2 dedicated 1G SFP uplink ports, it offers flexible copper and fiber connectivity for modern network infrastructures.
Designed for small offices, retail stores, educational environments, hospitality deployments, and branch networks, the switch supports advanced Layer 2 switching capabilities including VLAN segmentation, QoS traffic prioritization, link aggregation, IPv6 support, and enhanced security features.
The CBS220-8T-E-2G-EU provides simple deployment and management through an intuitive web-based interface, making it ideal for businesses that require enterprise-class performance without the complexity of traditional enterprise networking solutions.
Its compact design, fanless operation, and energy-efficient architecture make it suitable for desktop or wall-mounted installations where quiet and reliable performance is essential.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-8T-E-2G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 8 × 10/100/1000 Gigabit Ethernet |
| Uplink Ports | 2 × 1G SFP |
| Total Ports | 10 |
| PoE Support | No |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Link Aggregation | Yes |
| Security Features | ACL, 802.1X Authentication |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Desktop / Wall Mount |
| Cooling | Fanless |
| Power Supply | External Power Adapter |
| Application | SMB Networks, Offices, Retail, Branch Networks |
| Brand | Cisco |
Key Features
- 8 Gigabit Ethernet ports
- 2 dedicated 1G SFP uplinks
- Smart managed Layer 2 switch
- Advanced VLAN support
- QoS traffic prioritization
- IPv6-ready infrastructure
- Enterprise-grade security features
- Fanless silent operation
- Compact desktop design
- Reliable Cisco business networking
