Description

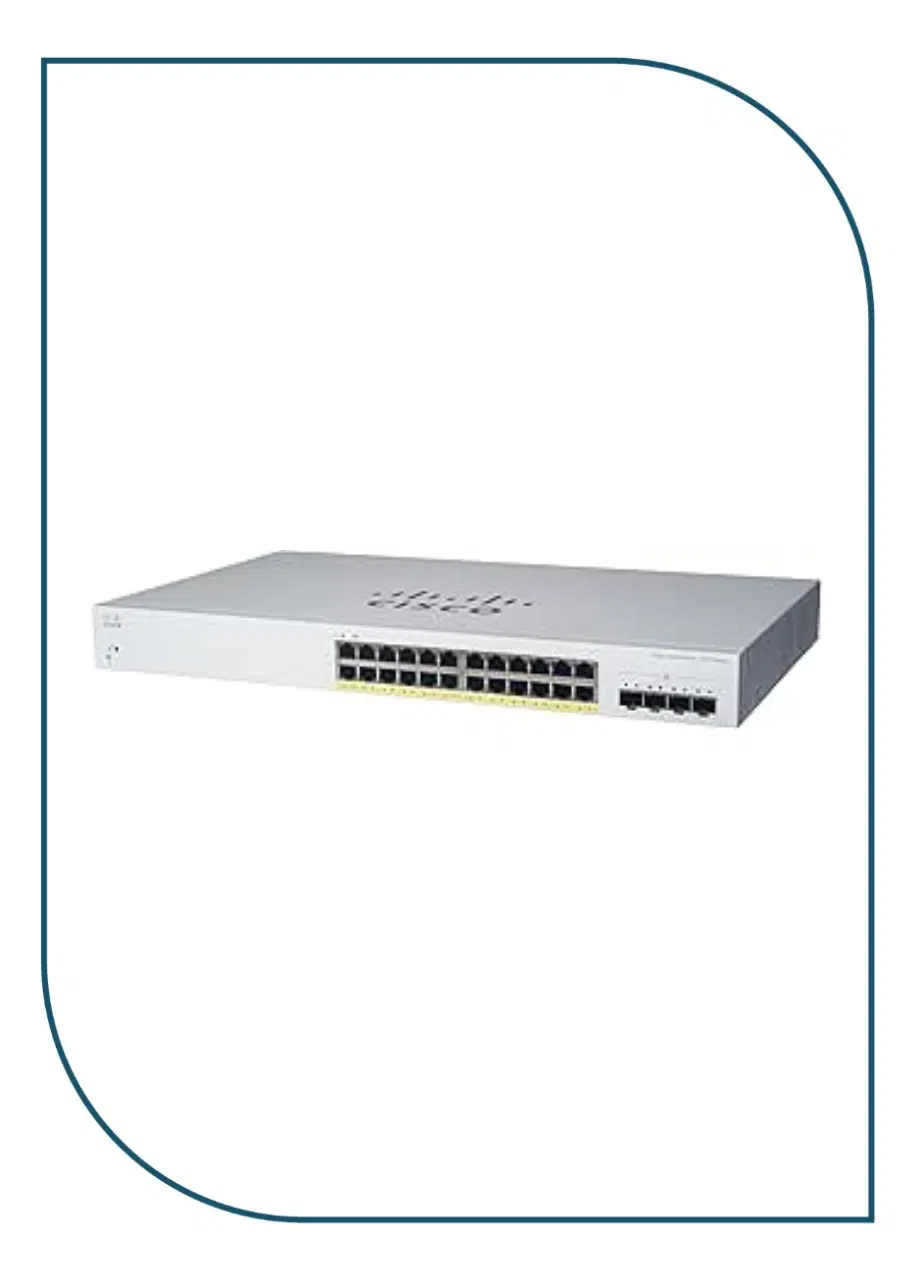

The Cisco CBS220-24P-4G-EU delivers enterprise-class networking performance with intelligent management and Power over Ethernet capabilities for modern business environments. Equipped with 24 Gigabit Ethernet PoE+ ports and 4 dedicated 1G SFP uplink ports, this switch provides scalable and secure connectivity for growing network infrastructures.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking features including VLAN segmentation, QoS traffic prioritization, IPv6 compatibility, link aggregation, ACL security policies, and intuitive web-based management tools. These capabilities help businesses optimize traffic flow while maintaining secure and stable network operations.
The integrated PoE+ functionality provides direct power delivery to IP cameras, VoIP phones, wireless access points, and IoT devices through Ethernet cables, simplifying installation and reducing infrastructure costs. With a 195W PoE budget and rackmount design, the CBS220-24P-4G-EU is ideal for offices, schools, hotels, surveillance systems, and enterprise deployments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24P-4G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power Budget | 195W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, CCTV, VoIP, Wireless APs |
| Brand | Cisco |
Key Features
- 24 Gigabit PoE+ Ethernet ports
- 4 dedicated 1G SFP uplinks
- Smart managed Layer 2 switch
- 195W PoE power budget
- VLAN and QoS support
- IPv6-ready infrastructure
- Advanced business security features
- Ideal for CCTV and VoIP deployments
- Rackmount professional design
- Reliable Cisco networking performance
