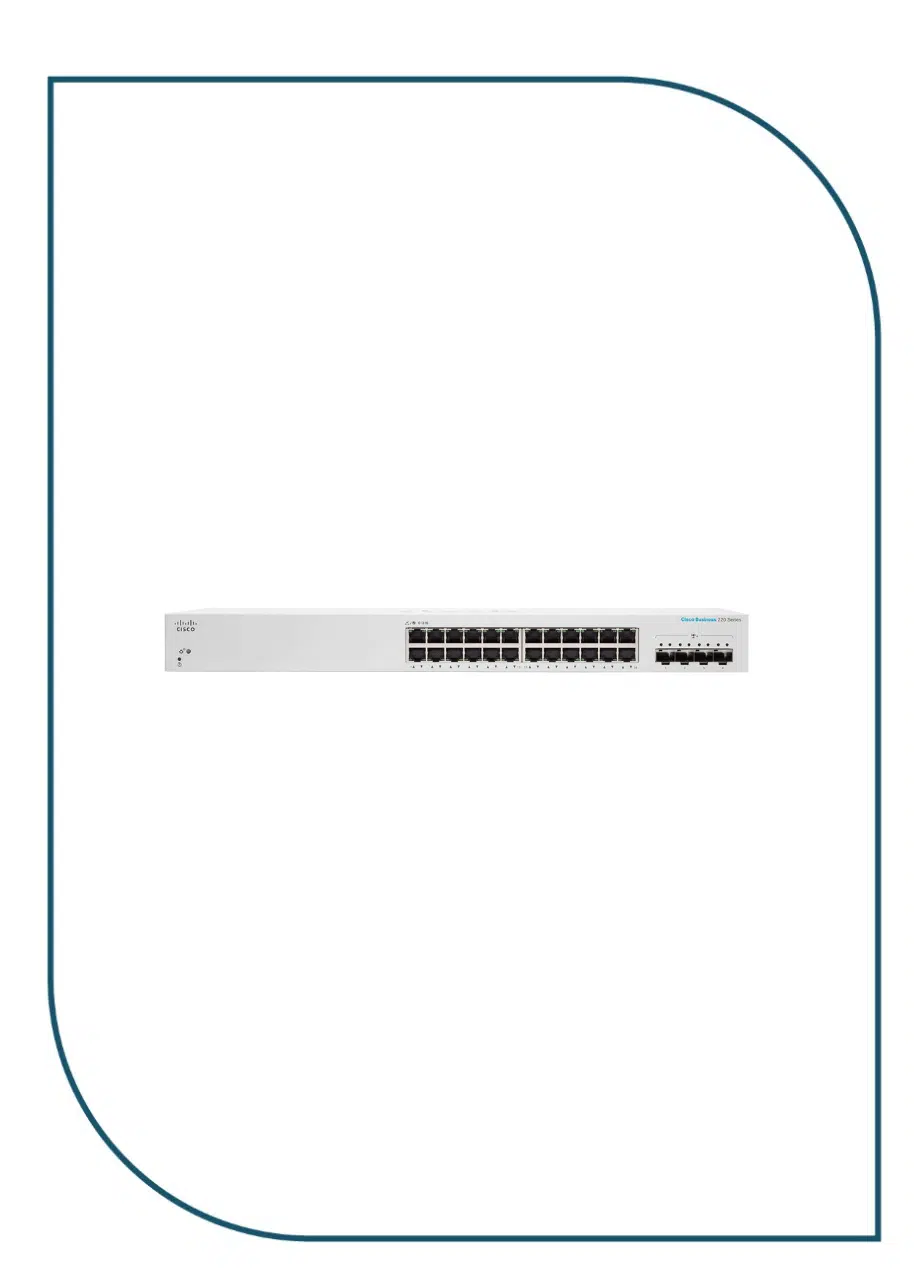

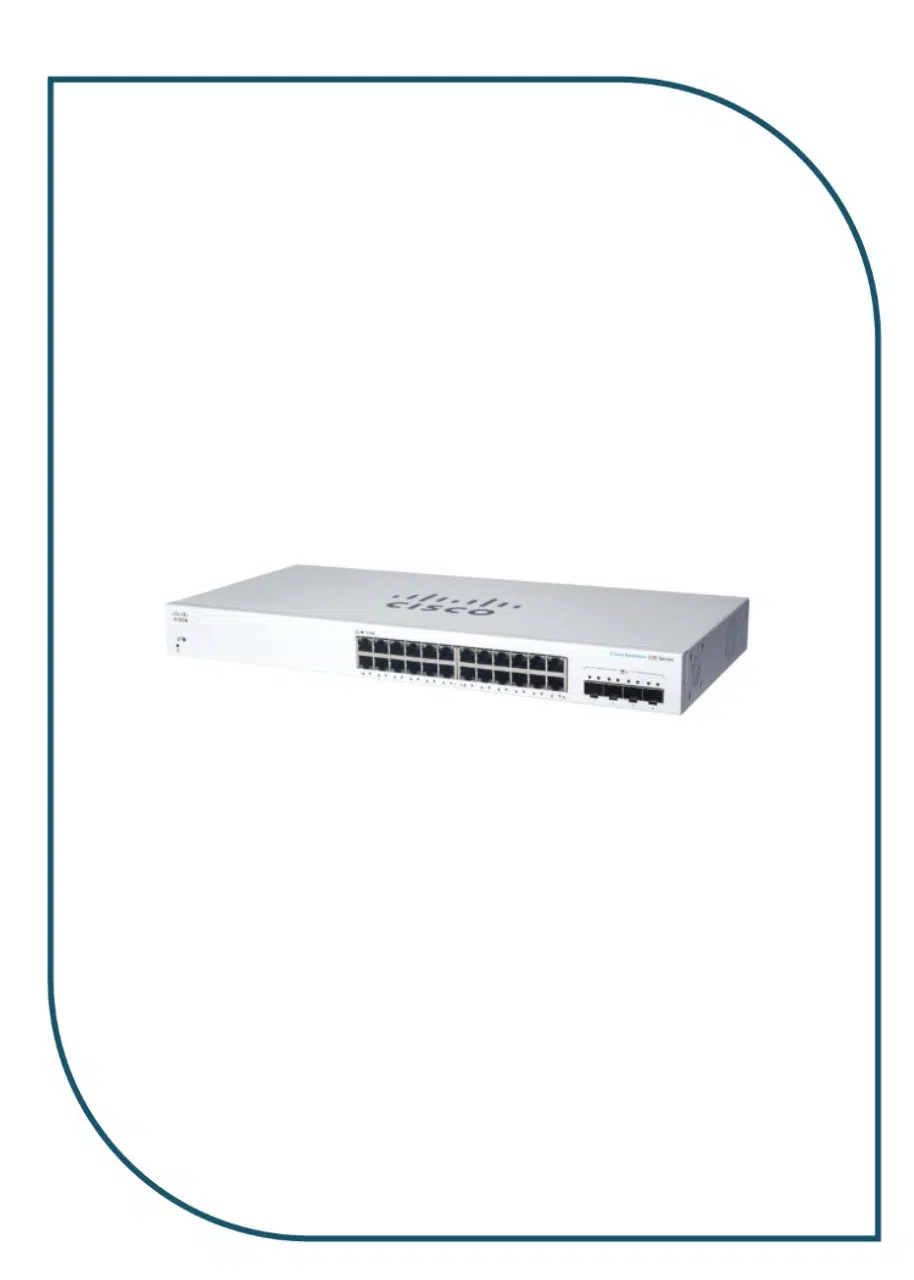

CBS220-24FP-4X-EU CBS220 Smart switch 24-port GE, Full PoE, 4x10G SFP+
CBS220-24FP-4X-EU The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks.
Description
CBS220-24FP-4X-EU
CBS220-24FP-4X-EU Specification :
| Manufacturer | Cisco |
| Model | CBS220-24FP-4X-EU |
| Type | Switch |
| Number of PoE ports | 24x [802.3af/at (1G)] |
| 10G support | Yes |
| AC input frequency | 50/60 |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power (W) | 382 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
Additional information
| Access Ports | 24 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 95.23 Mpps |
| Management Platform | Cisco Business Dashboard, Cisco Business Mobile App, Command line interface (CLI), Local Web GUI |
| Mounting Options | Rack Mount |
| POE | Support POE |
| POE Budget | |
| Switch Layer | Layer 2 |
| Switching Capacity | 128 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 10G |
