Description

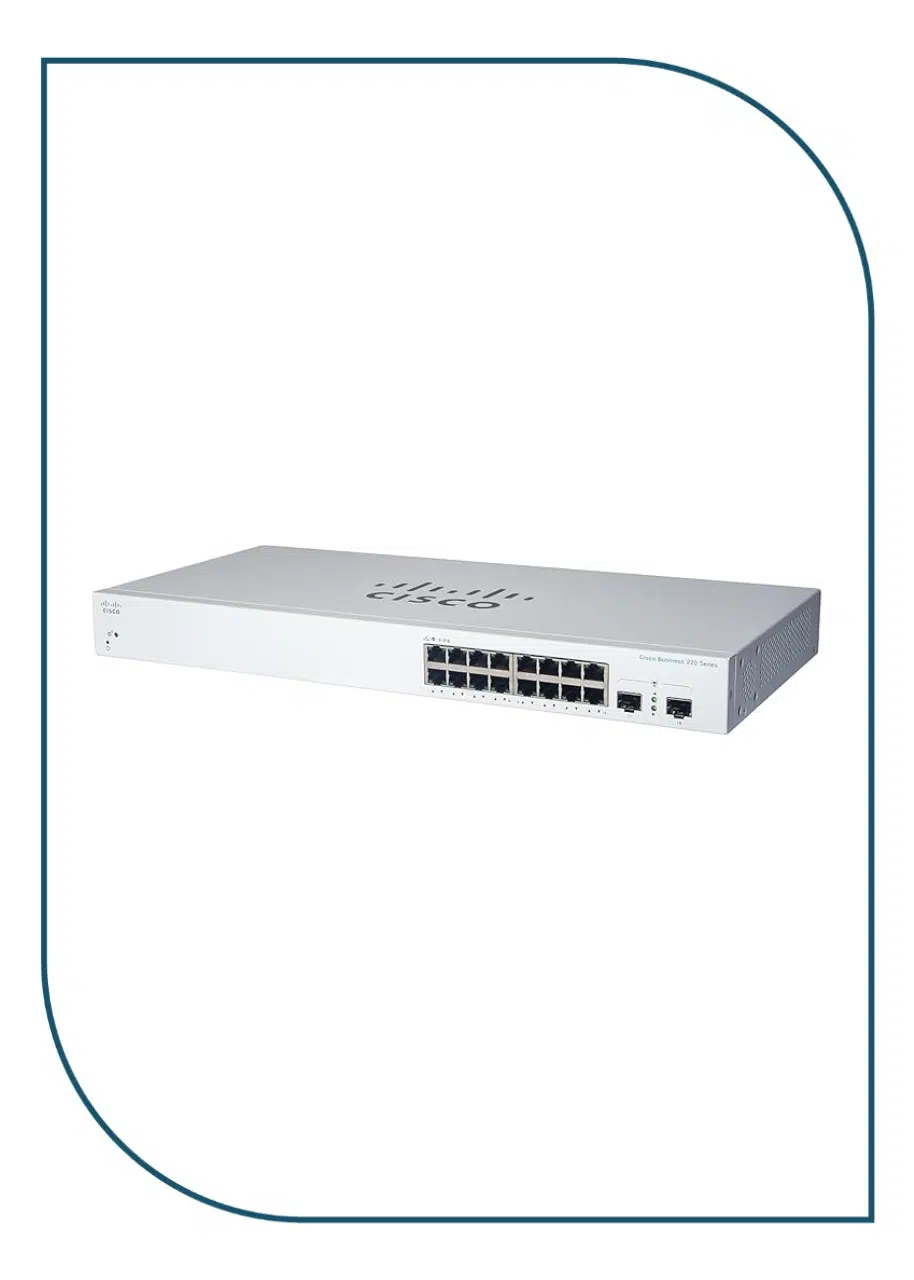

The Cisco CBS220-16P-2G-EU provides enterprise-class networking performance with intelligent management and integrated Power over Ethernet capabilities for modern business environments. Equipped with 16 Gigabit Ethernet PoE+ ports and 2 dedicated 1G SFP uplink ports, this switch offers scalable and secure network connectivity for offices, retail stores, schools, and surveillance systems.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking features including VLAN segmentation, QoS traffic prioritization, IPv6 compatibility, ACL security policies, link aggregation, and intuitive web-based management. These features help businesses optimize traffic flow while maintaining secure and stable network operations.
The integrated PoE+ functionality allows the switch to power IP cameras, VoIP phones, wireless access points, and IoT devices directly through Ethernet cables, reducing installation complexity and infrastructure costs. With a 130W PoE budget and rackmount-ready design, the CBS220-16P-2G-EU is ideal for professional networking deployments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-16P-2G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 16 × Gigabit Ethernet PoE+ |
| Uplink Ports | 2 × 1G SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power Budget | 130W |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP, CLI |
| Mounting Type | Rack Mountable |
| Cooling | Fanless |
| Power Supply | Internal |
| Application | SMB Networks, CCTV, VoIP, Wireless APs |
| Brand | Cisco |
Key Features
- 16 Gigabit PoE+ Ethernet ports
- 2 dedicated 1G SFP uplinks
- Smart managed Layer 2 switch
- 130W PoE power budget
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Fanless quiet operation
- Ideal for CCTV and VoIP deployments
- Reliable Cisco networking performance
