Description
C9500-48Y4C-A
Overview

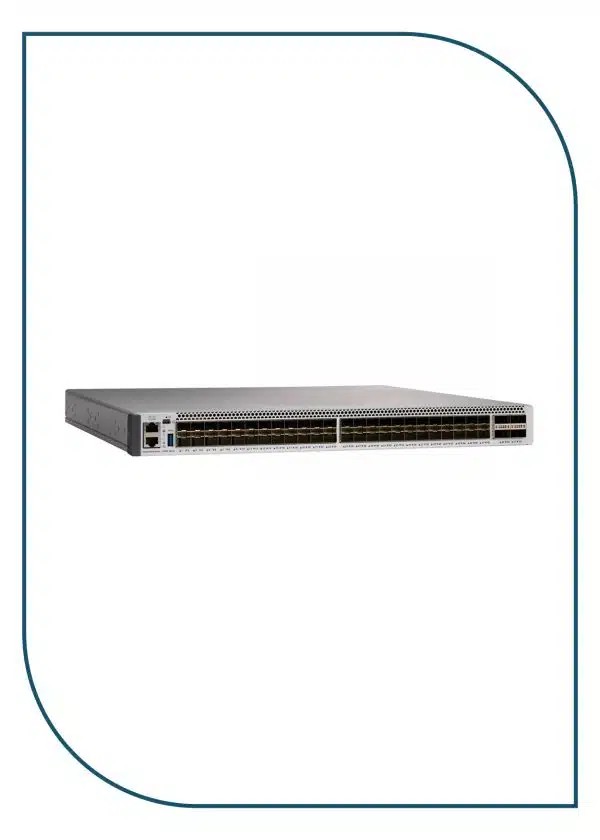

C9500-48Y4C-A is a Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C9500-48Y4C-A |
| Description | Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License |
| Switching capacity | Up to 3.2 Tbps |
| Forwarding rate | Up to 1 Bpps |
| DRAM | 16 G |
| Flash | 16 G |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack units (RU) | 1RU |
Specification
C9500-48Y4C-A Specification |
|
|
Performance specifications |
|
|
Switching capacity |
Up to 3.2 Tbps |
|
Forwarding rate |
Up to 1 Bpps |
|
Total number of MAC addresses |
Up to 82,000 |
|
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 212,000 indirect + direct Up to 90,000 host/ARP |
|
Total number of IPv6 routes |
Up to 212,000 indirect + direct Up to 90,000 host |
|
QoS ACL scale |
Up to 16000 |
|
Security ACL scale |
Up to 27000 |
|
FNF entries |
Up to 98,000 |
|
DRAM |
16 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4000 |
|
Total Switched Virtual Interfaces (SVIs) |
4000 |
|
Jumbo frame |
9216 bytes |
|
Power supply specifications |
|
|
Power Supply Selection |
C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
|
Dimensions, physical specifications, and MTBF |
|
|
Dimensions (H x W x D) |
1.73 x 17.5 x 18.0 in |
|
Rack units (RU) |
1 RU |
|
Input voltage |
90 to 264 VAC |
|
Operating temperature |
32° to 104°F (0° to 40°C) |
|
Storage temperature |
-4° to 149°F (-20° to 65°C) |
|
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
Altitude |
Operation up to 13,000 feet at 40°C |
|
MTBF (hours) |
316,960 |
Product Details
Catalyst 9500 25-G 24- and 48-port switches: C9500-24Y4C, C9500-48Y4C
· 24 and 48 ports of 25 G with rich campus features
· Cisco innovation extending SR reach to 300 million
· High performance, SFP28
· Secure segmentation with SD-Access
· MPLS Level 2/3 VPNs, MVPN; flexible design templates
· Enhanced Limited Lifetime Warranty (E-LLW)
Compare to Similar Item
Table 2 shows the comparison.
| Product Code | C9500-48Y4C-A | C9500-24Y4C-E |
| Description | Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License | Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License |
| Switching capacity | Up to 3.2 Tbps | Up to 2 Tbps |
| Forwarding rate | Up to 1 Bpps | Up to 1 Bpps |
| DRAM | 16 G | 16 G |
| Flash | 16 G | 16 G |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in | 1.73 x 17.5 x 18.0 in |
| Rack units (RU) | 1RU | 1RU |
