Description

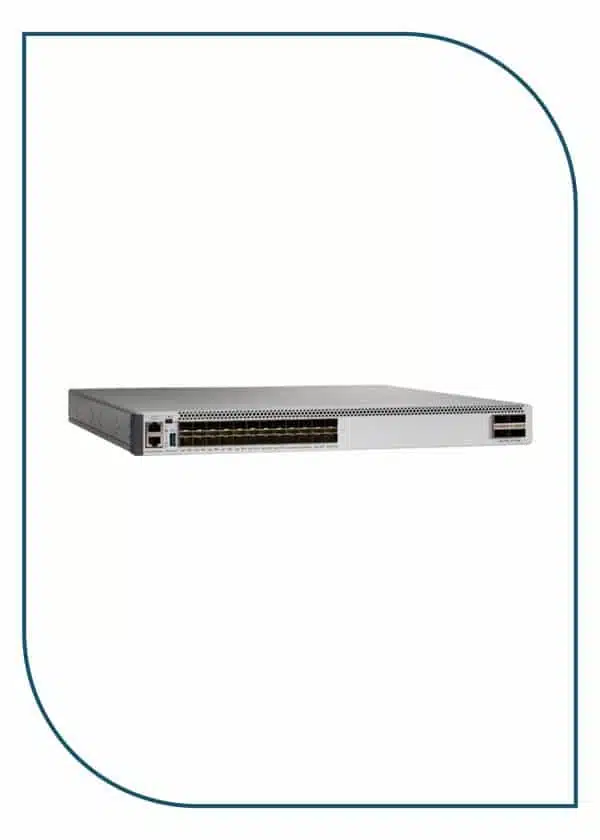

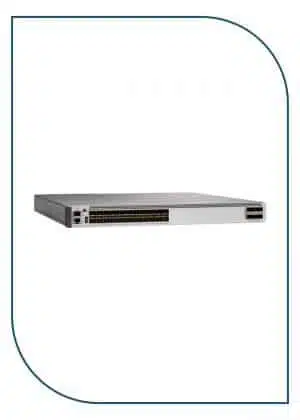

The Cisco C9500-24Y4C-A is part of the Cisco Catalyst 9500 Series, Cisco’s flagship fixed-core switching platform designed for enterprise campus core and aggregation deployments. Built to support digital transformation, cloud applications, and modern enterprise infrastructures, it provides exceptional performance, security, and operational simplicity.
Equipped with 24 high-speed SFP28 ports supporting 1G, 10G, and 25G Ethernet connectivity, along with 4 QSFP28 uplink ports supporting 40G and 100G networking, the switch offers flexible high-bandwidth connectivity for enterprise campuses, data center edge environments, service providers, and large-scale business networks.
The included Network Advantage license unlocks advanced Layer 3 services including dynamic routing protocols such as OSPF, EIGRP, BGP, IS-IS, advanced segmentation, multicast services, security policies, network automation, and enhanced analytics. These capabilities make the switch ideal for mission-critical applications requiring maximum availability and scalability.
Built on Cisco IOS XE, the Catalyst 9500 Series supports Software-Defined Access (SD-Access), Cisco DNA Center integration, StackWise Virtual technology, advanced telemetry, encrypted traffic analytics, and enterprise-class security capabilities. Advanced MACsec encryption and TrustSec technologies help secure data and protect critical network infrastructure.
The C9500-24Y4C-A is an ideal solution for enterprise campus cores, aggregation layers, financial institutions, government organizations, healthcare facilities, education campuses, and high-performance business networks requiring 25G and 100G connectivity.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco C9500-24Y4C-A |
| Product Series | Cisco Catalyst 9500 Series |
| License | Network Advantage |
| Switch Type | Enterprise Core / Aggregation Switch |
| Ports | 24 × 1G/10G/25G SFP28 |
| Uplink Ports | 4 × 40G/100G QSFP28 |
| Layer Support | Layer 2 / Layer 3 |
| Routing Features | OSPF, EIGRP, BGP, IS-IS, PIM |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | MACsec, TrustSec, ACL, 802.1X |
| IPv4 Support | Yes |
| IPv6 Support | Yes |
| Stack Support | StackWise Virtual |
| Operating System | Cisco IOS XE |
| Management | CLI, SNMP, Cisco DNA Center |
| Switching Capacity | Up to 2 Tbps |
| Forwarding Rate | Up to 1 Bpps |
| Redundant Power Supply | Supported |
| Redundant Fans | Supported |
| Form Factor | Rack Mountable |
| Application | Campus Core, Aggregation, Data Center Edge |
| Brand | Cisco |
Key Features
- 24 × 1G/10G/25G SFP28 ports
- 4 × 40G/100G QSFP28 uplinks
- Cisco Network Advantage license
- Advanced Layer 3 routing protocols
- StackWise Virtual technology
- Cisco DNA Center integration
- MACsec and TrustSec security
- High-performance campus core switching
- Redundant power and cooling architecture
- Optimized for enterprise and data center environments
