Description
C9300X-12Y-A
Overview

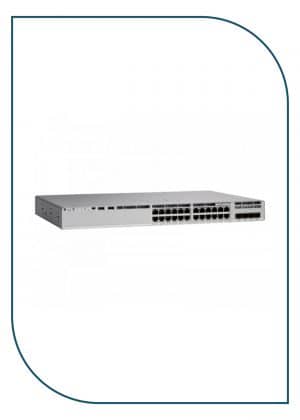

The C9300X-12Y-A is a Catalyst 9300 switch model by Cisco. This model comes with 12 ports of 25G/10G/1G SFP28 and modular uplinks. It is part of the Cisco Catalyst 9300 Series, which provides flexible deployment options, including small to medium-sized businesses, enterprise branches, and campuses. The switch includes advanced security features and is powered by Cisco’s IOS XE software.
Quick Spec
Table 1 shows the quick spec of the C9300X-12Y-A.
| Product Code | C9300X-12Y-A |
| Manufacturer | Cisco |
| Type | Network Switch |
| Ports | 12 x 25G/10G/1G SFP28 |
| Uplinks | Modular |
| Software | Network Advantage |
Specification
C9300X-12Y-A Specifications |
|
| Model | C9300X-12Y-A |
| Product Description | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
| Ethernet Ports | 12 x SFP28 |
| Uplink Slots | Modular |
| Uplink Speeds | 25G/10G/1G |
| Switching Capacity | 480 Gbps |
| Forwarding Rate | 357.14 Mpps |
| Power Supply | Internal |
| Dimensions | 17.5 x 16.1 x 1.7 in. |
| Weight | 13.9 lbs |
| Operating Temperature | 23 to 113��F |
| Operating Humidity | 10 to 90% |
| OS | Cisco IOS XE |
Product Features
- Flexibility: 12 ports of 25G/10G/1G SFP28 and modular uplinks provide a variety of connectivity options.
- Security: Advanced security features such as secure boot, Trustworthy Systems, MACsec, and other capabilities.
- Efficiency: Supports Energy Efficient Ethernet (EEE) and lower power consumption.
- Scalability: Designed to scale as network demands grow, with high-density stacking capabilities.
Product Applications
- Small to Medium-Sized Businesses: Provides secure and scalable connectivity options.
- Enterprise Branches: Delivers enterprise-grade performance and security.
- Campuses: Handles high-density deployments with advanced security features.
Supported Options
Table 2 shows the supported options of the C9300X-12Y-A.
| Model | Accessory |
| C9300-NM-8X | 8x 10GE Network Module |
| PWR-C1-1100WAC= | 1100W AC Config 1 Power Supply |
| STACK-T1-50CM= | Cisco STACK-T1-50CM= StackWise-480 50cm stacking cable |
Compare to Similar Items
Table 3 shows the comparison to similar items of the C9300X-12Y-A.
| Model | Difference |
| C9300X-24Y-A | Offers 24 ports of 25G/10G/1G/100M SFP28 and 4 ports of 40/100G QSFP28 |
| C9300X-48Z-A | Offers 48 ports of 25G/10G/1G/100M SFP28 and 4 ports of 40/100G QSFP28 |
Ordering Information
Table 4 shows the ordering information of the C9300X-12Y-A.
| Product Code | Description |
| C9300X-12Y-A | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
