Description

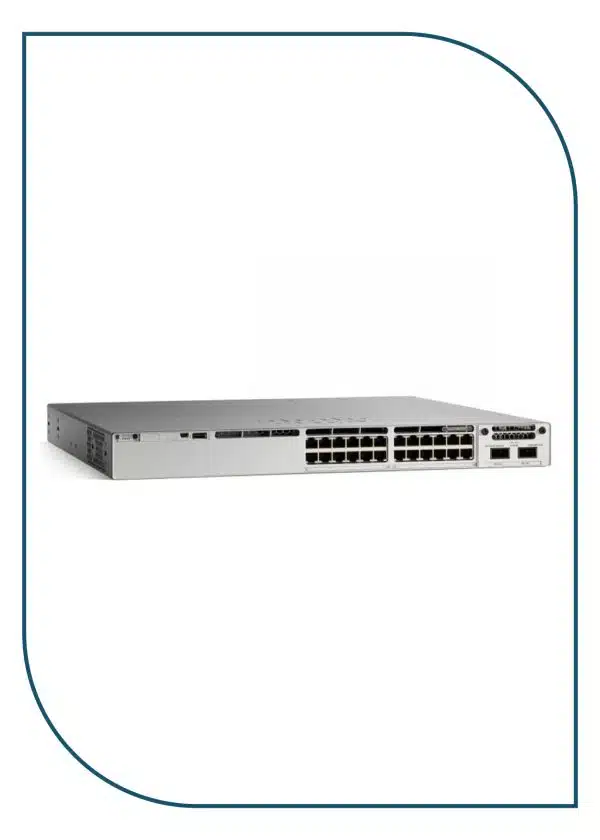

C9300-24S-E
Overview
The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C9300-24S–E |
| Product Description | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| Total 10/100/1000 or Multigigabit copper ports | 24x 1G SFP |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 715W AC |
| Available PoE power | N/A |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.7 Inches |
Specification
C9300-24S–E Specification |
|
| Product Code | C9300-24S-E |
| Product Description | Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
| Total 10/100/1000 or Multigigabit copper ports | 24x 1G SFP |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 715W AC |
| Available PoE power | N/A |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.7 Inches |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-715WAC-P/2 |
| Switching capacity | 208 Gbps |
| Stacking bandwidth | 688 Gbps |
| Forwarding rate | 154.76 Mpps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet modelst
32 MB buffer for 24 and 48-port Multigigabit |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models
128,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports Catalyst per 9300 Series stack | 448 |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Mean time between failures – MTBF (hours) | 284,130 |
| Safety certifications
|
•UL 60950-1
•CAN/CSA-C222.2 No. 60950-1 •EN 60950-1 •IEC 60950-1 •AS/NZS 60950.1 •IEEE 802.3 |
| Electromagnetic emissions certifications | •47 CFR Part 15
•CISPR22 Class A •EN 300 386 V1.6.1 •EN 55022 Class A •EN 55032 Class A •CISPR 32 Class A •EN61000-3-2 •EN61000-3-3 •ICES-003 Class A •TCVN 7189 Class A •V-3 Class A •CISPR24 •EN 300 386 •EN55024 •TCVN 7317 • V-2/2015.04 •V-3/2015.04 •CNS13438 •KN32 •KN35 •IEC 61000-6-1 •EN 61000-6-1 |
| Environmental | Reduction of Hazardous Substances
(ROHS) 5 |
The Accessories
Table 2 shows the recommended elements for the C9300-24S–E.
|
Product number |
Description |
|
9300 Series 4x 1G Network Module |
|
|
9300 Series 8x 10G Network Module |
|
|
9300 Series 2x 40G Network Module |
|
|
Catalyst 9300 2 x 40GE Network Module, spare |
|
|
9300 Series 4x Multigigabit Network Module |
|
|
Catalyst 9300 4 x MGig Network Module, spare |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Code |
C9300-24S–E | |
|
Product Description |
Catalyst 9300 24 GE SFP Ports, modular uplink Switch |
Catalyst 9300 24-port data only, Network Essentials |
|
Total 10/100/1000 or Multigigabit copper ports |
24x 1G SFP |
24 |
| Uplink Configuration | Modular Uplinks | Modular Uplinks |
|
Default AC power supply |
715W AC |
350W AC |
|
Available PoE power |
N/A |
N/A |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.7 Inches |
1.73 x 17.5 x 17.5 Inches |
