Description

JL815A

Datasheet

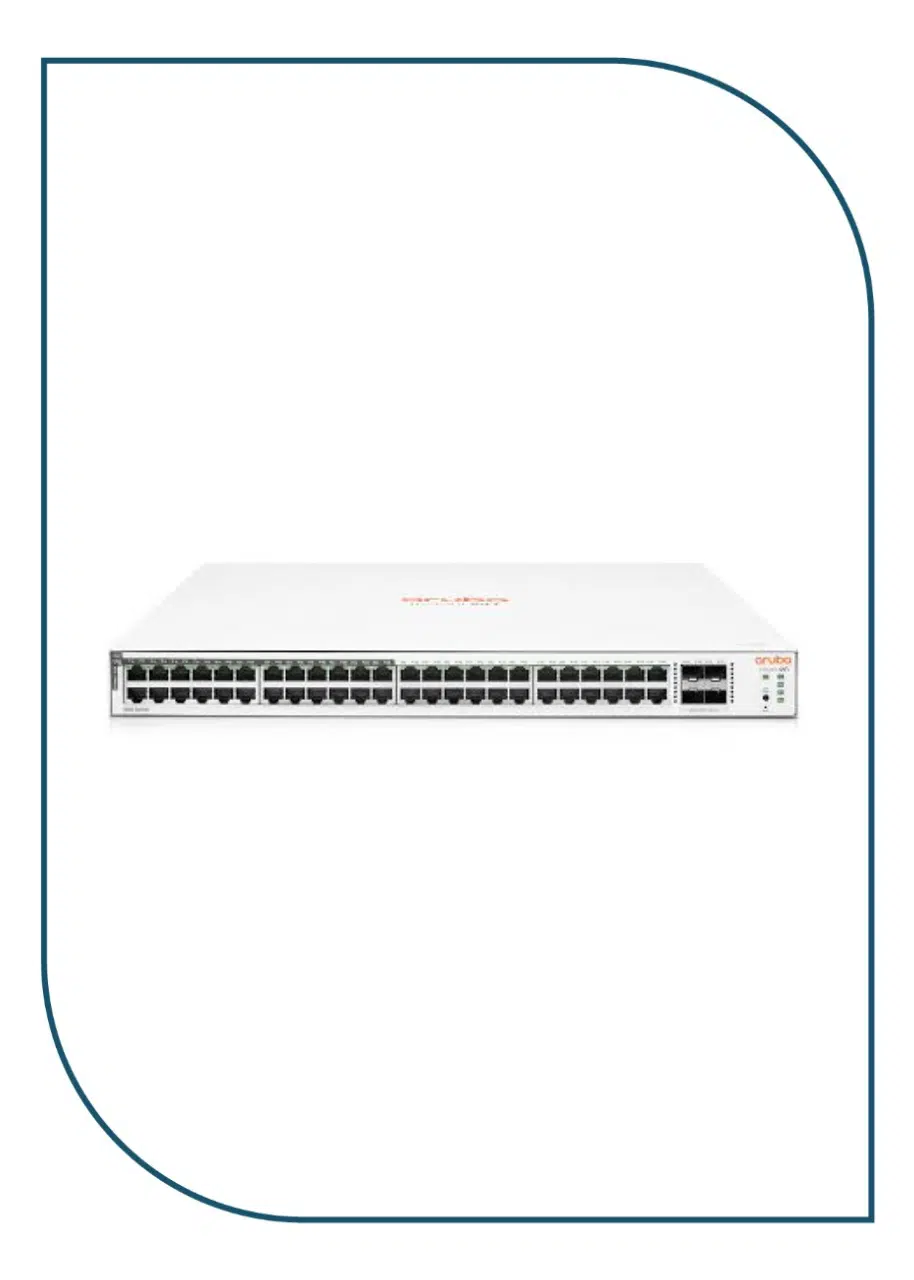

Product Differentiator (long)Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses?looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power.

Power Consumption DescriptionMaximum: 100-127V: 462.5W 200-220V: 452.5W, Idle: 100-127V: 25.8W 200-220V: 25.4W

Input Voltage100 – 240 VAC

External I/O Ports48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports

Switching Capacity104 Gbps

Throughput77.37 Mpps

Memory and ProcessorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash, packet buffer: 1.5 MB

PoE Capability370W

Management FeaturesAruba Instant On Cloud, Web browser, SNMP Manager

Warranty FeaturesHPE provides 3-year, next-day, product exchange, limited warranty for the HPE LTO Ultrium Tape Drives, plus 9×5 phone support

Warranty Standard StatementLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Weight (imperial)10.90 lb

Weight (metric)4.94 kg

Product Dimensions (imperial)13.82 x 17.44 x 1.73 in

Product Dimensions (metric)35.10 x 44.30 x 4.39 cm
