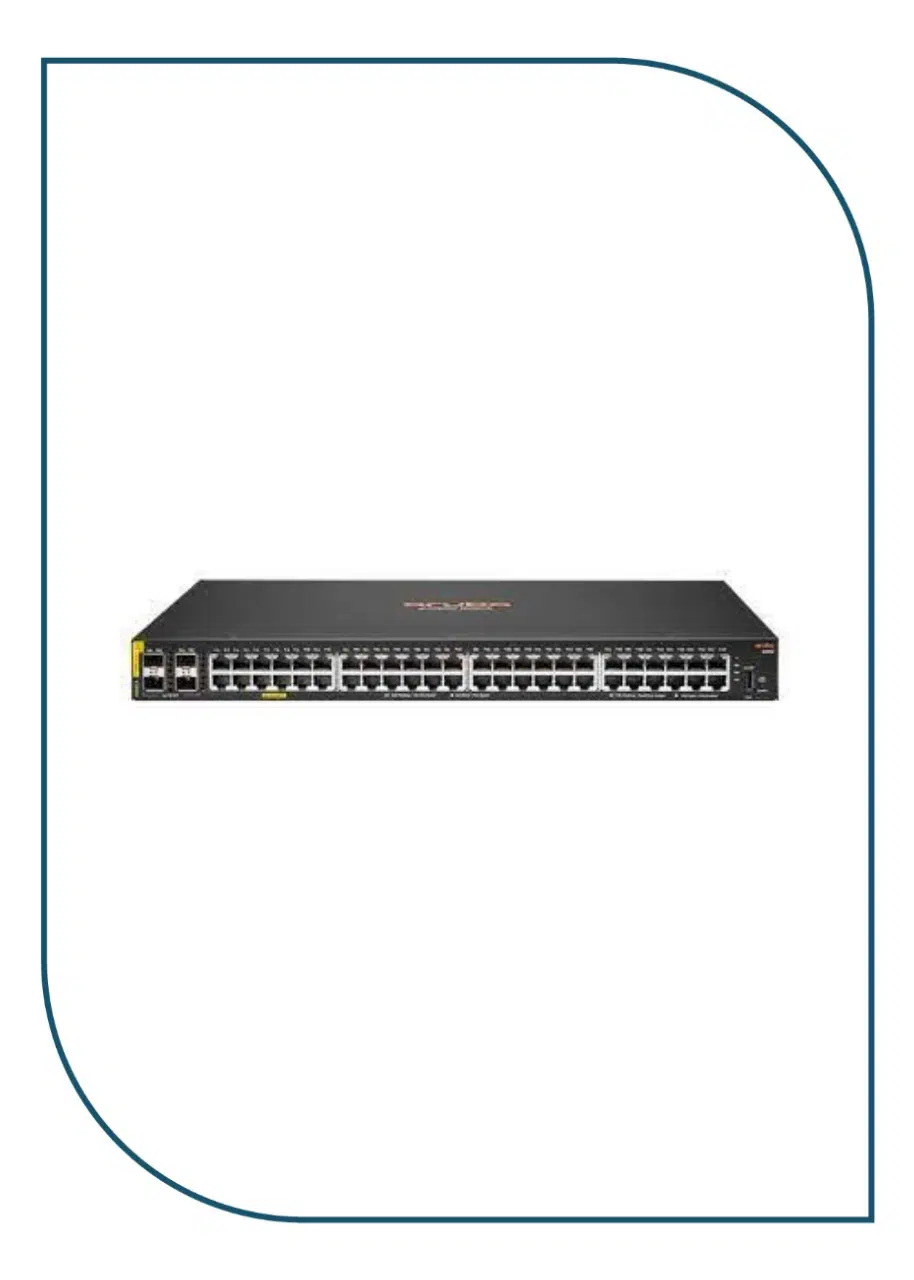

Aruba 6000 48G 4SFP Switch (R8N86A)


  • Aruba 6000 48G 4SFP Switch (R8N86A)
    • 48x ports 10/100/1000Base-T ports
    • 4x 1G SFP ports
    • Internal (fixed) power supply, fixed fans
    • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 24.74 cm (1.73″ x  17.4″ x 9.74″)
    • Weight: 3.42 kg (7.54 lbs)

Share it:

Power Consumption DescriptionMax Power: 44.2W

Input Voltage100-127 VAC / 200-240 VAC

External I/O Ports48x ports 10/100/1000BASE-T ports 4x 1G SFP ports

Latency1 Gbps: 1.9 μSec

Routing CapabilitiesStatic

Switching Capacity104 Gbps

Throughput77.3 Mpps

Memory and ProcessorDual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC

PoE Capabilitynon-PoE model

Warranty Standard StatementLimited Lifetime Warranty, see productwarranties/ for warranty and support information included with your product purchase

Weight (imperial)7.54 lbs

Weight (metric)3.4 kg

Product Dimensions (imperial)1.73 x 17.4 x 9.74 in

Product Dimensions (metric)4.4 x 44.2 x 24.7 cm

Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
