Description

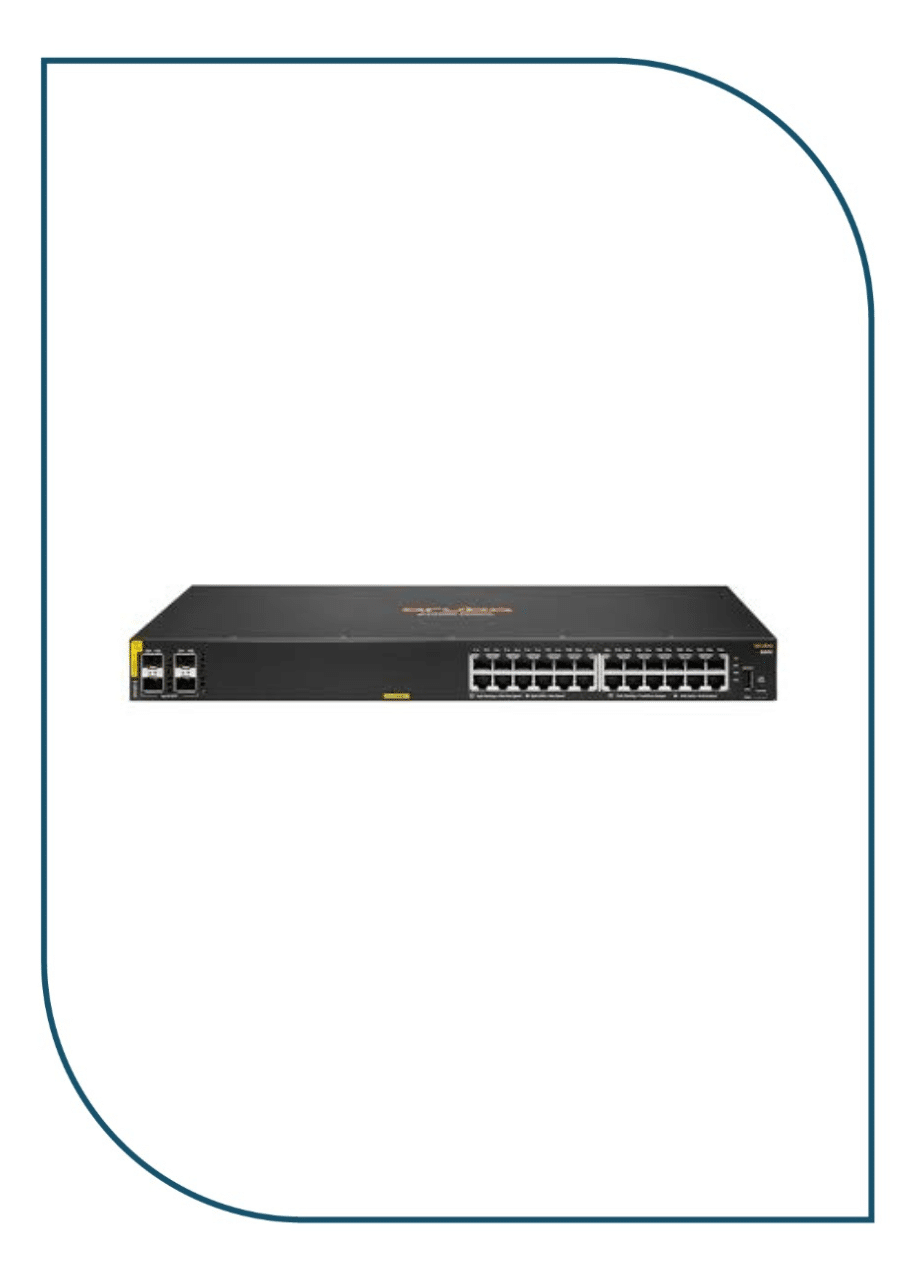

R8N87A
Power Consumption DescriptionMax Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W
Input Voltage100-127 VAC / 200-240 VAC
External I/O Ports24x ports 10/100/1000BASE-T ports 4x 1G SFP ports
Latency1 Gbps: 1.5 μSec
Routing CapabilitiesStatic
Switching Capacity56 Gbps
Throughput41.6 Mpps
Memory and ProcessorDual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
PoE Capability370W Class 4 PoE/PoE+
Warranty Standard StatementLimited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase
Weight (imperial)9.24 lbs
Weight (metric)4.2 kg
Product Dimensions (imperial)1.73 x 17.4 x 10.56 in
Product Dimensions (metric)4.4 x 44.2 x 26.8 cm
Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
