Description

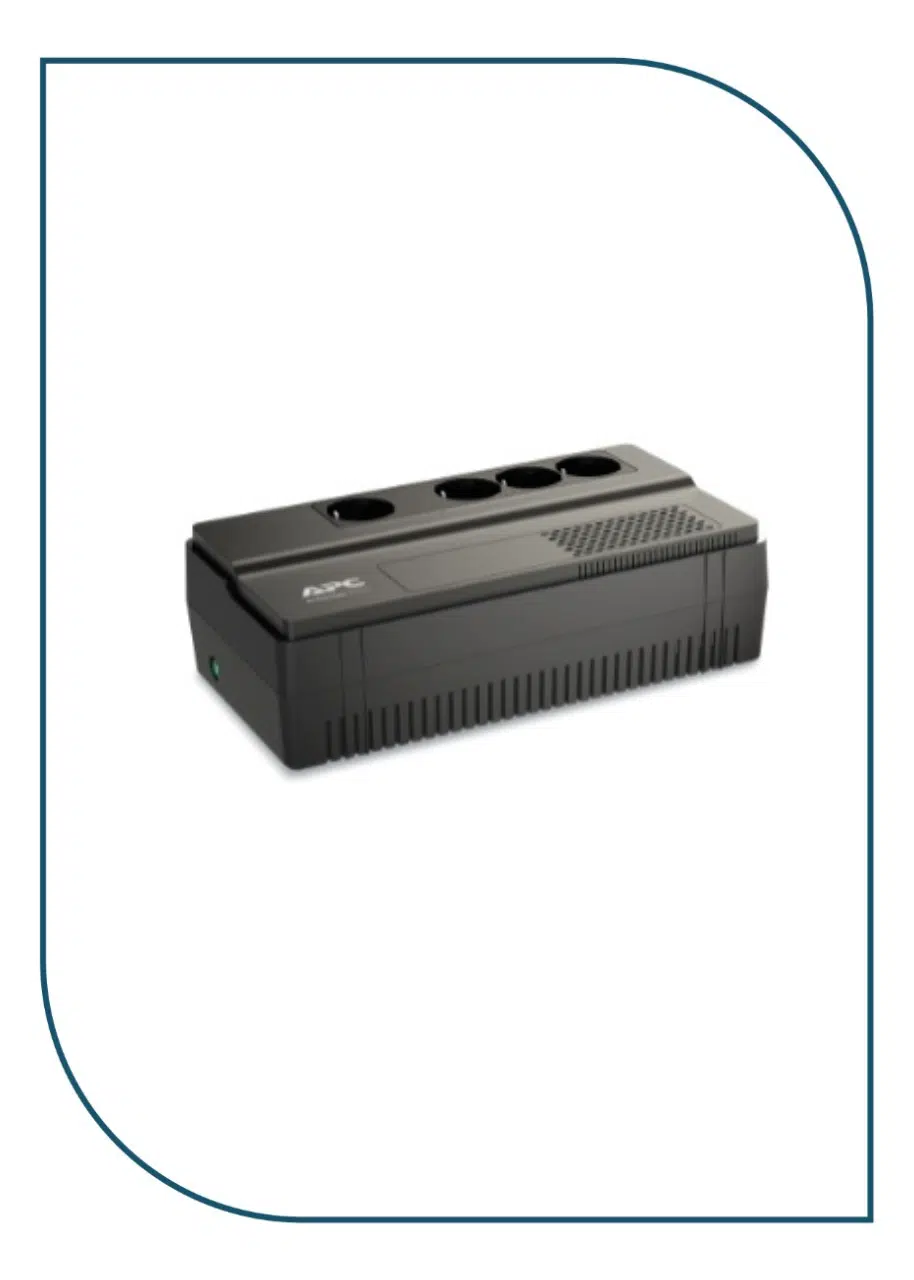

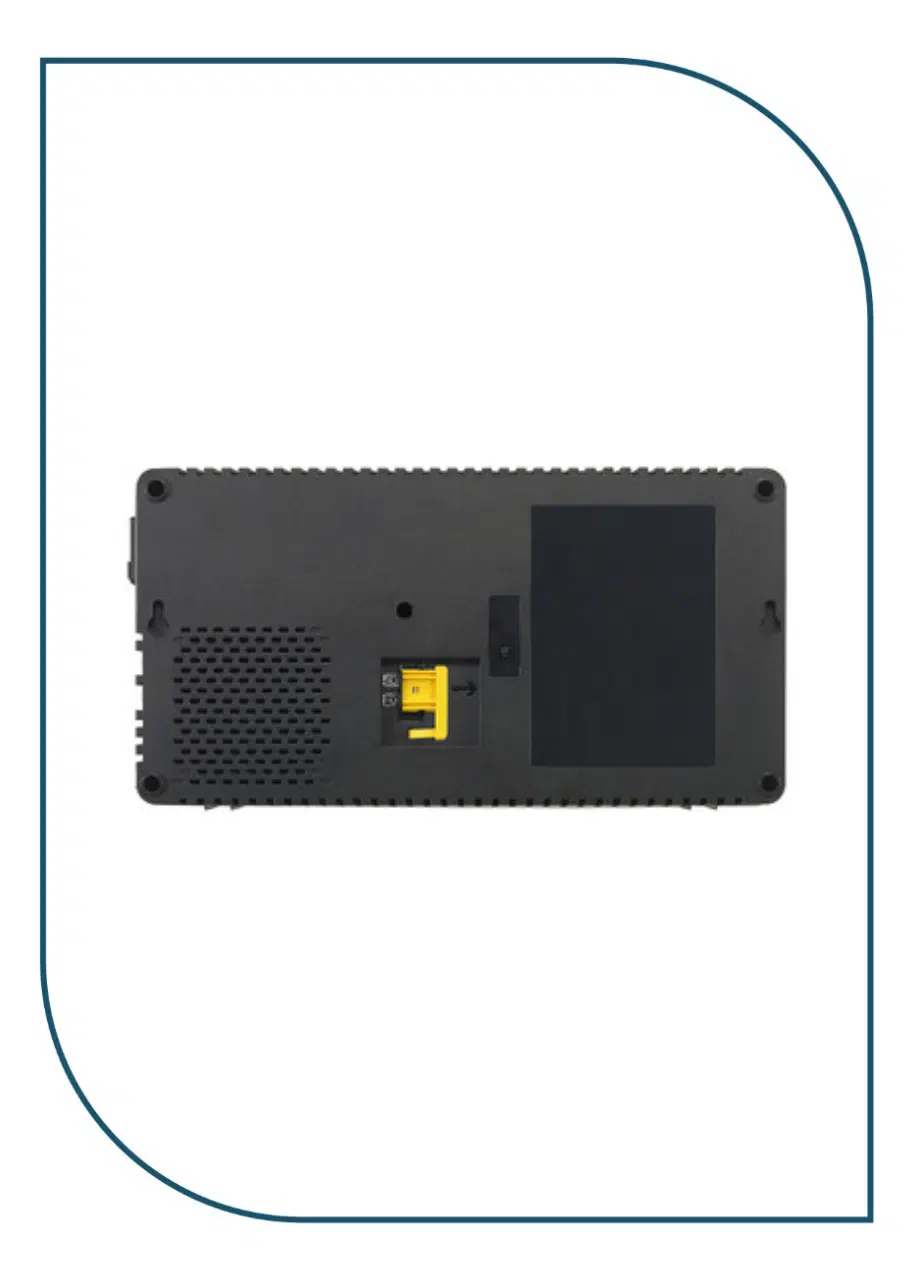

BV650I-GR
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 650VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection.
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Rated power in W | 375 W |
| rated power in VA | 650 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko CEE 7/7P |
| output connection type | 4 Schuko CEE 7 |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Range of product | Easy UPS |
| Efficiency |
|
|---|---|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Extended runtime | 0 |
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Colour | Black |
|---|---|
| Height | 92.5 mm |
| Width | 112 mm |
| Depth | 305 mm |
| Net weight | 4.5 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Input voltage limits | 170…280 V |
| Maximum configurable power in W | 375 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Graph display | 1 |
| Maximum configurable power in VA | 650 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | CE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…90 % |
| Operating altitude | 0…6667 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…90 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Control panel | LED Status display with on line : on battery |
| Surge energy rate | 156 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.7 cm |
| Package 1 Width | 37.3 cm |
| Package 1 Length | 14.3 cm |
| Package 1 Weight | 4.8 kg |
| SCC14 | 10731304338328 |
| Warranty (in months) | 24 |
|---|
