Description

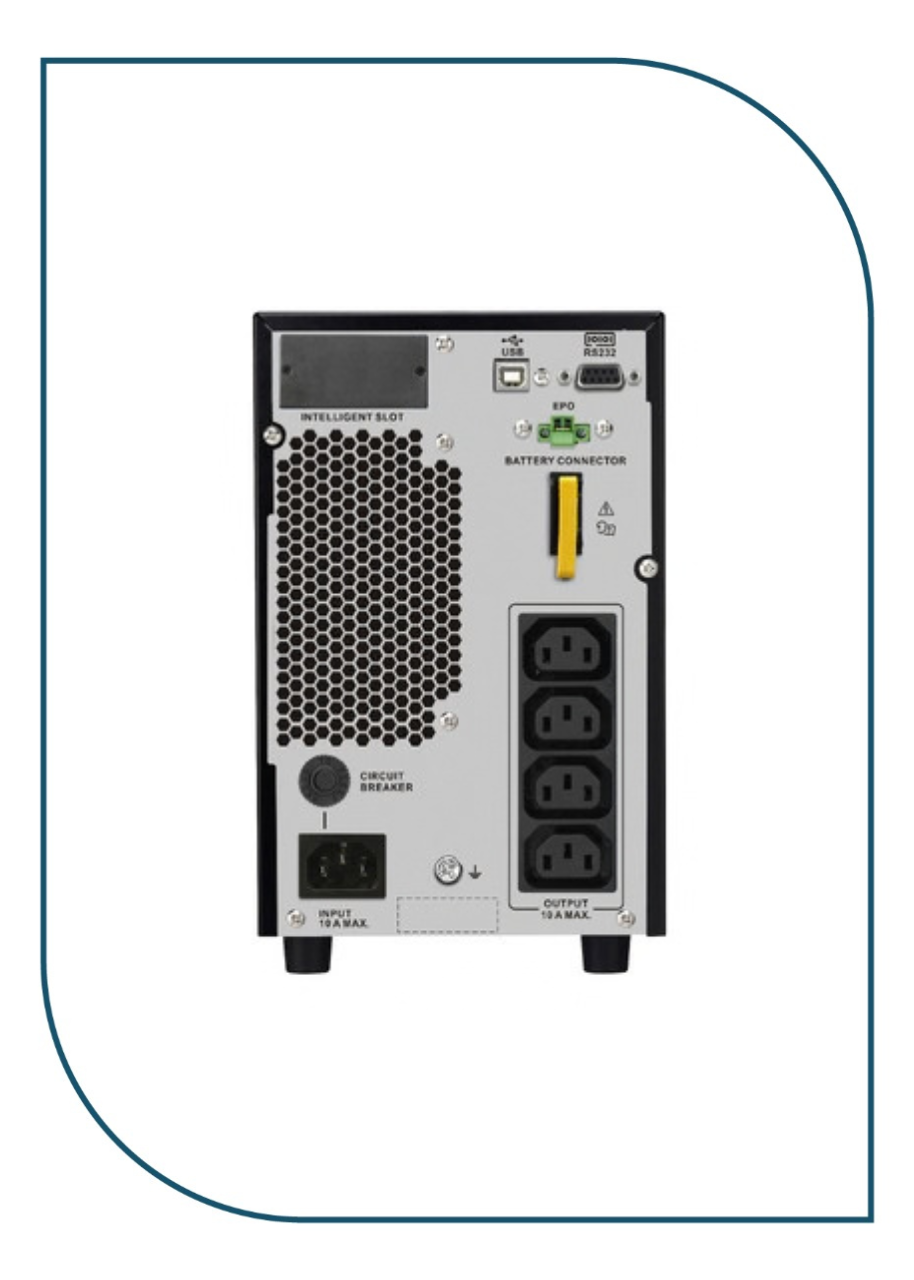

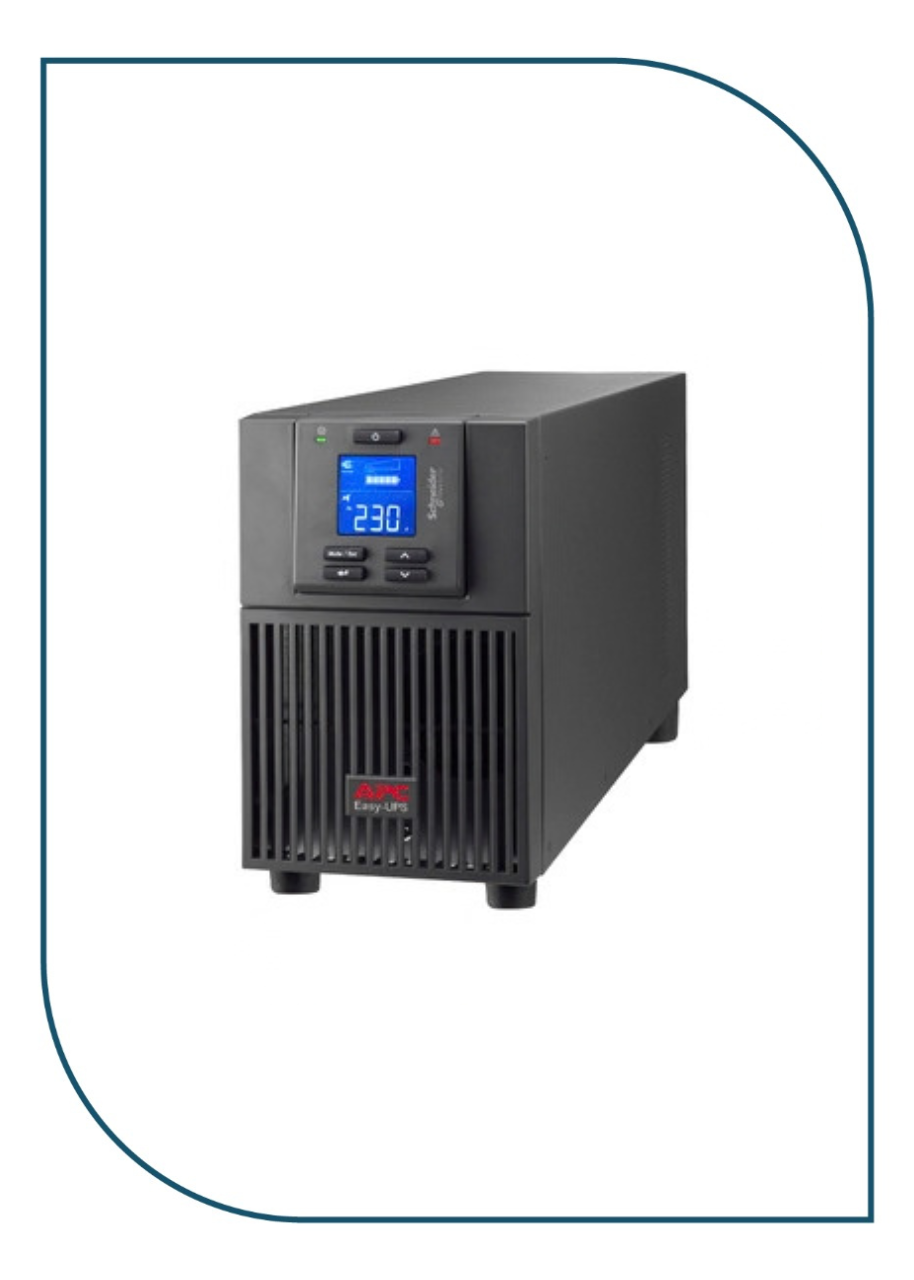

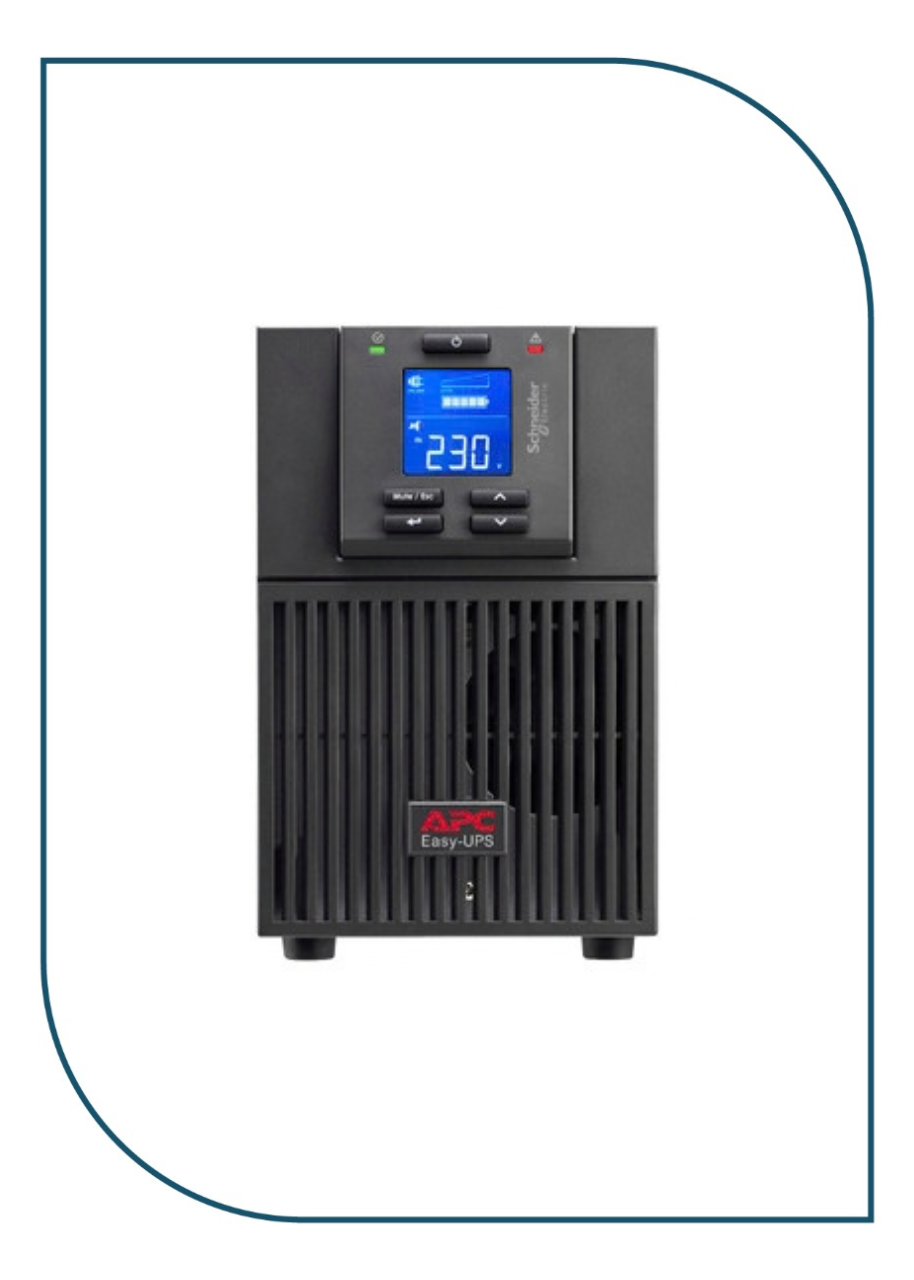

This SRV2KI-E APC Single Phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has an intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV204. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Specifications
| an offer | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|
| Main input voltage | 230V AC Phase |
|---|---|
| Other input voltage | 220V 240V |
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 110-285 V 40% load 180-285 V full load |
| Input frequency | 40…70 Hz automatic sensing |
| Output voltage | 230V AC Phase |
| Other output voltage | 220V 240V |
| Rated power in W | 1800 watts |
| Rated power in VA | 2000 volt-amperes |
| Output connection | 4 IEC 60320 C13 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:1 |
| Harmonic distortion | 3% |
| Maximum configurable power in VA | 2000 volt-amperes |
| Maximum configurable power in W | 1800 watts |
| UPS topology | connected |
| Waveform type | sine wave |
| Efficiency | 88 percent (full-term pregnancy) |
| Output frequency | 50/60 Hz +/- 3 Hz synchronization with main connectors |
| Replacement battery |
APCRBCV204 |
| Product certification | CE UKCA TISI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 degrees Celsius |
| Ambient air temperature for storage | 20-50 degrees Celsius |
| Storage altitude | 0…15,000 meters |
| IP protection | IP20 |
| Relative humidity | 0.95 percent condition of no water condensation |
| Storage relative humidity | 0.95 percent condition of no water condensation |
| Acoustic level | 50 sound decibels (dBA) |
| Heat dissipation | 759 British thermal units/hour |
| Operating altitude | 0…3000 m |
| Battery type | lead-acid battery |
|---|---|
| Battery voltage | 48 volts |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 4 hours |
| Battery life | 3…5 years / years |
| Battery charging power | Rated 70 watts |
| Battery power in VAh | 367 VAh operating time |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.500 centimeters |
| Package 1 Width | 24,000 centimeters |
| Package 1 Length | 52,000 centimeters |
| Package Weight 1 | 20.378 kilograms |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 122,000 centimeters |
| Package 2 Width | 80,000 centimeters |
| Package 2 Length | 120,000 centimeters |
| Package Weight 2 | 350,000 kilograms |
