AC650-256AP Huawei Access Controller

Description

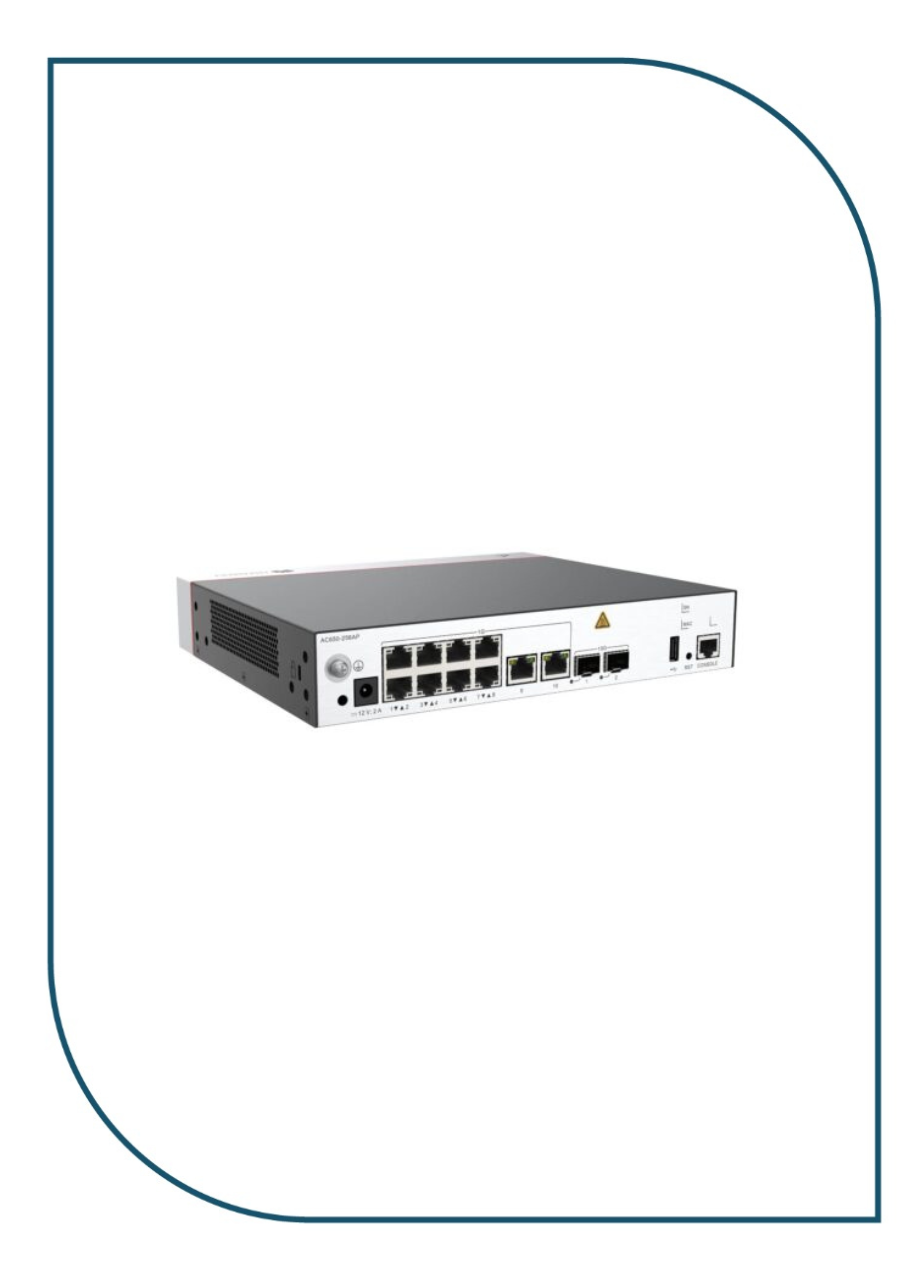

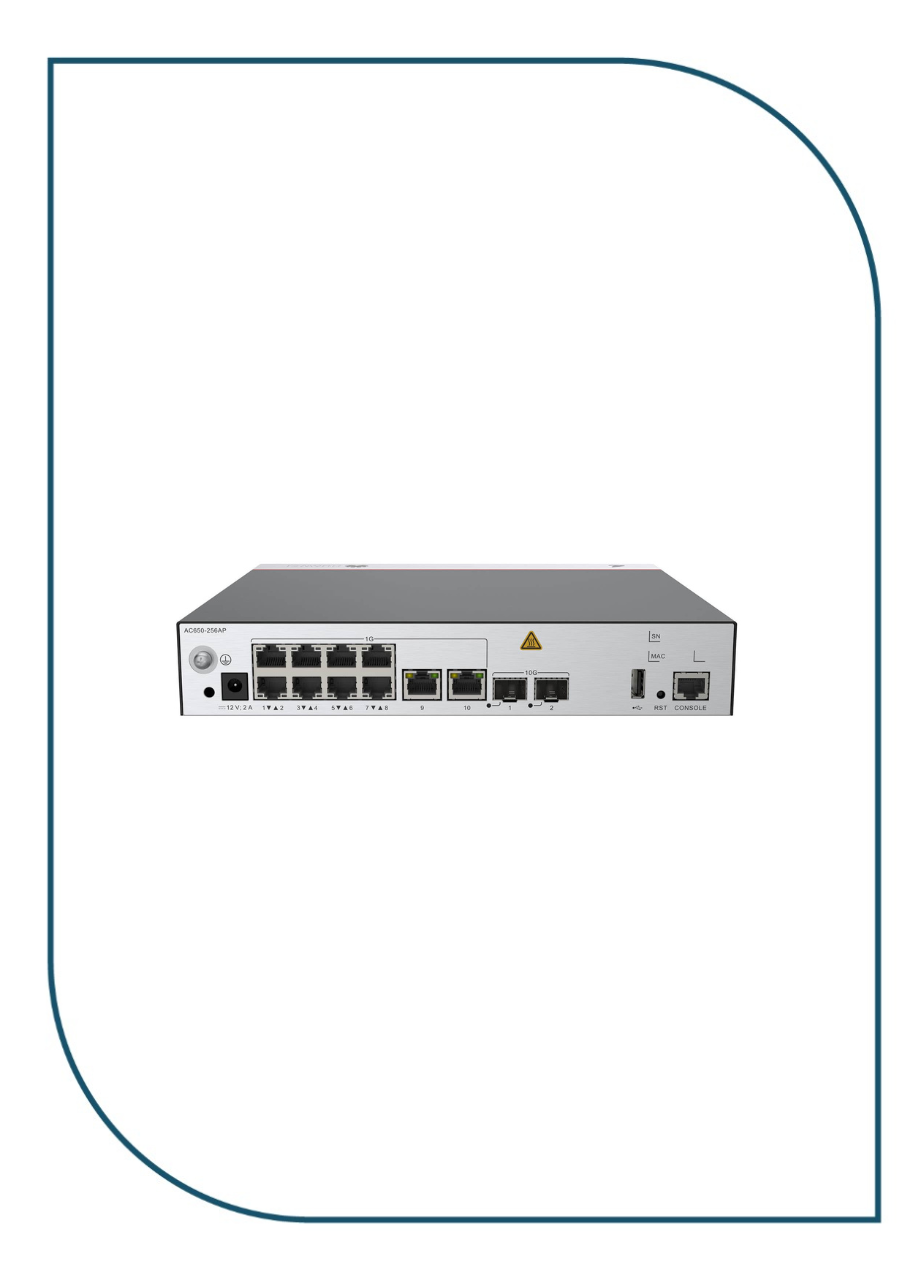

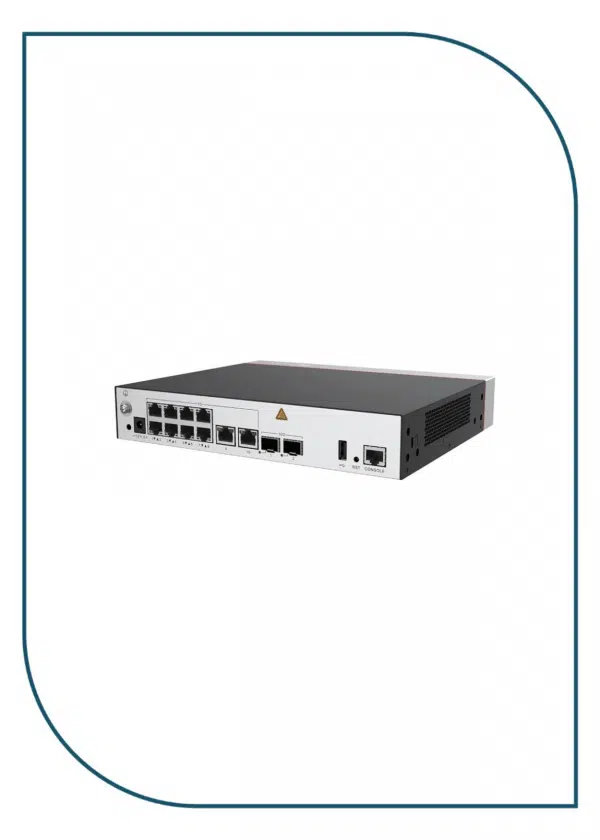

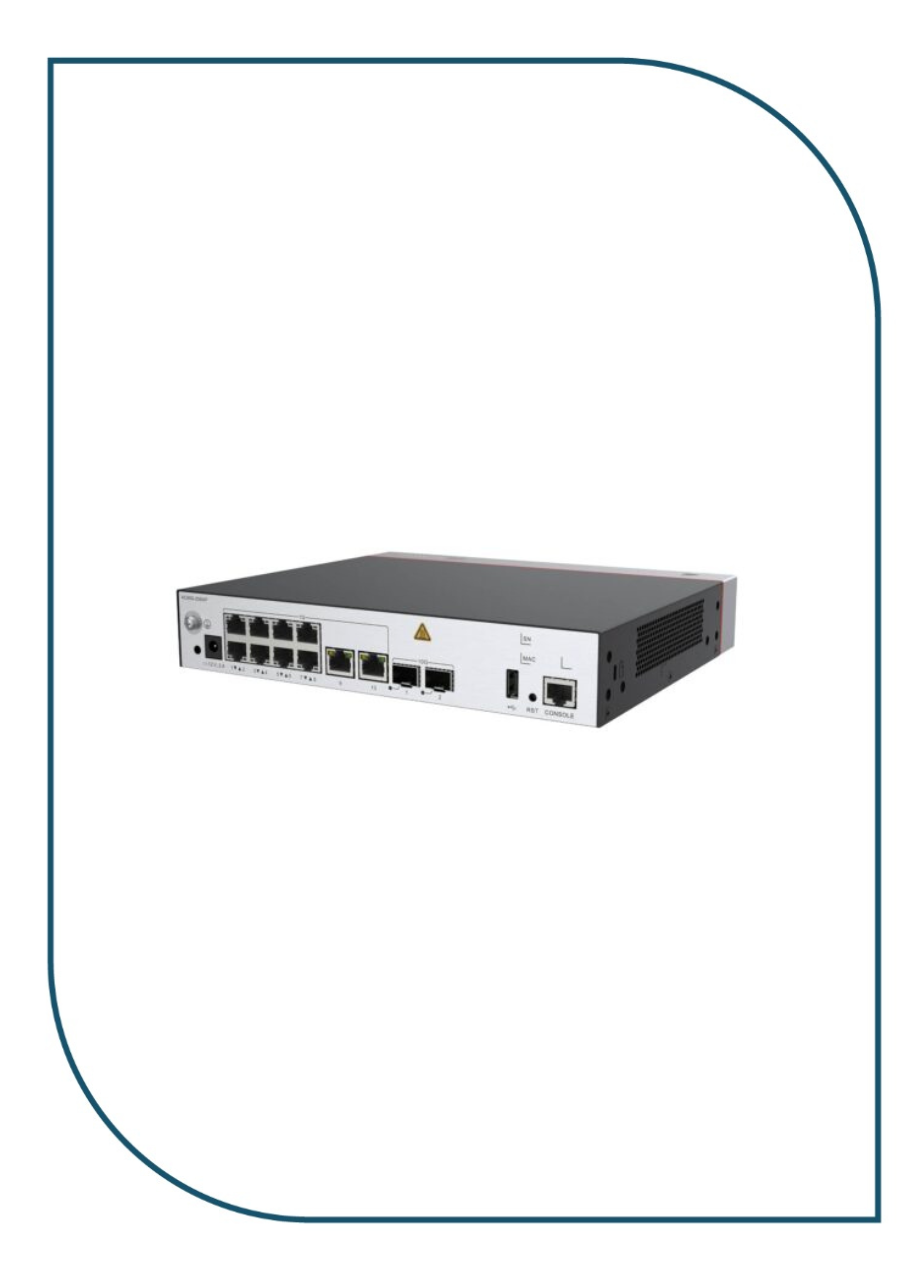

AC650-256AP

The AC650-256AP is a small-capacity box wireless access controller (WAC) for small office home office (SOHO) enterprises. It can manage up to 256 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users. Also, the AC650-256AP features high scalability and offers users considerable flexibility in configuring the number of managed APs. With these strengths, this WAC can be used to construct small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks.

FEATURES:

AC650-256AP

• Large-capacity and high-performance design:
  • Manages up to 256 APs, meeting requirements of SOHO campuses.
  • Provides 2 x 10GE optical interfaces and 10 x GE electrical interfaces, supporting up to 10 Gbps forwarding performance.
• Smart Radio for AP air interface optimization:
  • Load balancing during smart roaming: The load balancing algorithm enables load balancing detection between APs on the network after STA roaming to adjust the STA load on each AP, improving network stability.
  • Intelligent dynamic frequency assignment (DFA) technology: The DFA algorithm is used to automatically detect adjacent channel and co-channel interference, and identify any redundant 2.4 GHz radios. Through automatic inter-AP negotiation, a redundant radio is automatically switched to another mode (dual-5G AP models support 2.4G-to-5G switchover) or is disabled to reduce 2.4 GHz co-channel interference and increase the system capacity.
  • Intelligent conflict optimization technology: Dynamic enhanced distributed channel access (EDCA) and airtime scheduling algorithms are used to schedule the channel occupation time and service priority of each user. This ensures that each user is assigned a relatively equal amount of time for using channel resources and user services are scheduled in an orderly manner, improving service processing efficiency and user experience.
    • The WAC has a built-in Portal/AAA server and can provide Portal/802.1X authentication for users, protecting customer investment.

• Various roles:

  Flexible networking:

  • The WAC can be deployed in in-path, off-path, bridge, or mesh network mode, and supports both centralized and local forwarding modes.
  • The WAC and APs can be connected across a Layer 2 or Layer 3 network. In addition, network address translation (NAT) can be deployed when APs are deployed on the private network and the WAC is deployed on the public network.
  • The WAC is compatible with Huawei’s 802.11n, 802.11ac and 802.11ax APs and supports the hybrid networking of 802.11n, 802.11ac and 802.11ax APs for simple scalability.
• Built-in application identification server:
  • ALSO Supports Layer 4 to Layer 7 application identification and can identify over 6000 applications, including common office applications and P2P download applications, such as Lync, FaceTime, YouTube, and Facebook.
  • AND Supports application-based policy control technologies, including traffic blocking, traffic limiting, and priority adjustment policies.
  • Supports automatic application expansion in the application signature database, without the need of a software upgrade.
• Comprehensive reliability design:
  • IT Supports WAC 1+1 HSB and N+1 backup, ensuring uninterrupted services.
  • Supports port backup based on the Link Aggregation Control Protocol (LACP) or Multiple Spanning Tree Protocol (MSTP).
  • Supports WAN authentication escape between APs and WACs. In local forwarding mode, this feature keeps existing STAs online and allows for the access of new STAs when APs are disconnected from WACs, ensuring service continuity.
• Built-in visualized network management platform:
  • The AC650-256AP has a built-in web system that is easy to configure and provides comprehensive monitoring and intelligent diagnosis.
• Health-centric one-page monitoring, visualized KPIs:
  • One page integrates the summary and real-time statistics. KPIs are displayed on graphs, including user, radio and AP performance, enabling users to extract useful information from the massive amount of data, while also being instantly aware of the device and network status.
• Profile-based configuration by AP group simplifies configuration and improves efficiency:
  • The web system supports AP group-centric configuration and automatically selects common parameters for users, simplifying configuration.
  • If two AP groups have small configuration differences, users can copy the configurations of one AP group to the other. This improves configuration efficiency because users need only modify the original configurations rather than creating entirely new ones each time.
• One-click diagnosis solves 80% of common network problems:
  • The web system supports real-time and periodic one-click intelligent diagnosis from the dimensions of users, APs, and WACs, and provides feasible suggestions for troubleshooting.

Specifications:

AC650-256AP

• Installation Type:
  • Rack
  • Desk
  • Wall
• Dimensions without packaging (H x W x D) [mm(in.)]:
  • Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
  • Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
• Weight without packaging [kg(LB)]: 1.9kg
• Storage: NAND FLASH 1GB
• Console port: RJ45
• Maximum power consumption [W]: 23.58 W
• Maximum heat dissipation [BTU/hour]: 80.45 BTU/hour
• Power supply mode: DC adapter
• Service port surge protection: 6 kV in common mode
• Types of fans: None

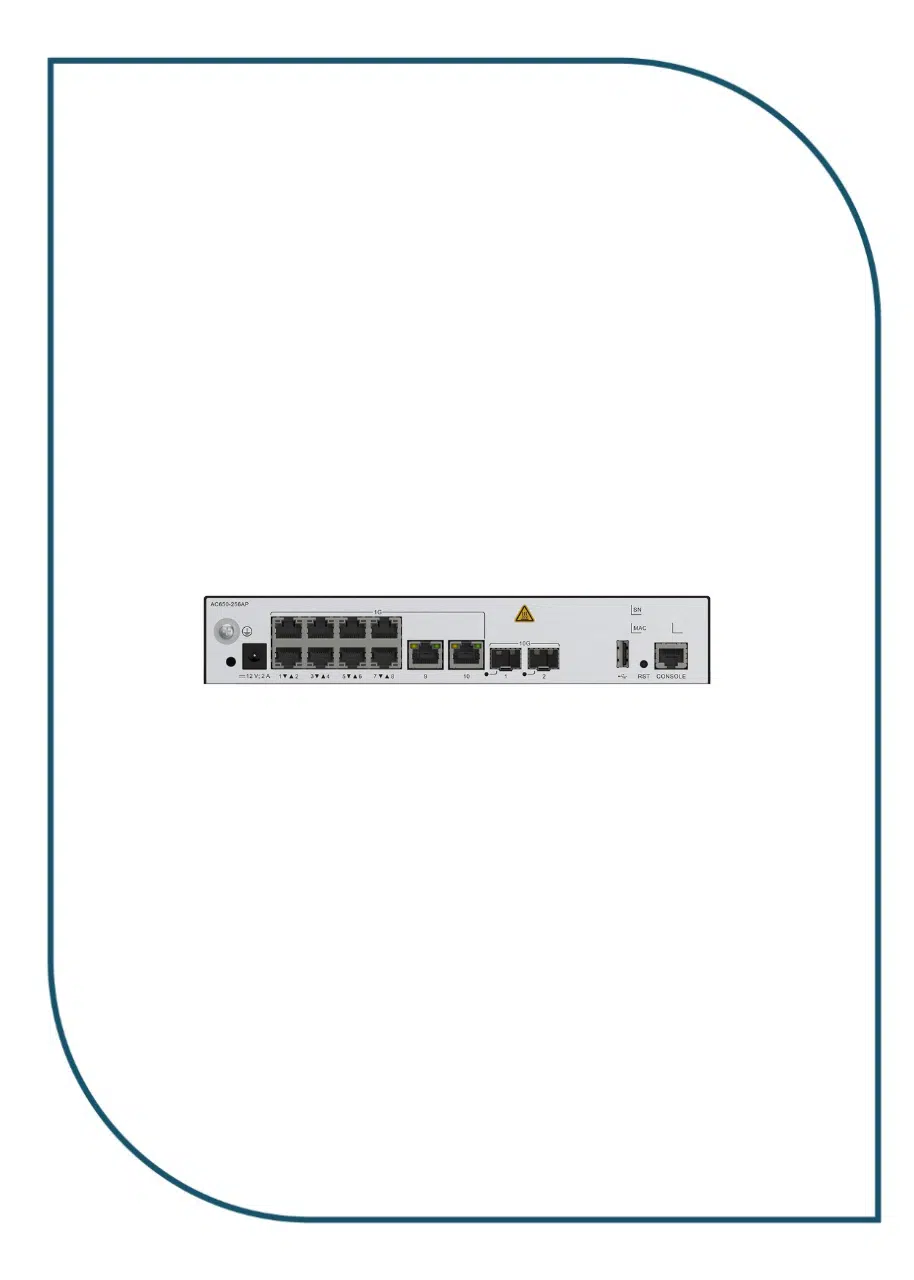

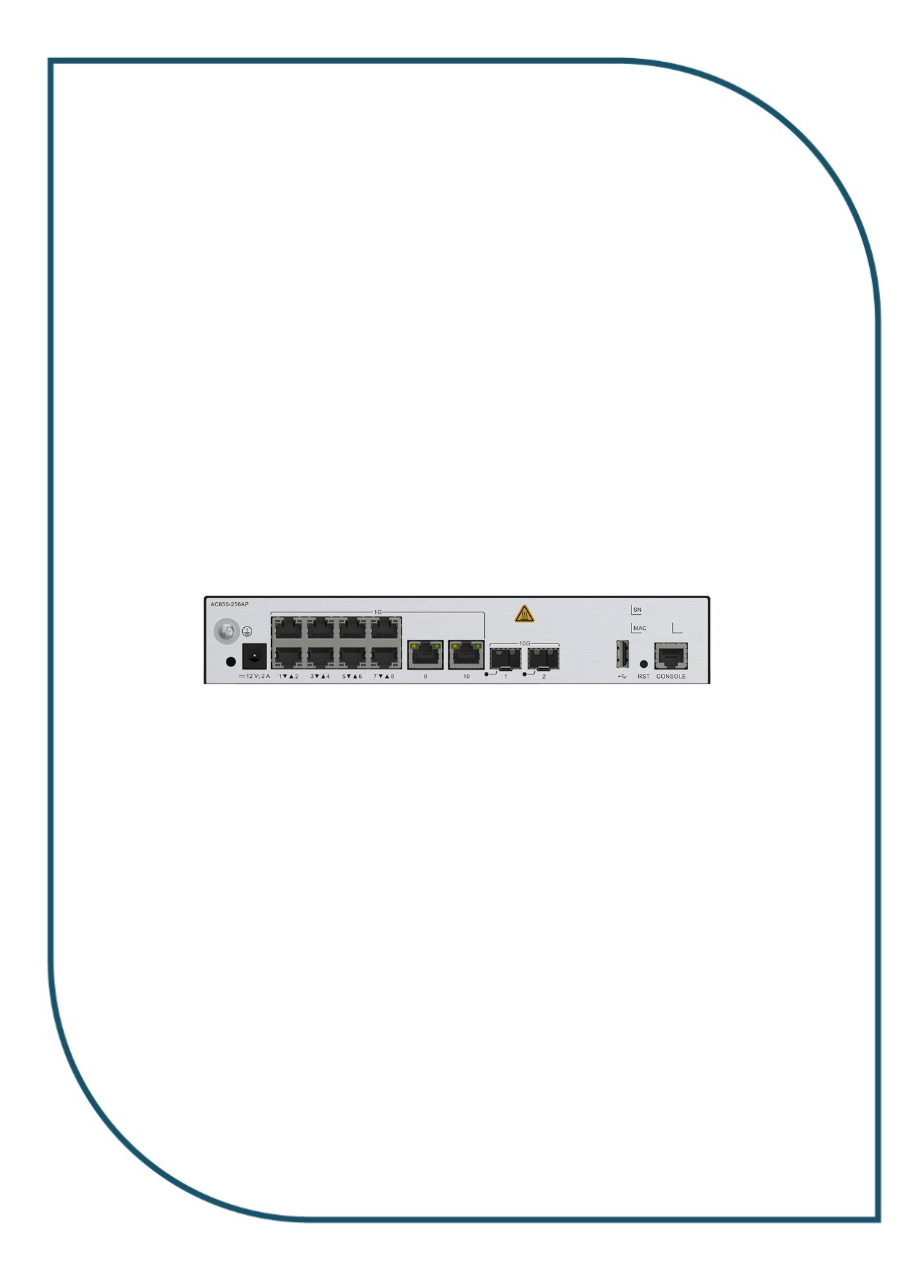

• Maximum number of physical ports on the entire device: 2 x 10GE (SFP+) + 10 x GE (RJ45)
• Long-term operating temperature [°C(°F)]: 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
• Storage temperature [°C(°F)]: –40°C to +70°C (–40°F to +158°F)
• Long-term operating relative humidity [RH]: 5% RH to 95% RH, non-condensing
• Long-term operating altitude [m(ft.)]: –60 m to +5000 m (–196.85 ft to +16404.20 ft)
• Atmospheric pressure [kPa]: 53kPa – 106kPa ETSI 300 019-2-3
• Ground: Ground
• USB: 1 x USB 2.0 (host type A) port
• MTBF [year]: 50 year
• MTTR [hour]: 2 hour

What’s In The Box:

1 x AC650-256AP Access Controller

1 x User Guide
