Description

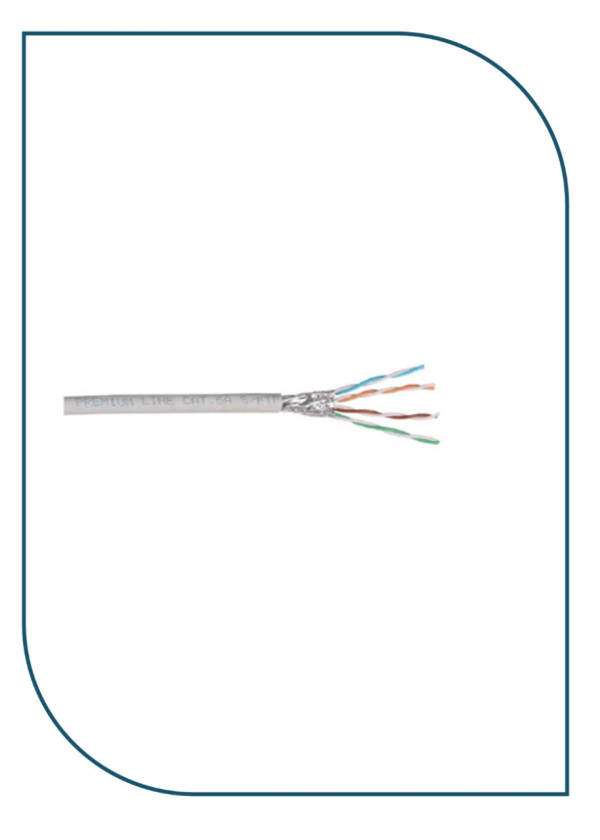

Cable Cat. 6A S/FTP
Premium-Line 10G Cat.6A cabling solution provides transmission performance that exceeds the industry standards for category 6 parameters and supports the operation of 10GBASE-T over 100-meter. 10G Cat.6A cabling solutions are qualified for frequencies up to 500 MHz and deliver guaranteed applications.
Standards:
- ISO/IEC 2nd Edition Amendment 1.2
- CENELEC EN 50288-10-1
- ISO/IEC 61156-5 2nd Edition
- ANSI/TIA-568-C.2
- IEC 60332-1
- IEC 60754-2
- UL listed
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
| Conductor | Material / size | Bare Copper / 23 AWG |
| Insulation | Material | Foam-Skin PE |
| Inner-Shield | Aluminum-Mylar | An Aluminum Foil Screen Around Each Pair |
| Braid | Material | Tinned Copper |
| Sheath | Material | LSOH |
| Diameter | 7.4± 0.3 mm |
Mechanical & Environmental Characteristics
| Bending Radius | ≥ 6D, without load |
| ≥ 8D, with load | |
| Operation Temperature | -20 °C ~+60°C |
| Installation Temperature | 0°C ~+50°C |
| Storage Temperature | -30 °C ~+60°C |
Category 6A S/FTP 600MHz
| PART NO. | DESCRIPTION | PACKING SIZE |
| 209442225 | Premium-Line Category 6A S/FTP installation cable, LSOH, Grey | 45(O.D)×29.8(H) cm |
