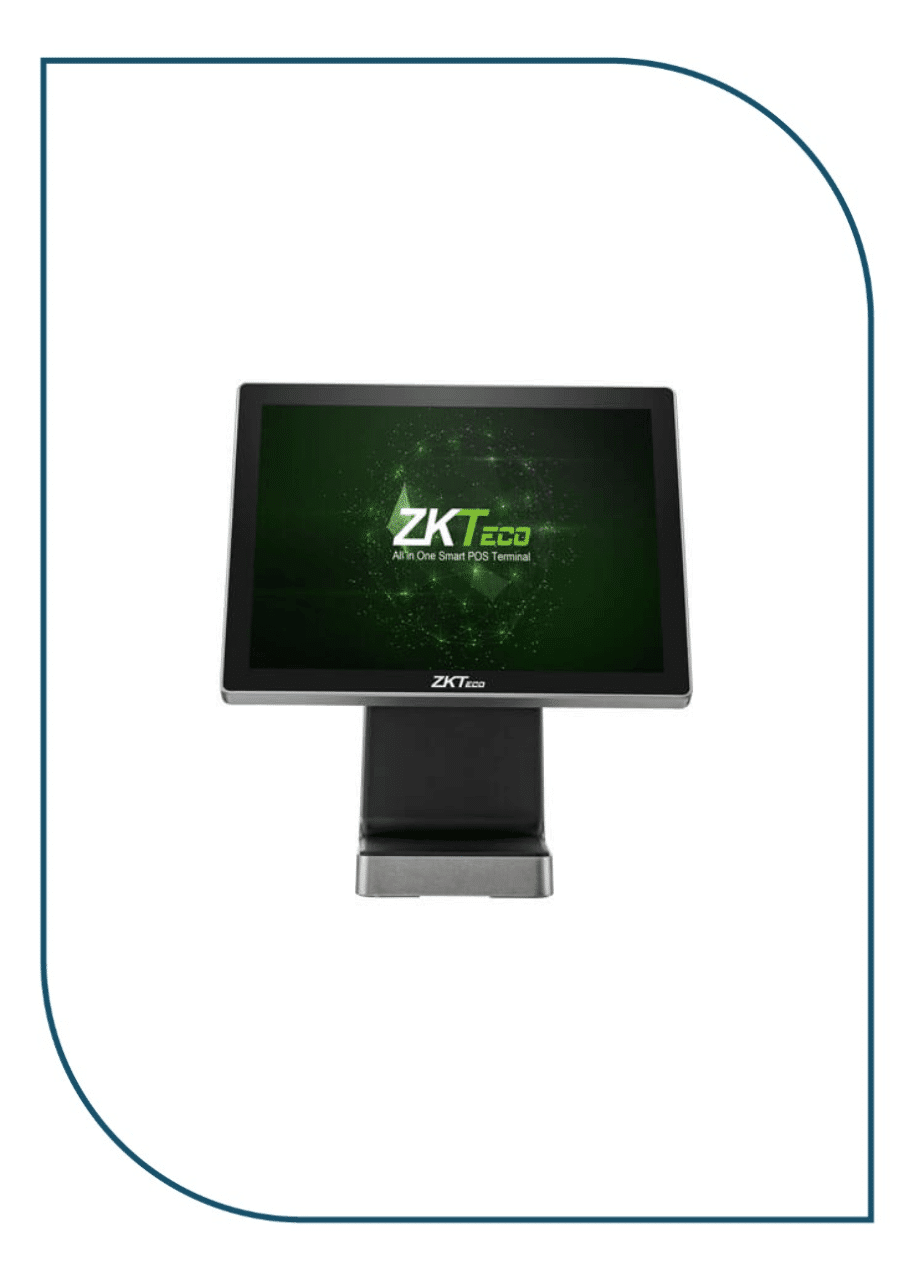

ZK Teco ZKBio710 Smart counter Top Pos terminal

Features :

· All-in-one POS with 15″ True-Flat PCAP Touch Screen

· 15″ True-Flat PCAP Front Touch Screen with Splash-Proof Protection

· Stylish and Compact Design, Available in Black and Gray & White

· Modular Design Built-in with Fingerprint Module, 2D Barcode Scanning Module and MSR

· Hidden Cable Management

· Fanless System with Innovative Heat Pipe Design

· Comprehensive After-Sale Services

· UV Effect Paint Craft

Parameters :

• Model Name

  ZKBio710

  ZKBio730

  ZKBio750

• Printing method

  ZKBio710 : Intel® Celeron® J1900 @ 1.99GHz Optional: Intel ®Celeron® J6412 @ 2.00GHz

  ZKBio730 : Intel ®Core ®i3-6100U @ 2.40GHz

  ZKBio750 : Intel® Core® i5-6200U @ 2.30GHz

• Memory

  4GB RAM Standard, DDR3 & DDR4, Up to 8GB

  64GB SSD Standard, Up to 512GB

  Optional: External Memory Slots (M.2 SATA SSD 120GB & HDD 500GB )

• Display

  Configuration 1: Main: 15″ HD, 1024*768, Capacitive Touch Screen; Second: LED (8C digital tube)

  Configuration 2: Main: 15″ HD, 1024*768, Capacitive Touch Screen; Second: VFD (2*20 lines)

  Configuration 3: Main: 15″ HD, 1024*768, Capacitive Touch Screen; Second: 9.7″ LCD HD, 1024*768

  Configuration 4: Main: 15″ HD, 1024*768, Capacitive Touch Screen; Second: 15″ LCD HD, 1024*768

• Material

  Aluminum alloys, ABS

• Colour

  Black and Gray, White (Optional)

• Operating System

  Support Windows 7, 8, 10, 11

• Dimension

  346*190*402mm

• Packing Dimensions

  405*300*450mm

• Net Weight

  Configuration 1&2: 5.4Kg

  Configuration 3: 6.3Kg

  Configuration 4: 7.8Kg

• Gross Weight

  Configuration 1&2: 7Kg

  Configuration 3: 7.9Kg

  Configuration 4: 9.3Kg

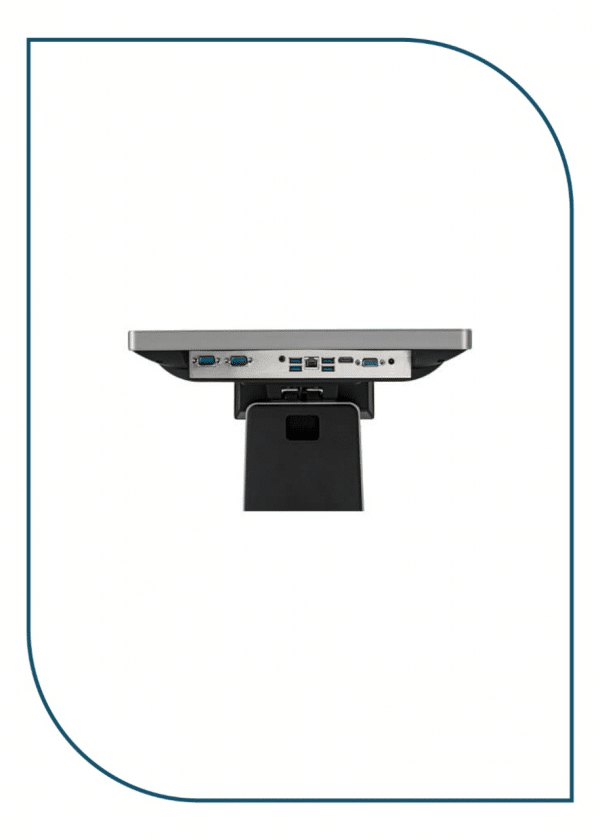

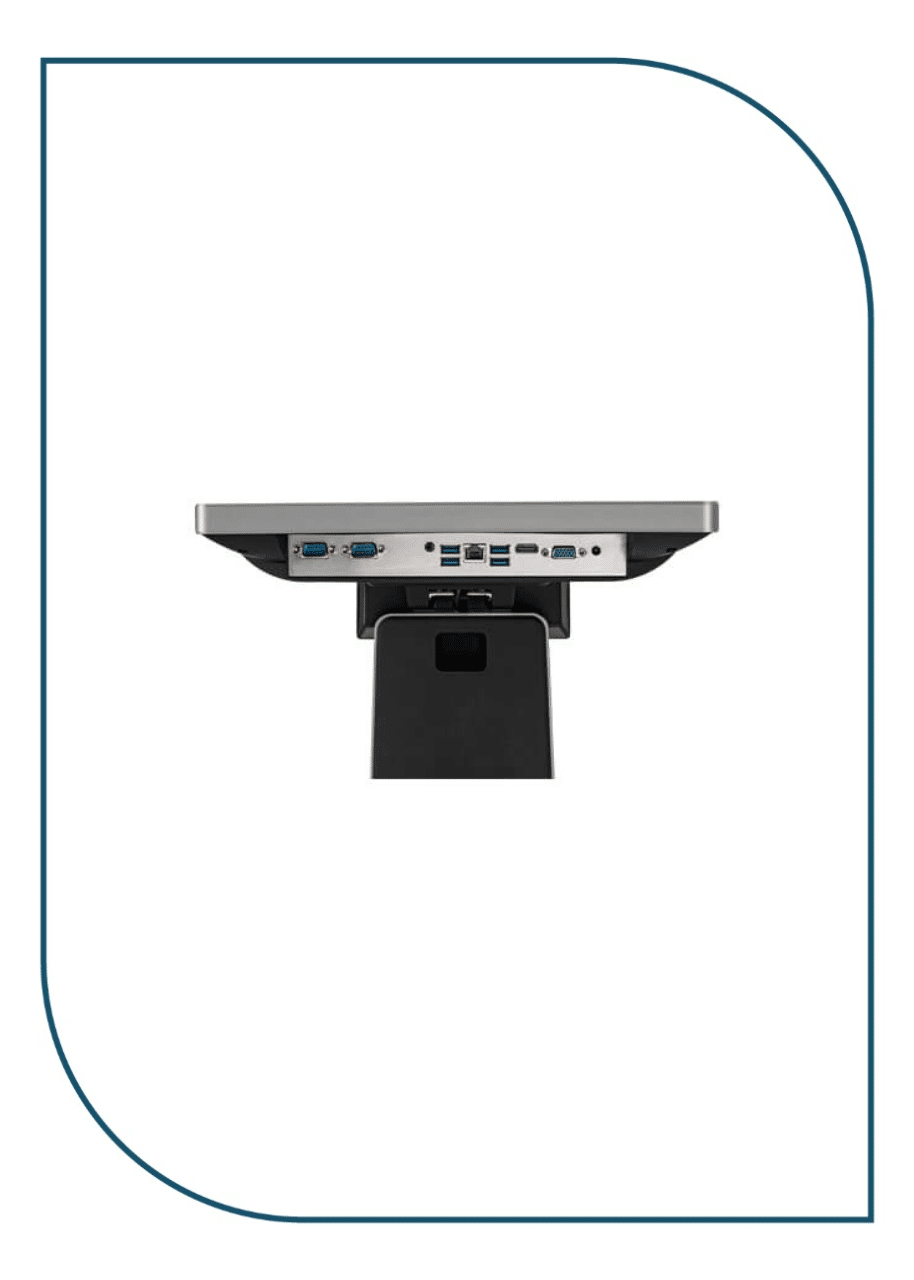

• Interfaces

  ZKBio710 ：1* USB 3.0 / 5* USB 2.0 / 1* RJ45 LAN port / 1* COM port / 1* VGA port / 1* Audio jack / 1* MIC IN / 1* Power port

  ZKBio730：4* USB 3.0 / 2* USB 2.0 / 2* COM port / 1* VGA port / 1* HDMI port / 1* RJ45 LAN port / 1* Audio jack / 1* MIC IN / 1* Power port

  ZKBio750 : 4* USB 3.0 / 2* USB 2.0 / 2* COM port / 1* VGA port / 1* HDMI port / 1* RJ45 LAN port / 1* Audio jack / 1* MIC IN / 1* Power port

• Power Supply

  DC12V/5A

• WiFi

  Single-band 2.4GHz (Optional)

  Dual-band 2.4GHz/5GHz (Optional)

• Bluetooth

  Not Support

• Options & Peripherals

  Built-in fingerprint module

  Built-in 2D barcode scanning module

  Built-in MSR reader

  Built-in RFID reader

• Operating Temperature

  0°C ~ 40°C at 20% ~ 80% Humidity

• Storage Temperature

  -15°C ~ 60°C at 20% ~ 80% Humidity

• Certifications

  ISO9001, CE, FCC, RoHS
