Description

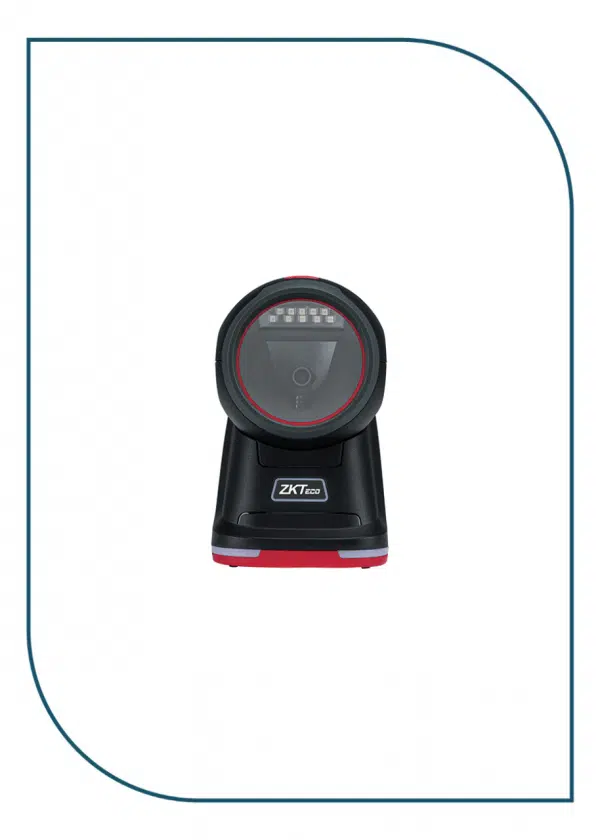

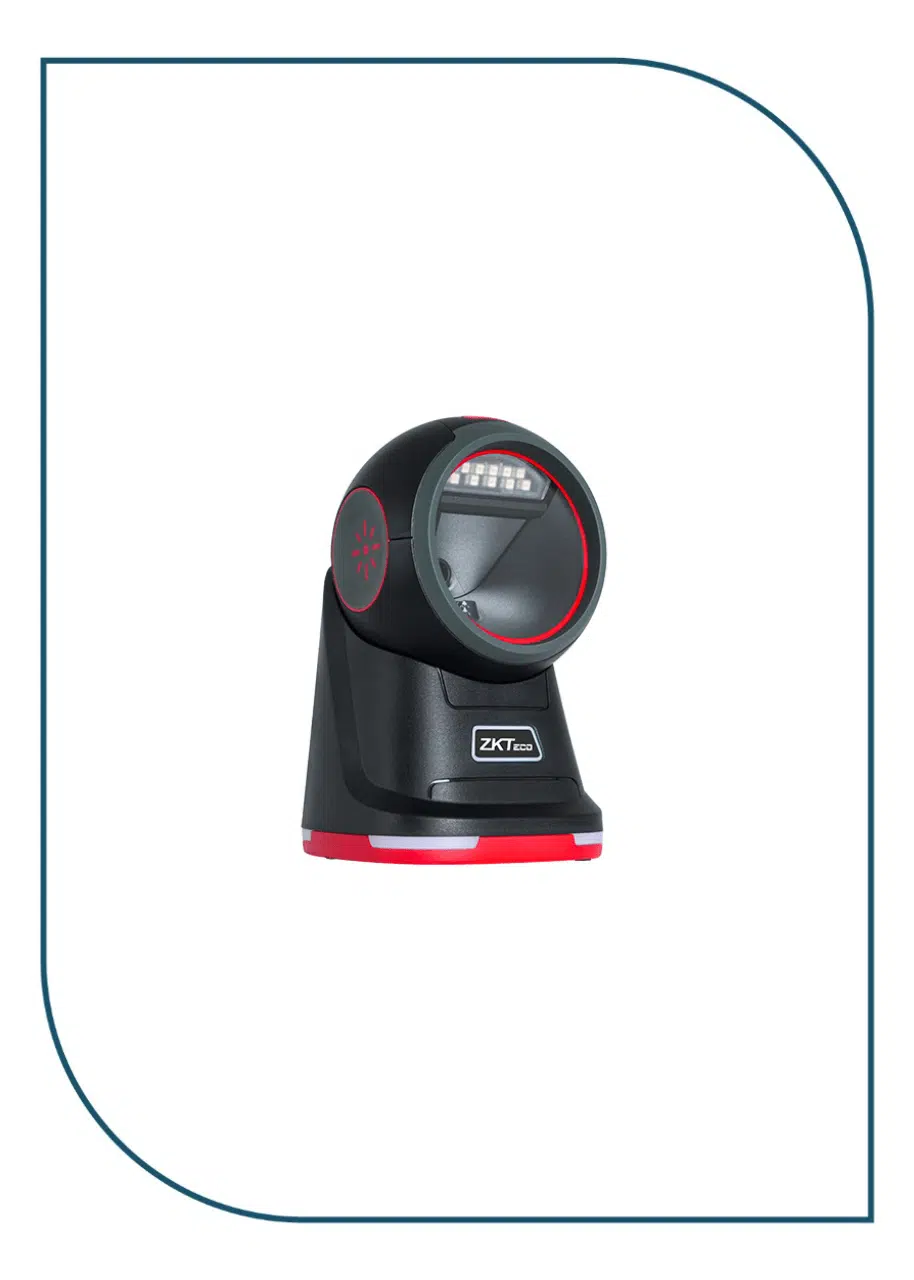

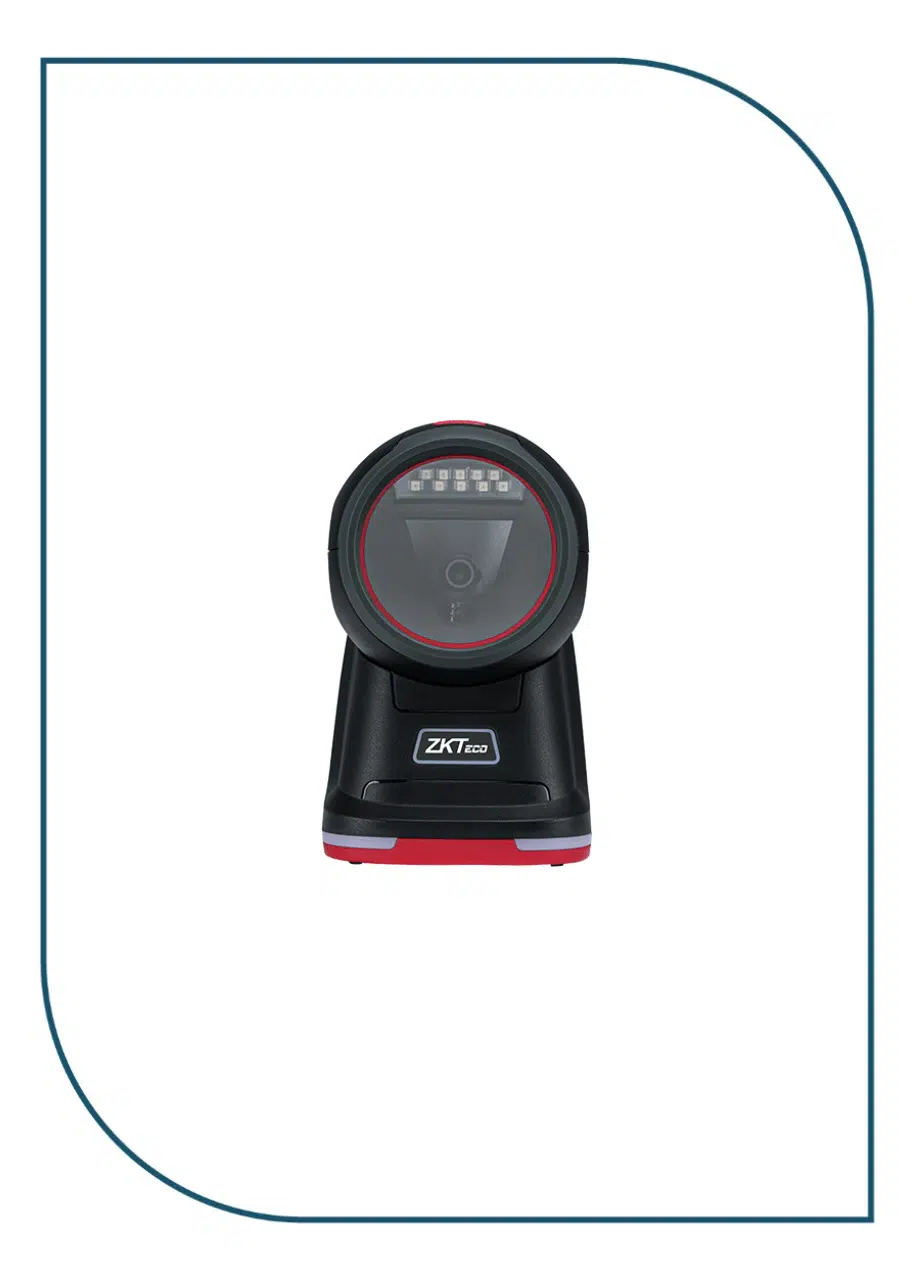

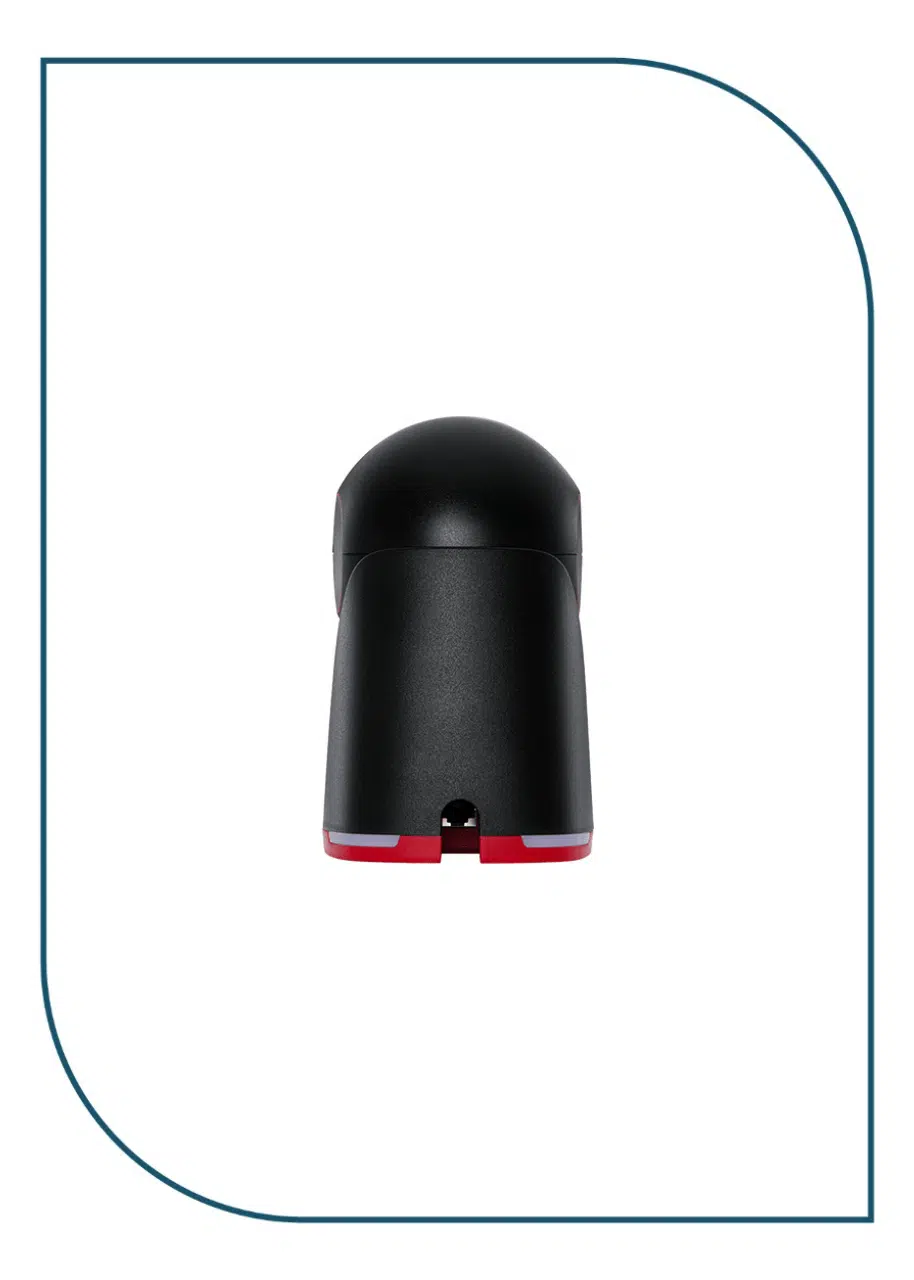

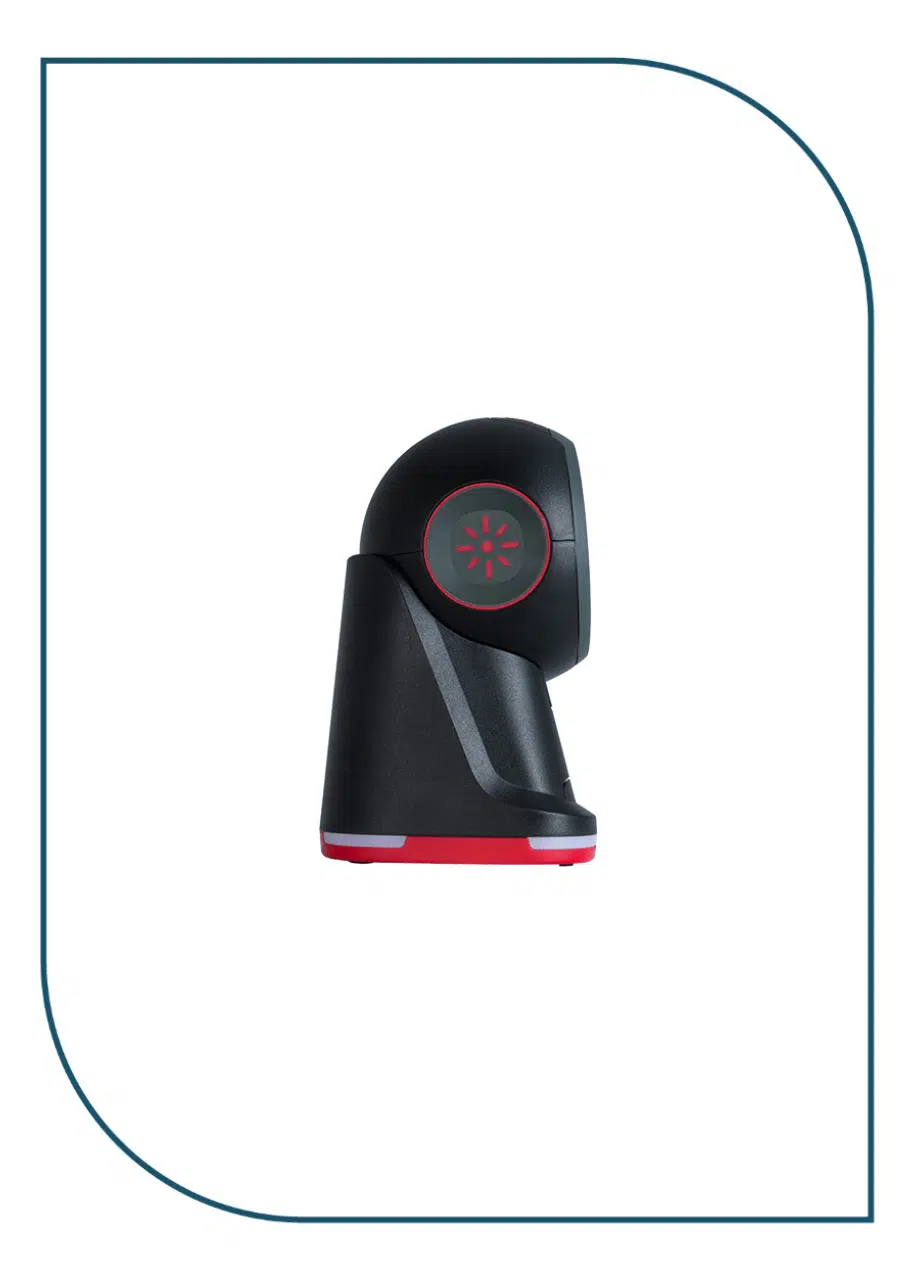

ZKB209
| Parameter | Details |
|---|---|
| Scan Mode | Automatic Scanning |
| DPI | 1024 × 1024 pixels |
| 1D Barcode Support | Codabar, Code39, Code32Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar (Omnidirectional, Limited, Expanded), China Post, Korea Post |
| 2D Barcode Support | Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN |
| Motion Tolerance | 4 m/s |
| Scan Range | 0–280 mm (EAN13, 13mil, 90% PCS) |
| Field of View | Horizontal: 44°, Vertical: 34° |
| Scan Angle | Rotation ±360°, Elevation ±65°, Declination ±65° |
| Illumination | 630nm Red LED |
| Prompt Method | Indicator light + Buzzer (adjustable tone and volume) |
| Manual Trigger (Button) | Supported |
| Interface Type | RJ45 |
| Communication Options | USB (Driver-Free), RS232 |
| Dimensions (L × W × H) | 97 × 98 × 159 mm |
| Weight | 333 g |
| Material | ABS + PC |
| Cable Length | 2 meters |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Drop Resistance | Withstands multiple 1.5 m drops to concrete |
| Ambient Light Immunity | 0 to 100,000 Lux |
| Input Voltage | DC 5V ±5% |
| Operating Current | 240mA |
