Description

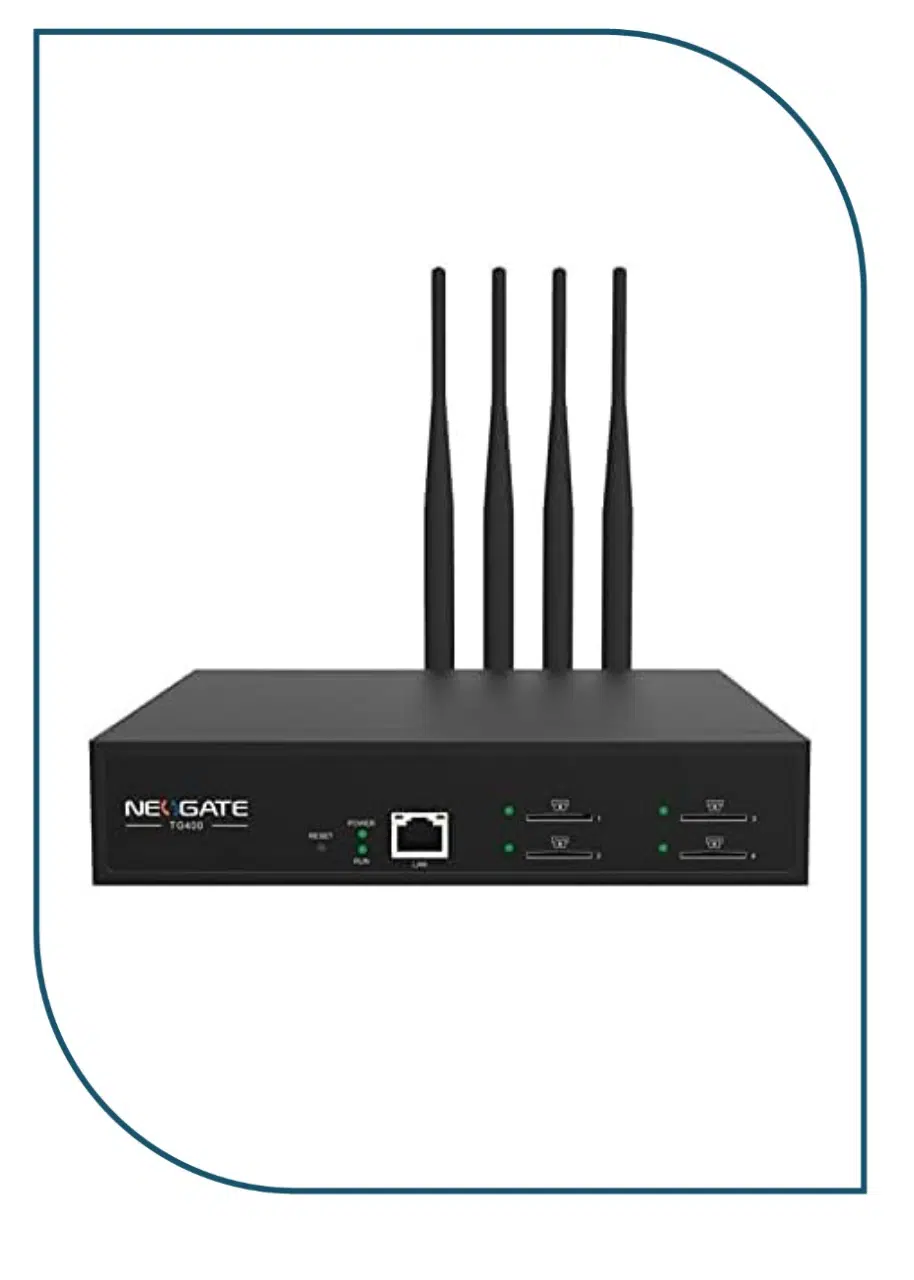

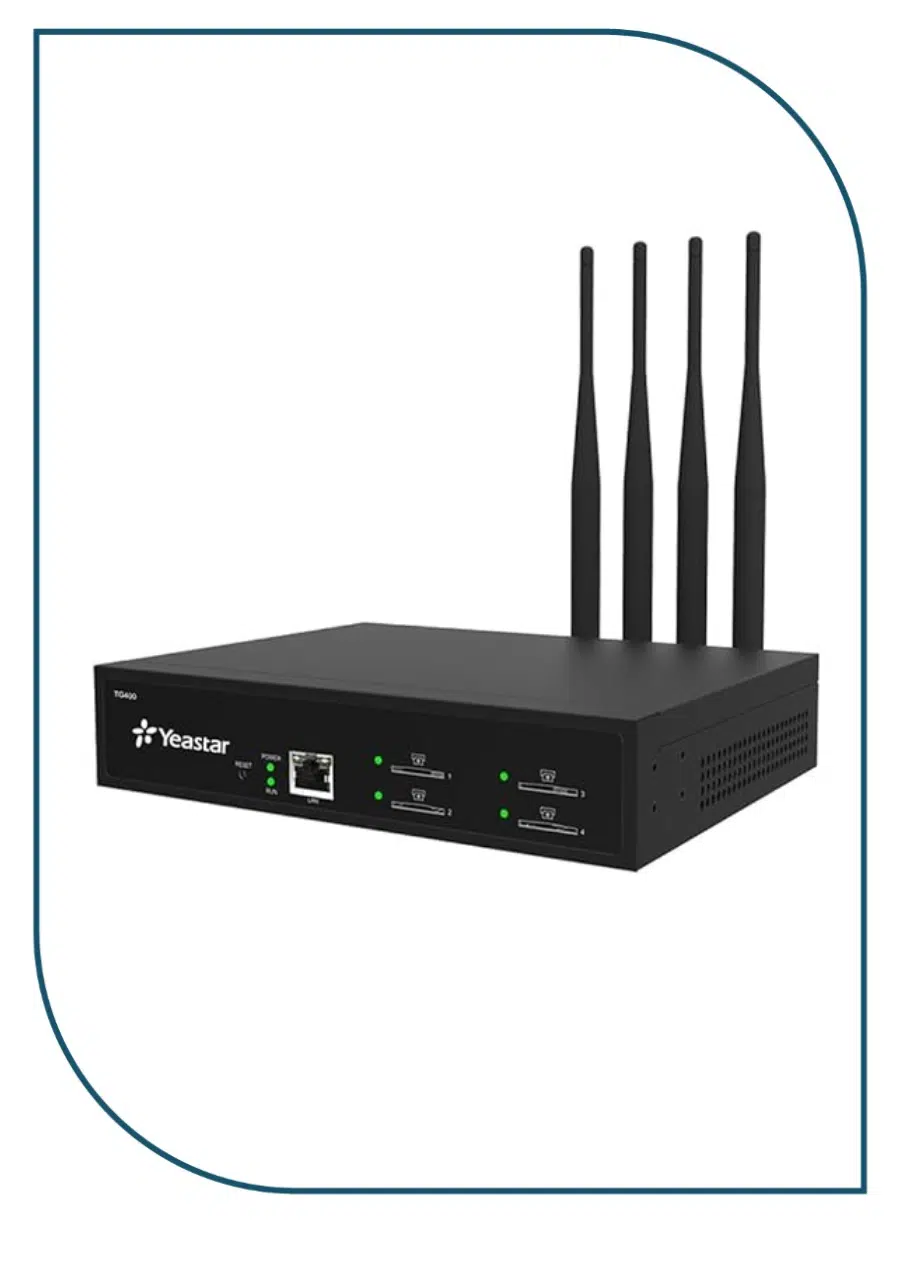

The Yeastar NeoGate TG400L is a 4-channel LTE/4G VoIP gateway designed to connect mobile LTE/3G/GSM networks with SIP / VoIP telephony systems. It’s ideal for businesses that need mobile trunking, backup telephony connectivity, or a way to reduce call costs to mobile numbers by routing calls through SIM-based mobile networks instead of traditional fixed lines.
The TG400L supports 4 LTE channels / 4 SIM cards, allowing simultaneous voice communication between VoIP and mobile networks in both directions: VoIP-to-LTE/GSM and LTE/GSM-to-VoIP. It is commonly deployed in SMBs, branch offices, retail stores, service centers, logistics environments, and remote locations where mobile connectivity is either more cost-effective or more practical than fixed-line telephony.
As part of Yeastar’s TG Series mobile gateways, the TG400L supports SIP and IAX2 protocols and works with a wide range of IP PBX systems, hosted PBX platforms, softswitches, and SIP servers. It includes a strong telephony feature set such as incoming/outgoing call routing, VoIP trunk grouping, call back, hotline, blacklist, AutoCLIP, call duration limitation, call transfer, CDR, USSD, and SMS sending/receiving including bulk SMS. It also supports Open API for SMS and USSD integration.
For mobile connectivity, the TG400L supports LTE / 4G voice calls with backward support for 3G / GSM, depending on the module version and supported frequency bands. It also supports VoLTE where available from the carrier. Voice quality and VoIP interoperability are supported through ITU-T G.168 echo cancellation, G.711 / G.722 / G.726 / G.729A / GSM / ADPCM / Speex codecs, and DTMF via RFC2833, SIP INFO, and In-band.
On the networking side, the TG400L includes 2 × 10/100 Mbps Ethernet interfaces, along with OpenVPN, VLAN, QoS, firewall, DDNS, static route, static NAT, STUN, backup/restore, packet capture, and web-based management. It also supports hot-swappable SIM cards and external antennas / 4-in-1 antenna splitter support, which makes it a practical fit for business environments that rely heavily on mobile communication or need resilient telephony backup.
Overall, the Yeastar TG400L is a flexible 4-port LTE VoIP gateway for businesses that want to integrate mobile networks into their SIP telephony environment, lower mobile calling costs, and add a reliable alternative voice route for business continuity.
| Specification | Details |
|---|---|
| Brand | Yeastar |
| Model | NeoGate TG400L |
| Product Type | LTE / 4G VoIP Gateway |
| Gateway Type | LTE / GSM to VoIP & VoIP to LTE / GSM |
| Channels / SIM Capacity | 4 channels / 4 SIM cards |
| Supported Mobile Networks | LTE / 4G with backward support for 3G / GSM depending on module / region |
| LTE Bands | Module-dependent (commonly EC21-E / EC25-E variants) |
| VoLTE Support | Yes, where supported by the operator |
| Protocols | SIP (RFC3261), IAX2 |
| Transport | UDP, TCP, TLS, SRTP |
| Voice Codecs | G.711(a/u), G.722, G.726, G.729A, GSM, ADPCM, Speex |
| DTMF Modes | RFC2833, SIP INFO, In-band |
| Echo Cancellation | ITU-T G.168 LEC |
| Calling Type | Termination (VoIP to LTE/GSM), Origination (LTE/GSM to VoIP) |
| SMS / USSD | SMS send/receive, bulk SMS, USSD |
| Routing Features | Incoming/outgoing routing, VoIP trunk group, callback, AutoCLIP, blacklist, hotline, call duration limitation |
| LAN Interfaces | 2 × 10/100 Mbps Ethernet interfaces |
| NAT Traversal | Static NAT, STUN |
| Network Features | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN |
| Management Protocols | FTP, TFTP, HTTP, HTTPS, SSH |
| API Support | Open API for SMS and USSD |
| SIM Handling | Hot-swappable SIM cards |
| Antenna Support | External antennas, 4-in-1 antenna splitter support |
| Power Supply | AC 100–240V, 50/60Hz, 1.5A max |
| Dimensions | 213 × 160 × 44 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 65°C |
| Humidity | 10% to 90% non-condensing |
| Typical Use | LTE trunking, mobile call routing, backup telephony, SIP-to-mobile integration |
