Description

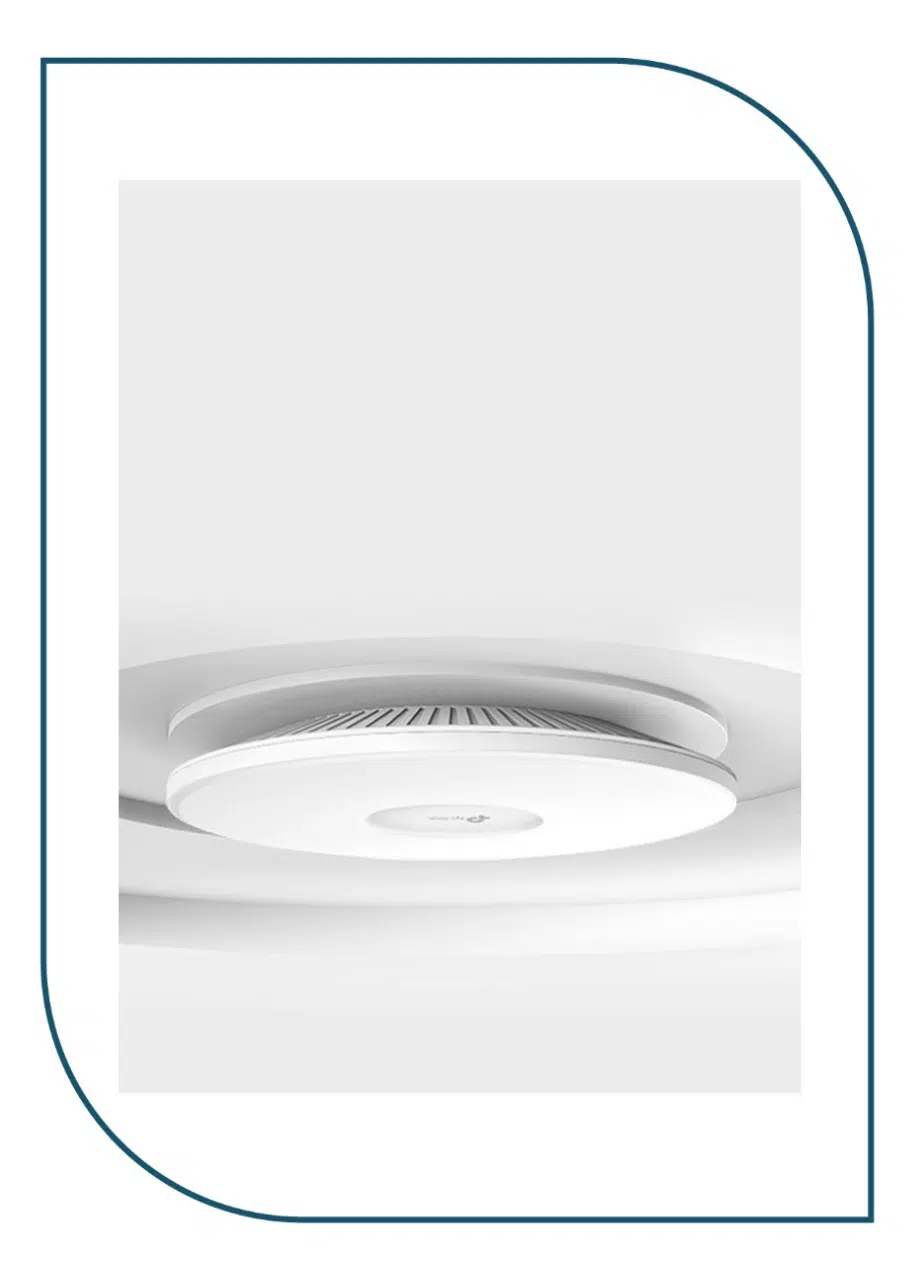

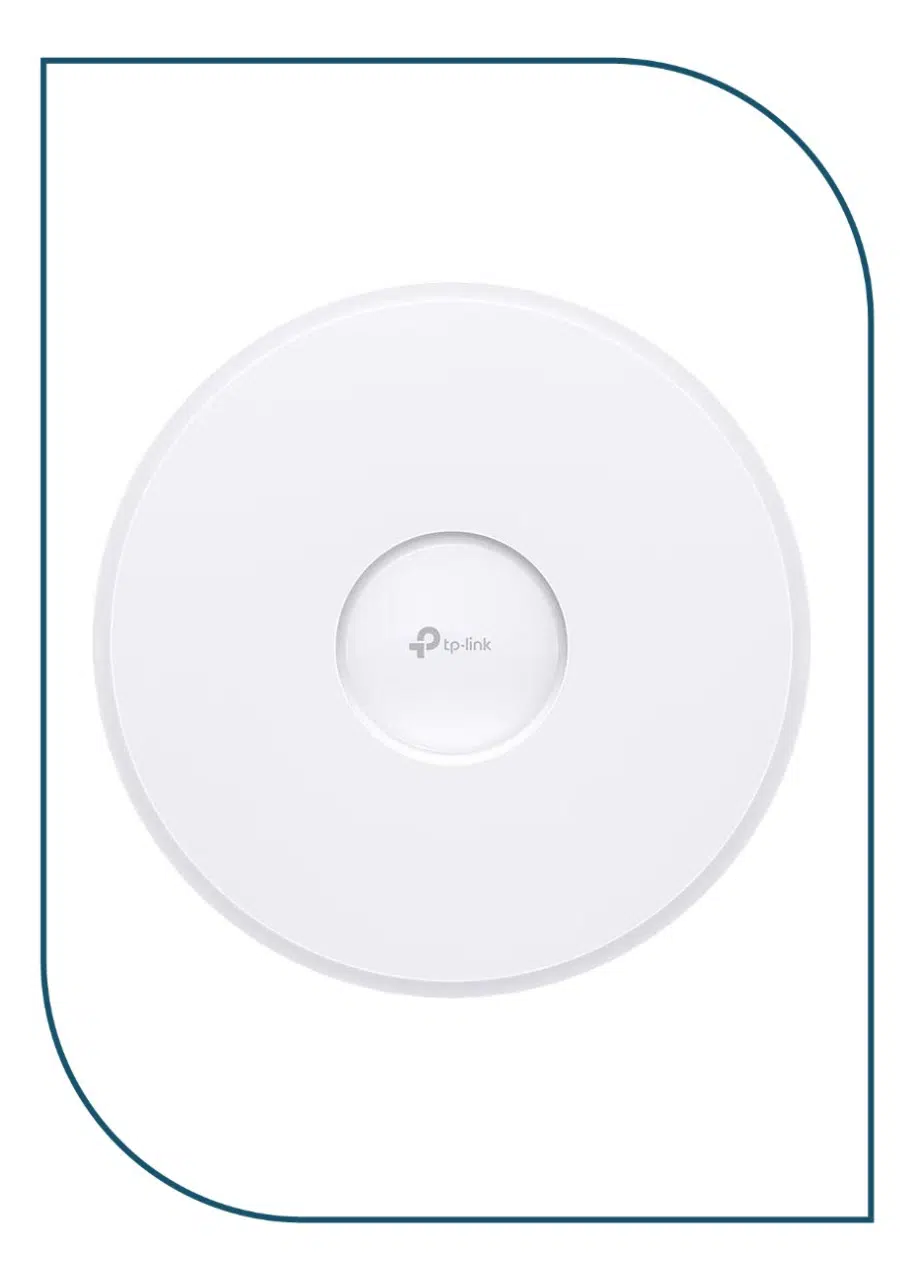

The TP-Link Omada EAP770 is a Tri-Band Wi-Fi 7 Ceiling Mount Access Point designed for high-performance business and enterprise wireless networks. It operates across 2.4GHz, 5GHz, and 6GHz bands and supports Wi-Fi 7 features such as Multi-Link Operation (MLO), 4K-QAM, Multi-RU, and 320 MHz channels.
Key Features
- Wi-Fi Standard: Wi-Fi 7 — IEEE 802.11 a/b/g/n/ac/ax/be
- Tri-Band: 2.4GHz + 5GHz + 6GHz
- Wireless Speed: Up to 574 Mbps + 2,880 Mbps + 5,760 Mbps (EU/BE9300 version)
- 1 × 10GbE Ethernet port for high-speed wired uplink
- 320 MHz channel bandwidth for higher throughput
- MLO (Multi-Link Operation) for improved performance and reduced latency
- 4K-QAM for higher data rates
- MU-MIMO + OFDMA
- Beamforming & Airtime Fairness
- Supports up to 24 SSIDs — 8 per band
- Supports up to 128 clients per band
- WPA/WPA2/WPA3 security
- VLAN, Rogue AP Detection, Captive Portal, MAC Authentication
- Centralized management through Omada Cloud, OC200, OC300, or Software Controller
- 802.3bt PoE or 12V/2.5A DC power
- Ceiling or wall mounting
Specifications
| Specification | Details |
|---|---|
| Model | EAP770 |
| Brand | TP-Link |
| Product Type | Wi-Fi 7 Access Point |
| Series | Omada |
| Wi-Fi Class | BE9300 |
| Bands | 2.4GHz / 5GHz / 6GHz |
| 2.4GHz Speed | 574 Mbps |
| 5GHz Speed | 2,880 Mbps |
| 6GHz Speed | 5,760 Mbps |
| Ethernet | 1 × 10GbE |
| Wi-Fi Standard | 802.11 a/b/g/n/ac/ax/be |
| MLO | Yes |
| 4K-QAM | Yes |
| Channel Width | Up to 320 MHz |
| MU-MIMO | Yes |
| OFDMA | Yes |
| Max Clients | 128 per band |
| SSID Support | 24 |
| Security | WPA/WPA2/WPA3 |
| Management | Omada App, Cloud & Hardware/Software Controllers |
| Power | 802.3bt PoE / 12V DC |
| Mounting | Ceiling / Wall |
| Dimensions | 220 × 220 × 32.5 mm |
| Bluetooth | Bluetooth 5.2 |
