Description

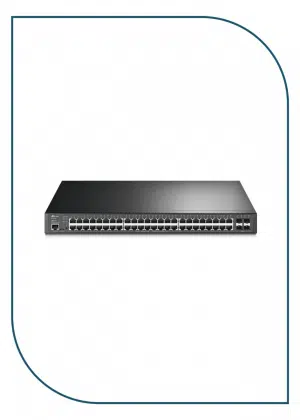

TL-SG3452p
| HARDWARE FEATURES | |
|---|---|
| Interface | • 48× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port • PoE Power Budget: 384 W* |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • V1: 485.4 W (110 V/60 Hz) (with 384 W PD connected); 52.53 W (110 V/60 Hz) (no PD connected)
• V2: 482.8 W (110 V/60 Hz) (with 384 W PD connected) • V3: 464.2 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation | • V1: 1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 179.13 BTU/hr (110 V/60 Hz) (no PD connected)
• V2: 1647.5 BTU/hr (110 V/60 Hz) (with 384 W PD connected) • V3: 1584.08 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues
• 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
