Description

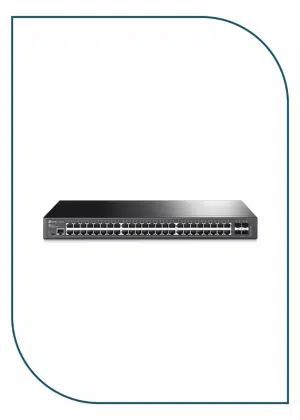

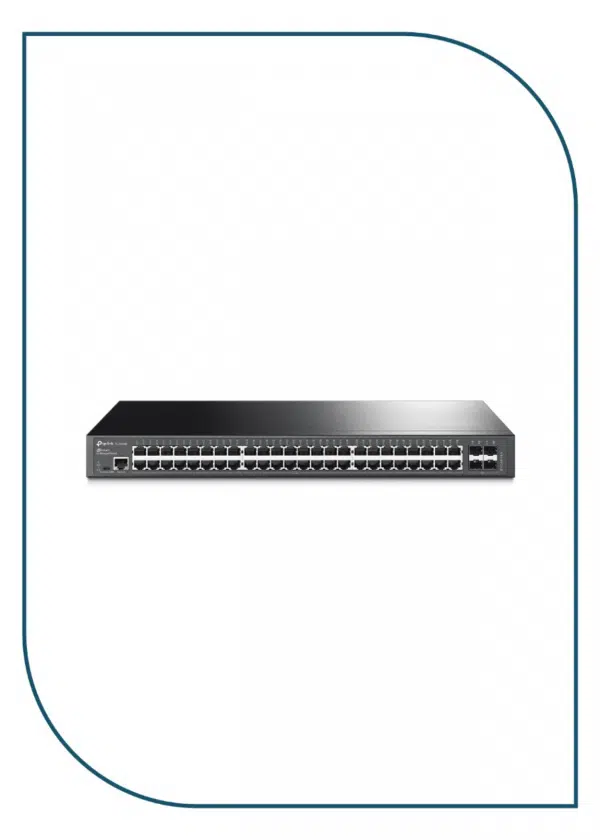

TL-SG3452
| HARDWARE FEATURES | |
|---|---|
| Interface | • 48× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3×8.7×1.7 in (440×220×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.8 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 111.91 BTU/h (220 V / 50 Hz) |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues
• 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
