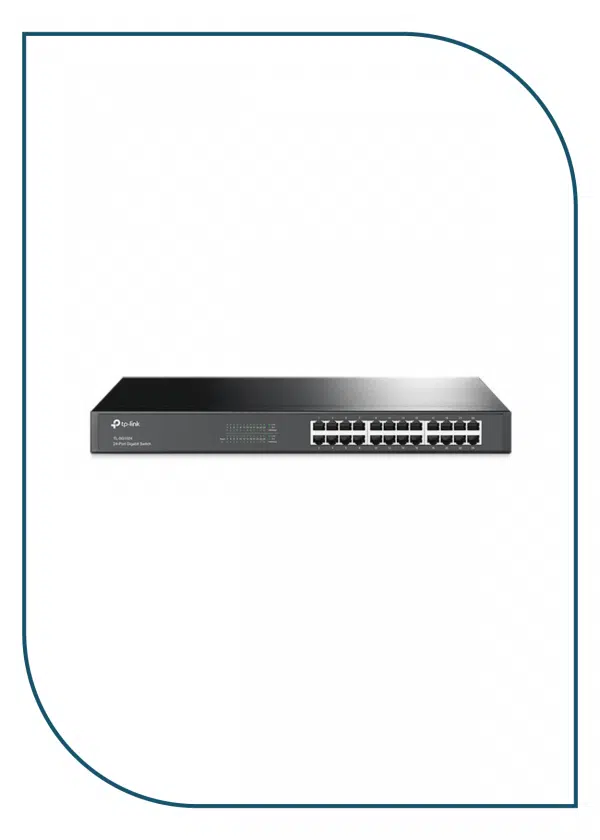

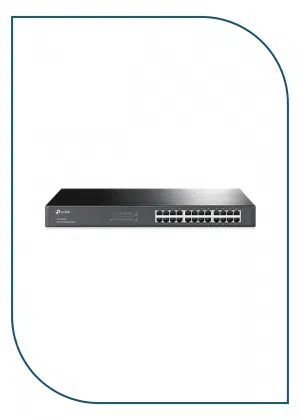

TL-SG1024 24-Port Gigabit Rackmount Switch

TL-SG1024

Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network.

WhatsApp Button Call for Price

Availability: In Stock
SKU:TL-SG1024

All prices include VAT

Description

TL-SG1024

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 13.62W
Max Heat Dissipation 46.44BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Advanced Functions • Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS*
*Only for V11 and later version
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
