Description

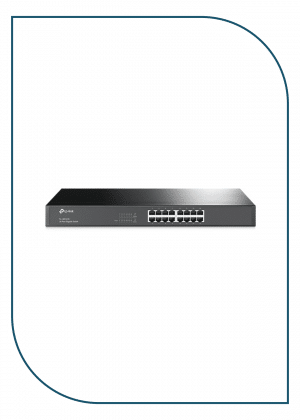

TL-SG1016
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x |
| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100 m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in.
(440*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 10.4W |
| Max Heat Dissipation | 35.6BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Advanced Functions | • Isolation Mode: Ports 1–14
• Loop Prevention: Ports 1–16 |
| Jumbo Frame | 10KB |
| QoS | 802.1p/DSCP QoS (Only applies to V12 and later versions) |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 16-Port Gigabit Rackmount Switch
Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
