Description

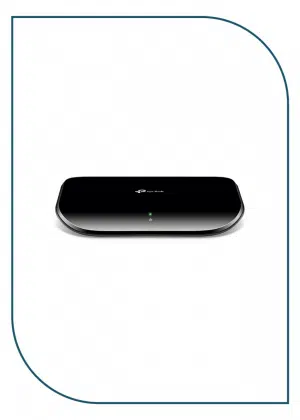

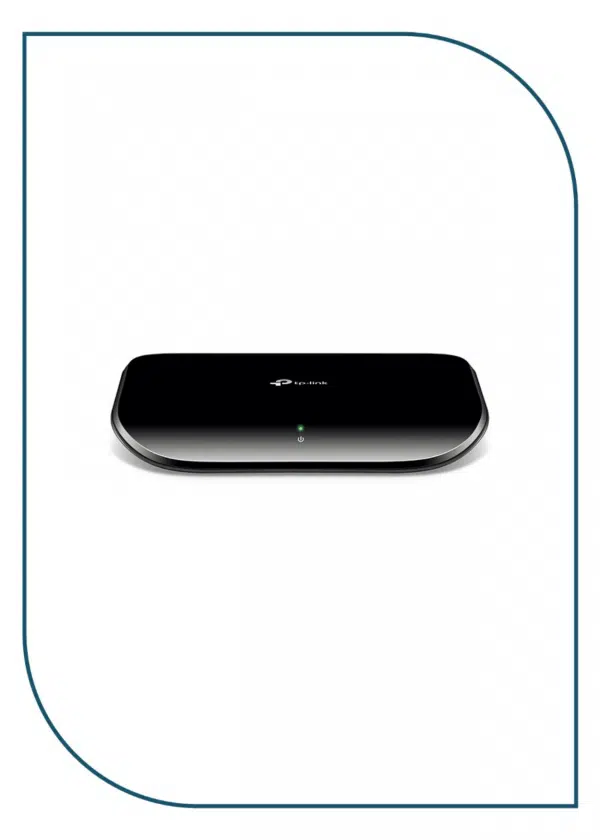

TL-SG1005D
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions ( W x D x H ) | 5.5×3.5×0.9 in. (140×88×23 mm) |
| Max Power Consumption | 3.1W (220V/50Hz) |
| Max Heat Dissipation | 10.57 Btu/hr |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store and Forward |
| Advanced Functions | Green Technology 802.3x Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 5-Port Gigabit Desktop Switch TL-SG1005D Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
