Description

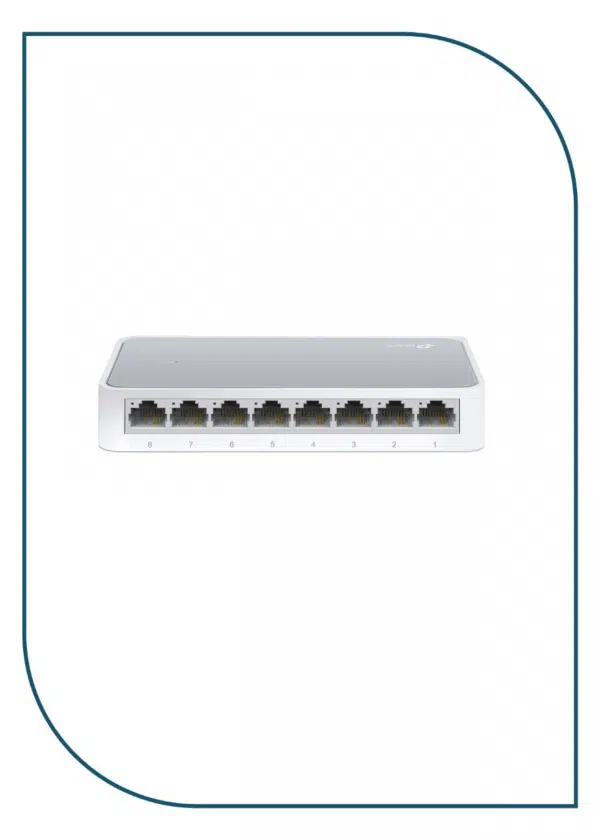

TL-SF1008D
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
| External Power Supply | 100-240VAC, 50/60Hz |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex |
| LED Indicator | Power, 1, 2, 3, 4, 5, 6, 7, 8 |
| Dimensions ( W x D x H ) | 5.3*3.1*0.9 in. (134.5*79*22.5mm) |
| Max Power Consumption | 2.05W(220V/50Hz) |
| Max Heat Dissipation | 6.99BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology 802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 8-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
