Description

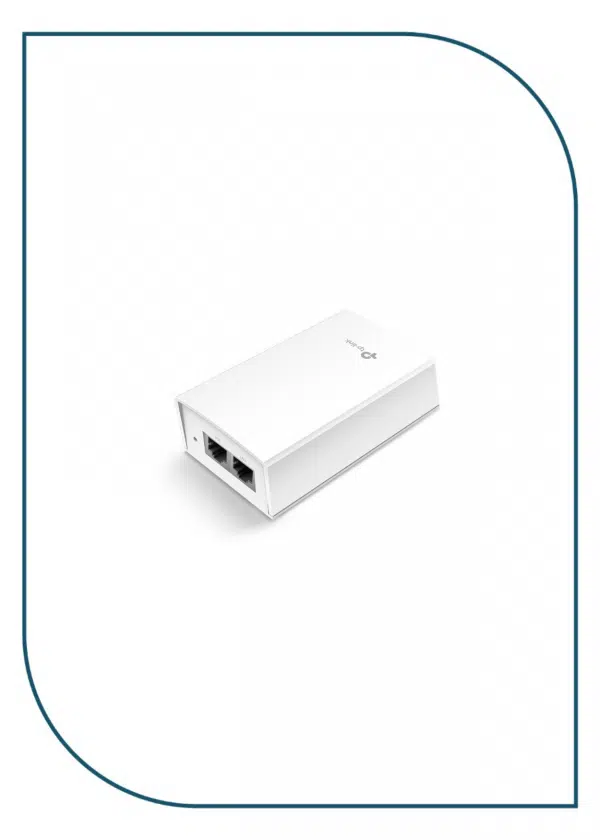

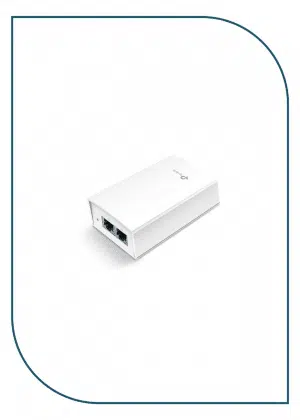

TL-POE4824G
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100/1000Mbps RJ45 Shielded Data IN Port
1 10/100/1000Mbps RJ45 Shielded Passive PoE Port 1 100~240V / 50~60Hz AC Power Input Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 4.3 × 2.3 × 1.5 in.
(110×57×38.8 mm) |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 48V 24W Passive PoE Adapter TL-POE4824G
Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
