Description

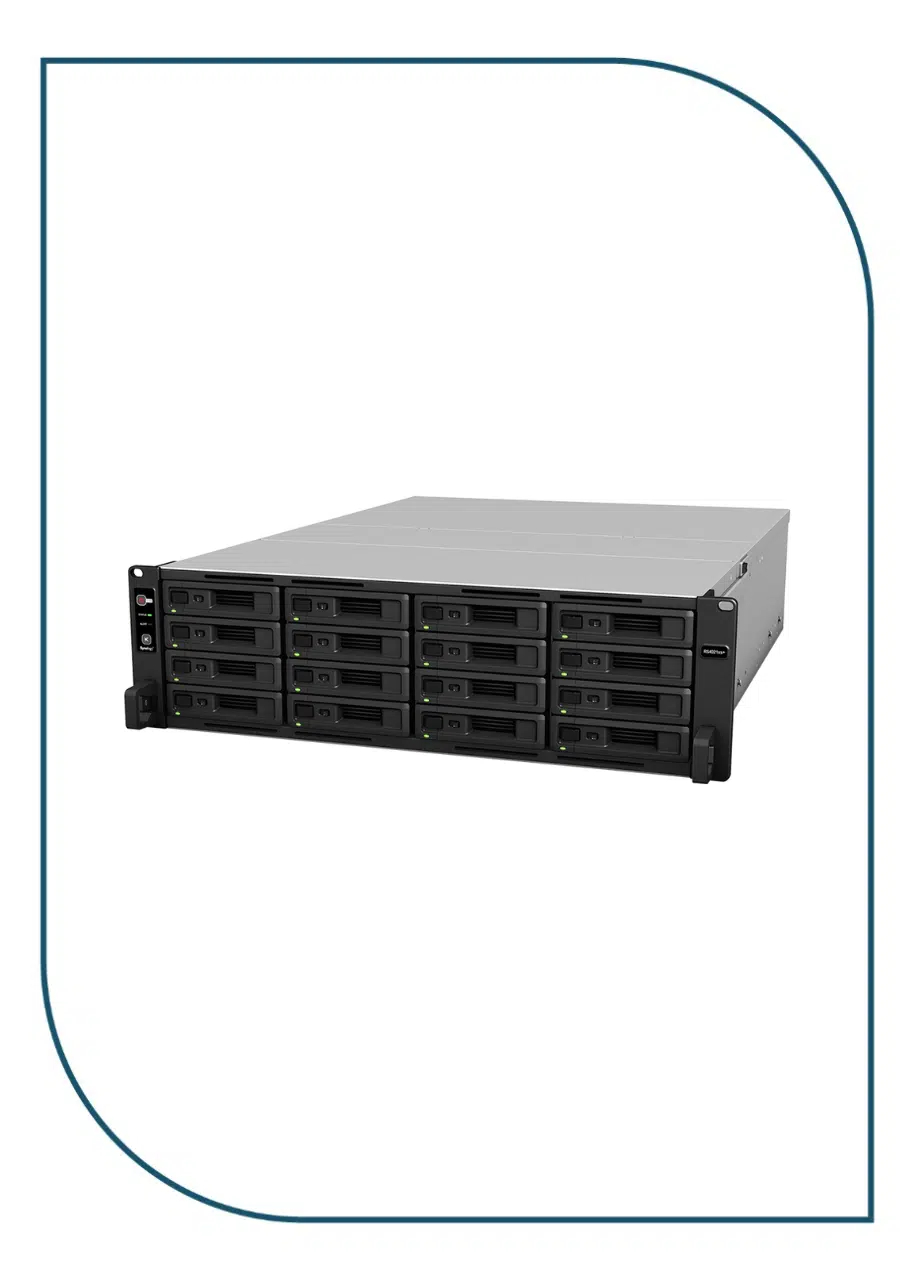

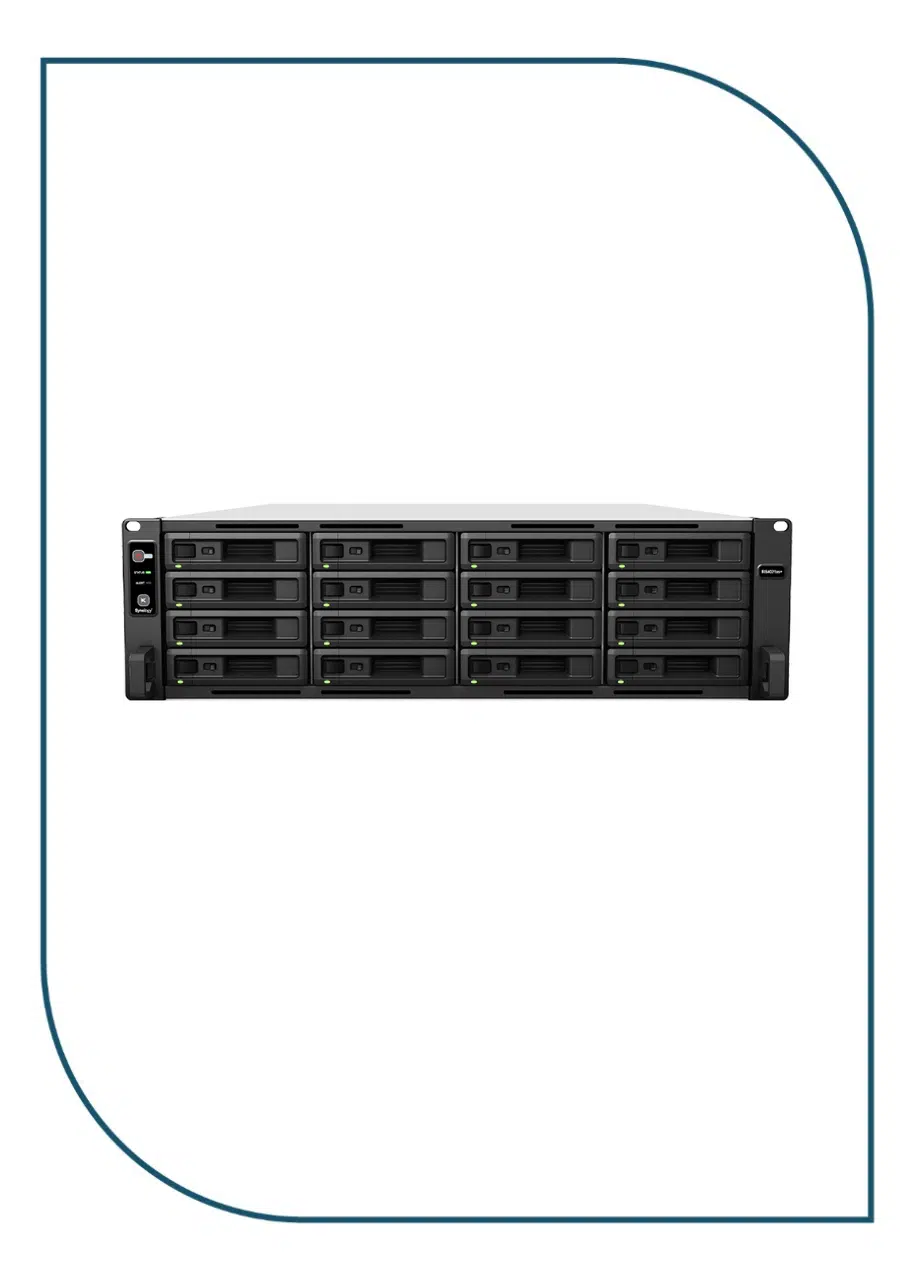

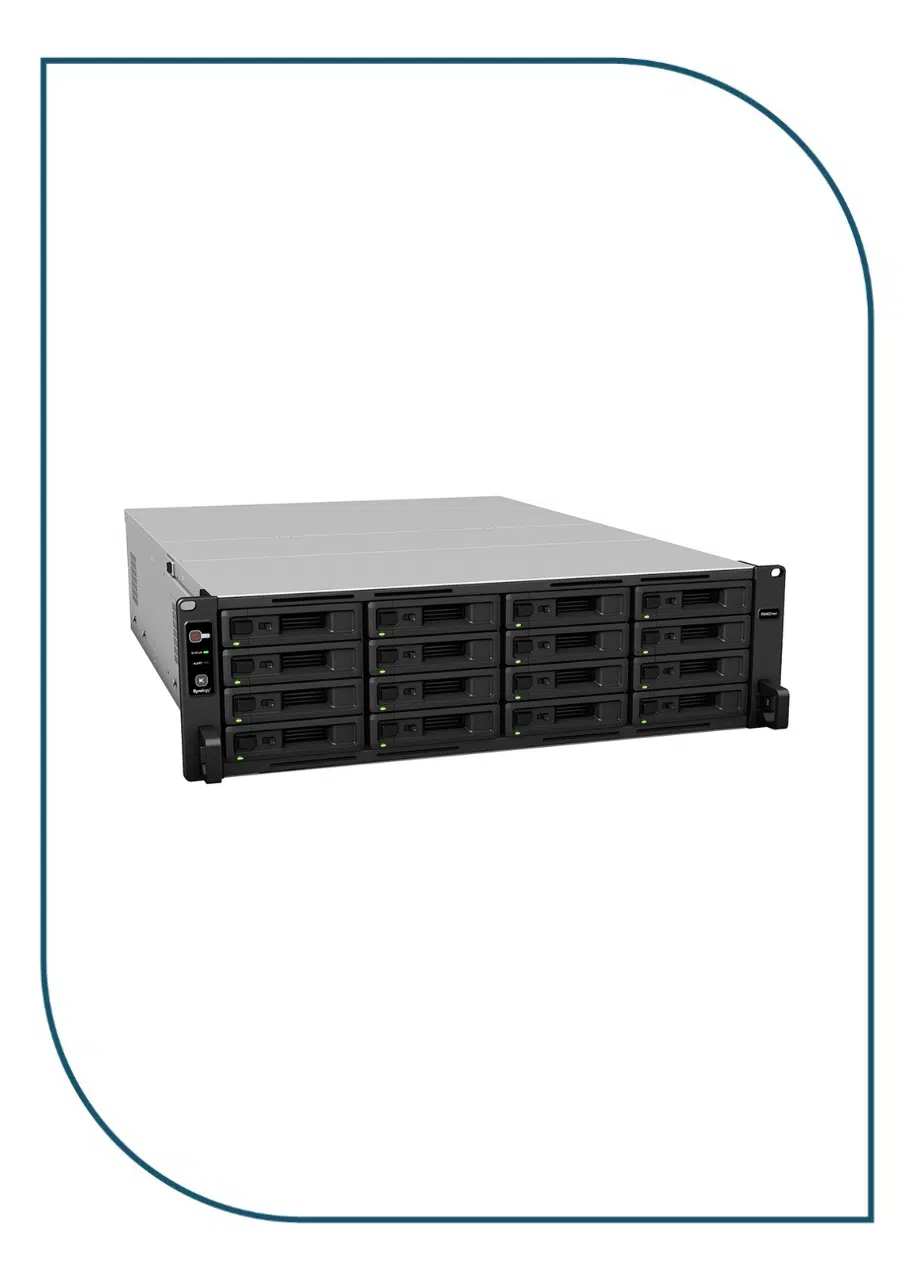

RS4021XS+
Key Features :
-
16-bay enterprise rackmount NAS for data centers
-
High-performance architecture for demanding workloads
-
Designed for virtualization and enterprise applications
-
Advanced data protection and RAID support
-
Scalable storage with expansion unit compatibility
-
Reliable 24/7 operation with Synology DSM
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | Intel Xeon D-1541 |
| CPU Quantity | 1 | |
| CPU Core | 8 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 16 GB DDR4 ECC UDIMM |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 40 (RX1217 x 2) | |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 4 |
| RJ-45 10GbE LAN Port | 2 | |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 2 | |
| Expansion Port Type | Infiniband | |
|
PCIe
|
PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
- 1Power button and indicator
- 2Alert Off Button
- 3Drive tray
- 4Drive status indicator
- 5PSU fan
- 6Power Port
- 7PSU Indicators & Alert Off Buttons
- 8Console port
- 91GbE/10GbE RJ-45 Ports
- 10USB 3.2 Ports
- 11Expansion port
- 12PCIe expansion slot
- 13Reset button
