Description

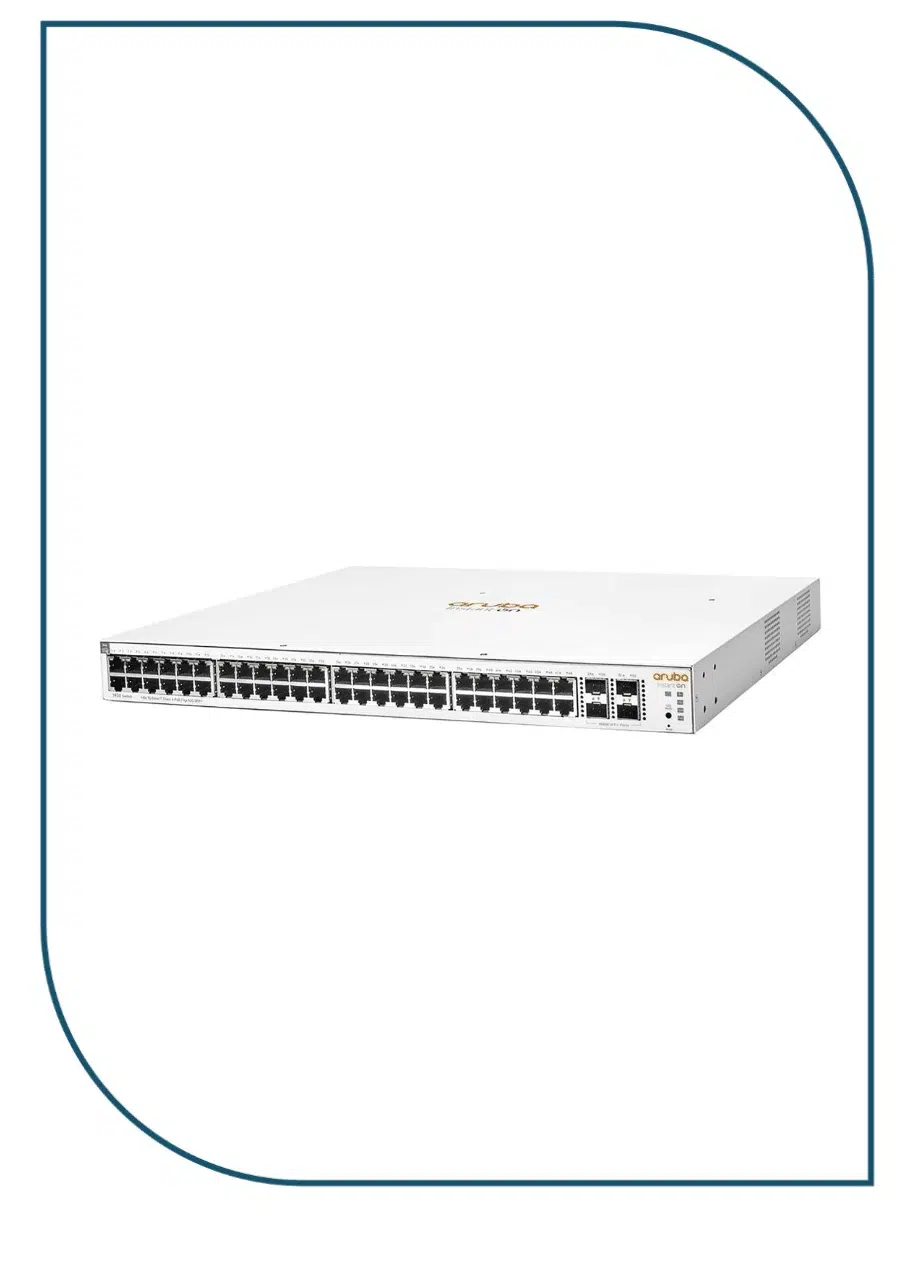

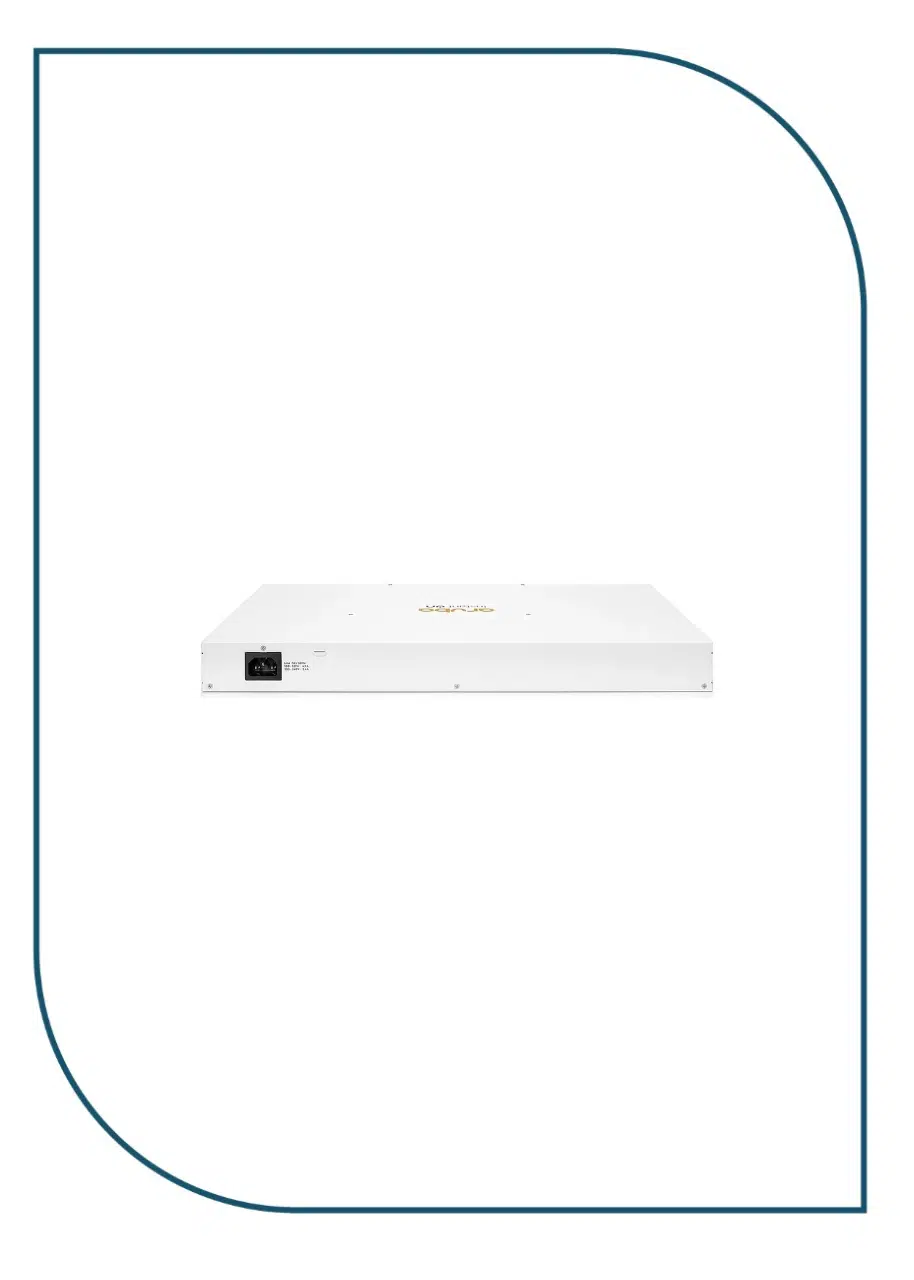

JL686A
JL686A Specification |
|
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports |
| Dimension | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 130.95 Mpps |
| Switching capacity | 176 Gbps |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative
humidity |
15% to 95% @ 104°F (40°C) |
| Nonoperating/Storage
temperature |
-40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage
relative humidity |
15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Idle power | 34.5 W |
| PoE | 370 W Class 4 PoE |
| Power Supply | Internal power supply |
