Description

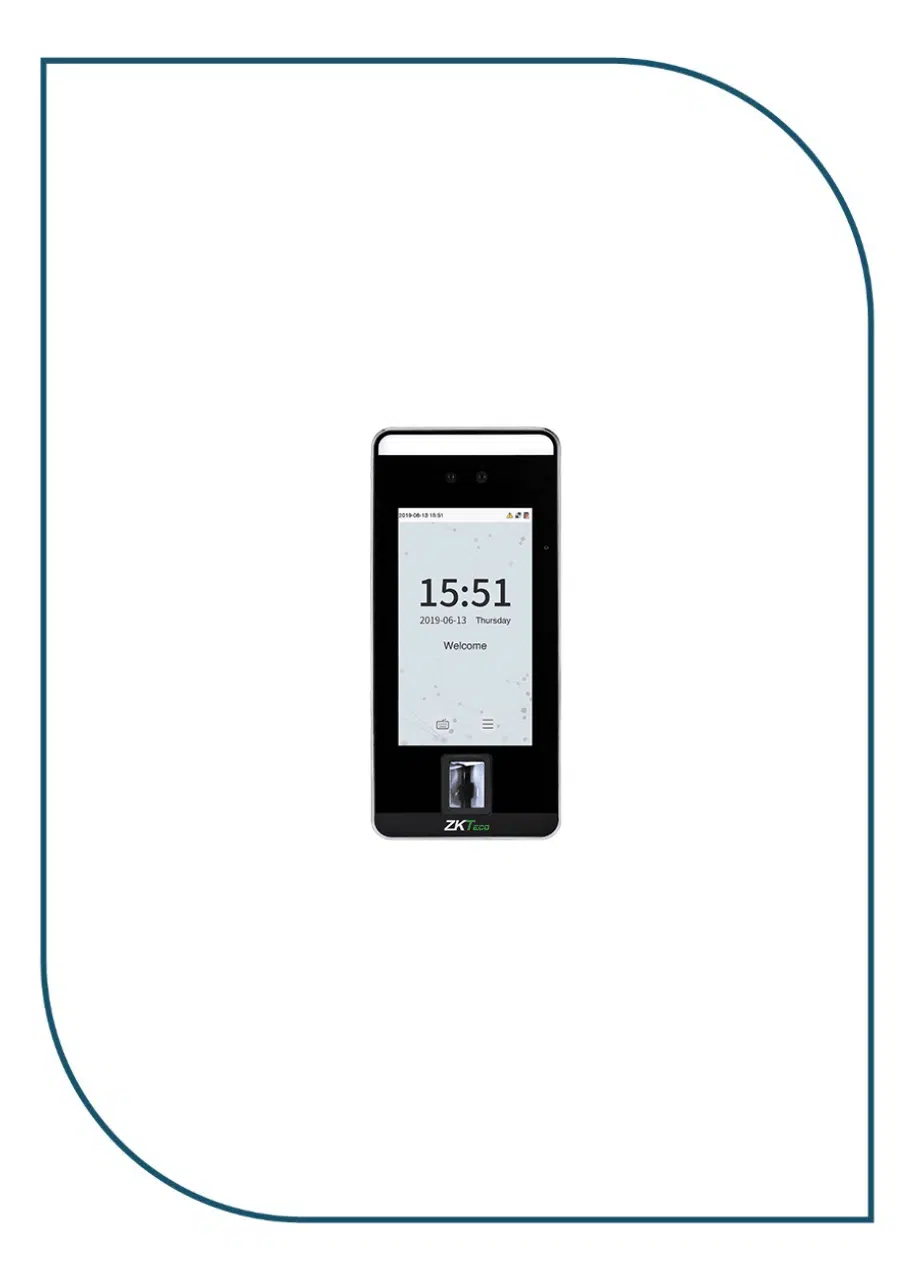

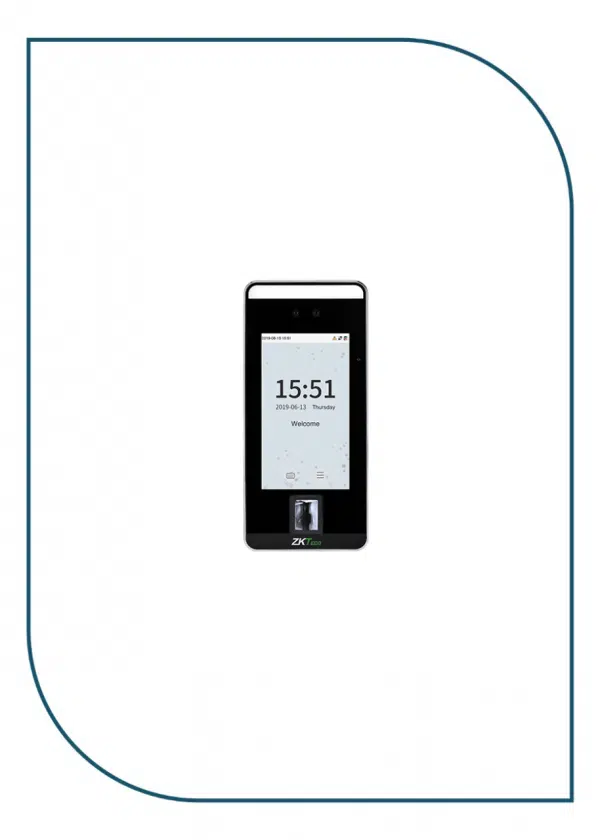

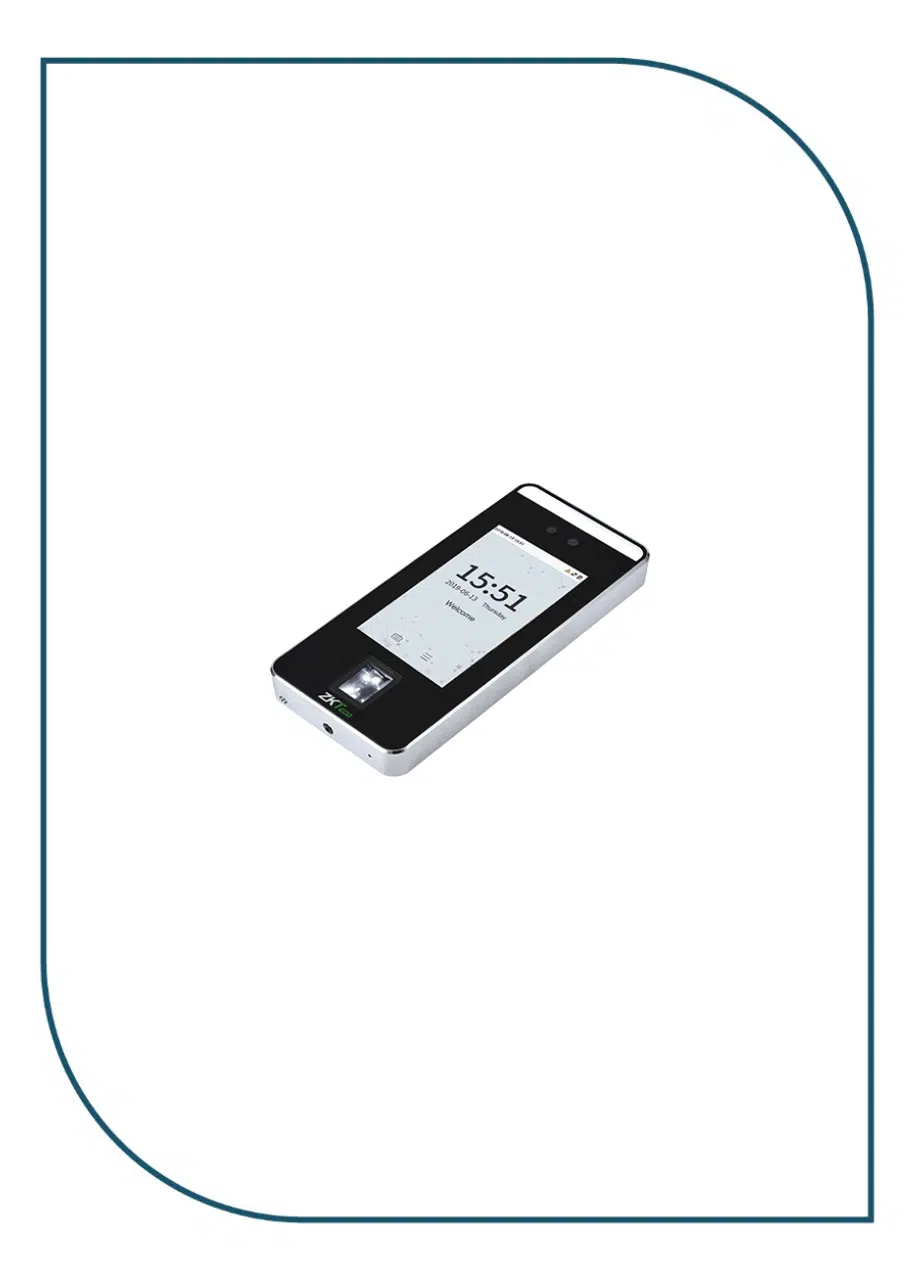

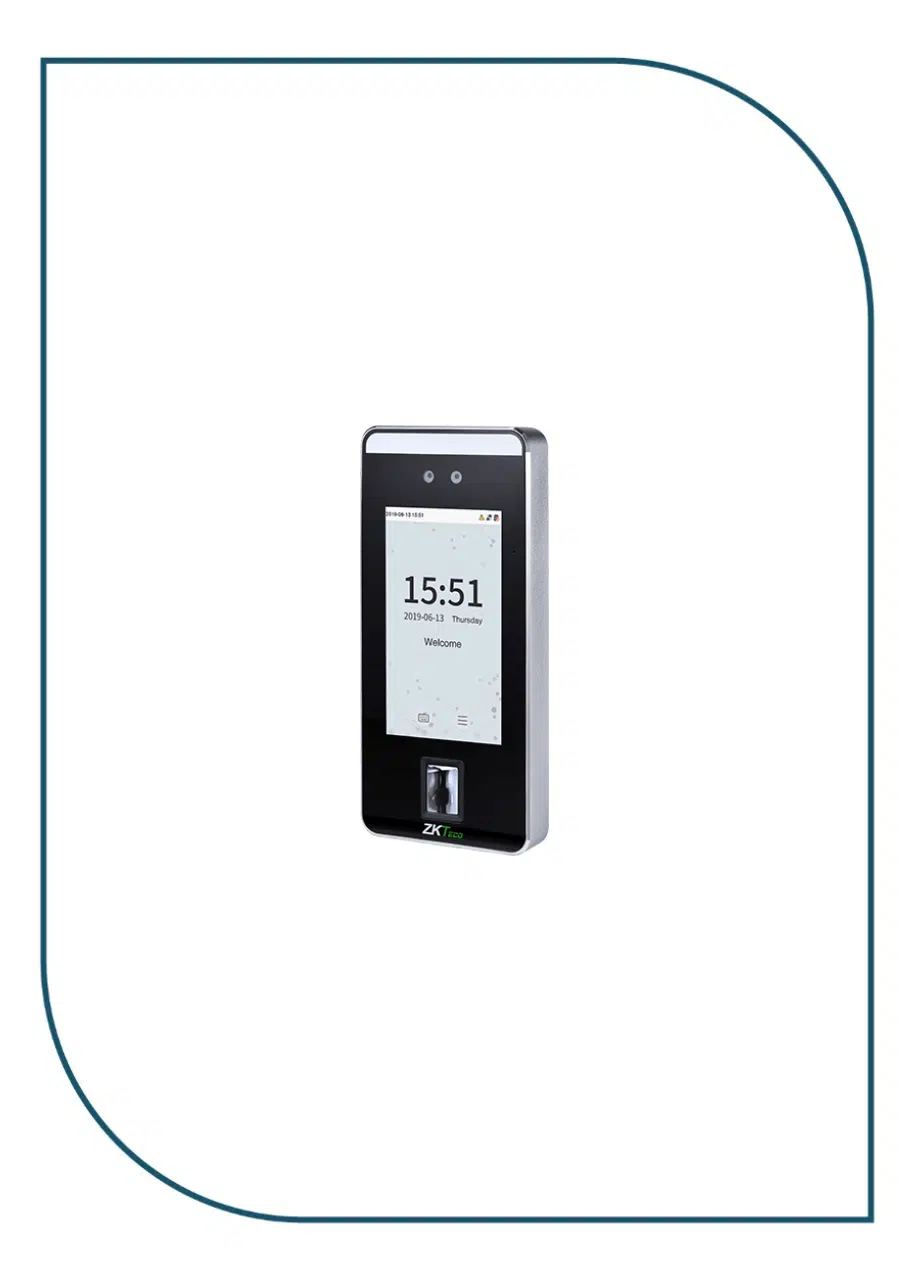

SpeedFace-V5L
| Category | Specification |
|---|---|
| Model | SpeedFace-V5L / V5L[TD] / V5L[TI] |
| Display | 5″ ISP Color LCD Screen (720×1280) |
| Camera | WDR Low Light Camera @ 2MP |
| Operating System | Linux |
| Hardware | CPU: 1GHz Dual Core
RAM: 1GB ROM: 8GB Supplement Light: Yes Virtual Keypad: 12 Keys Fingerprint Sensor: Z-ID |
| Authentication Methods | Face / Fingerprint / Palm (Customized) / Card / Password (via Virtual Keypad) |
| Template Capacities | Fingerprint: 6,000 (1:N) Standard / 10,000 Optional / 6,000 (1:1)
Face: 6,000 (1:N) Standard / 10,000 Optional / 6,000 (1:1) Palm: 3,000 (1:N) Standard / 3,000 (1:1) Card: 10,000 (1:N) Optional / 10,000 (1:1) |
| Transaction Capacity | 200,000 (Optional for capacity expansion) |
| Verification Speed | Fingerprint: < 0.3 sec
Face: < 1 sec Palm: < 0.35 sec |
| Recognition Distance | Face: 1cm to 100cm
Palm: Up to 50cm |
| False Acceptance Rate (FAR) | Face: ≤ 0.01%
Fingerprint: ≤ 0.0001% Palm: ≤ 0.05% |
| False Rejection Rate (FRR) | Face: ≤ 0.02%
Fingerprint: ≤ 0.01% Palm: ≤ 1.8% |
| Biometric Algorithms | ZKFace 3.9
ZKFingerprint V10.0 ArmaturaPalm (Customized) |
| Card Types | ID Card @ 125 kHz (Optional)
IC Card @ 13.56 MHz (Optional) CEPAS (Optional) |
| QR Code Support | Dynamic & Static via ZKBio CVSecurity App. Supports QR, PDF417, Data Matrix, MicroPDF417, Aztec (QR500/600 series) |
| Communication Interfaces | TCP/IP x1
Wiegand Input/Output x1 RS485 x1 (ZKTeco RS485) Aux Inputs x1 Aux Outputs x1 Electric Lock x1 Door Sensor x1 Exit Button x1 Alarm x1 Doorbell x1 |
| Standard Functions | ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Modes |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C ~ 45°C (14°F ~ 113°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions (L×W×H) | 91.93mm × 202.93mm × 21.5mm |
| Weight | Gross: 1.3 Kg / Net: 0.6 Kg |
| Supported Software | PC Software: ZKBio CVAccess
Mobile Apps: ZKBio Zlink / ZSmart Cloud: ZKBio Zlink |
| Installation | Wall-mounted (Compatible with Asian Gang-box / Single Gang-box) |
| Certifications | ISO14001, ISO9001, CE, FCC |
Features ·
- Visible Light Facial Recognition. ·
- Fingerprint and Palm (Customized) Recognition.
- Specific for dynamic QR code: QR code, PDF417, Data Matrix, MicroPDF417and Aztec.
- · Compatible with ZKBio CVAccess Mobile App for access control management
- · Supports video intercom via ZSmart App through mobile devices.
- · ONVIF Protocol. · Better hygiene with touchless biometric authentication and masked individual identification.
- · Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack.
- · Available card modules: 125kHz ID card / 13.56MHz IC card.
- · Supplement light with adjustable brightness.
- · Multiple Verification Methods: Fingerprint / Face / Palm (Customized) / QR Code / Card / Password.
- · Mask detection; facial verification available with masks(Only TD/TI).
the SpeedFace-V5L Series employs intelligent engineering facial recognition algorithms and cutting-edge computer vision technology. It offers support for fingerprint, facial, and palm verification with large capacity and speedy recognition. Moreover, the SpeedFace-V5L is equipped with QR code support via Mobile APP, further enhancing the device’s security performance in all aspects.
SpeedFace-V5L Series uses touchless recognition technology and can identify individuals even when wearing masks, making it a hygienic option. Additionally, it has an advanced anti-spoofing algorithm that can detect fake photos and videos. It also features 3-in- 1 palm recognition, which can identify Palm Shape, Palm Print, and Palm Vein in just 0.35 seconds per hand. The palm data is then compared to a maximum of 3,000 palm templates. The facial camera also supports QR codes, Data Matrix, MicroAztec, and other formats, and the ZKBio CVAccess Mobile App supports Dynamic QR codes for T&A/A&C.
The TD/TI Version with mask detection helps reduce the spread of germs and help prevent infections straightly. At each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, and stations during the recent global public health issue with its masked individual identification function during facial and palm verification.
SpeedFace-V5L Series supports video intercom via the mobile app ZSmart. Also, they are integrated with ONVIF Video protocol to connect to ONVIF NVR for Video surveillance and recording. Moreover, it is compatible with ZKBio Zlink Mobile APP & ZKBio Zlink-Web when switching to BEST protocol. It also supports SIP Protocol connection to the indoor unit.
