Description

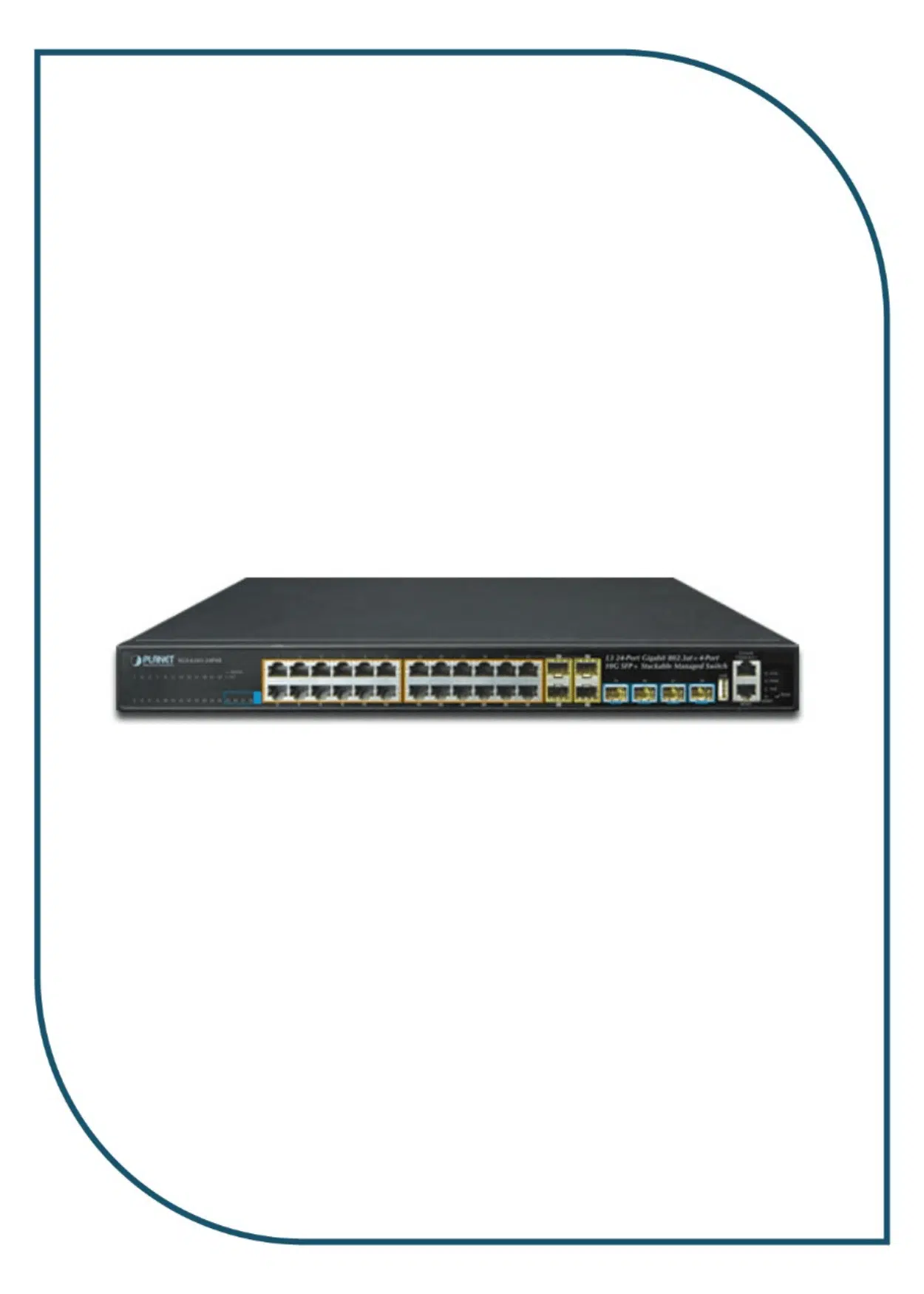

SGS-6341-24P4X
Powerful Layer 3 Gigabit Routing for Enterprise-level Solution
PLANET SGS-6341-24P4X Layer 3 PoE Stackable Managed Gigabit Switch provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128Gbps switching fabric, the SGS-6341-24P4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-24P4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6341-24P4X has 24 IEEE 802.3at PoE+ ports and PoE budget up to 370 watts for catering to medium to large scale of VoIP or IP surveillance networks at a competitive cost.
SGS-6341-24P4X Key Features
Physical Ports
- 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at/af PoE injector
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- RJ45 to DB9 console interface for switch basic management and setup
Power over Ethernet
-
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
– Total PoE power budget control
- – Per port PoE function enable/disable
- – PoE port power feeding priority
- – Per PoE port power limitation
- – PD classification detection
- – PoE schedule
IP Stacking
- Connects with stack member via both Gigabit TP and SFP interfaces
- Single IP address management, supporting up to 24 units stacked together
IP Routing Features
- IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
- Routing interface provides per VLAN routing mode
- VRRPv1/v3 protocol for redundant routing deployment
- Supports route redistribution
Multicast Routing Features
- Supports PIM-DM (Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode) and PIM-SSM (Protocol Independent Multicast – Source Specific Multicast)
- Supports DVMRP (Distance Vector Multicast Routing Protocol)
- Supports IGMP v1/v2/v3 and MLD v1/v2
Layer 2 Features
-
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
- Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
- Auto-MDI/MDI-X detection on each RJ45 port
- Prevents packet loss flow control
– IEEE 802.3x pause frame flow control in full-duplex mode
-
- – Back-pressure flow control in half-duplex mode
- High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
- 16K MAC address table, automatic source address learning and aging
- Supports VLAN
– IEEE 802.1Q tag-based VLAN
- – GVRP for dynamic VLAN management
- – Up to 256 VLANs groups, out of 4041 VLAN IDs
- – Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- – Private VLAN Edge (PVE) supported
- – GVRP protocol for Management VLAN
- – Protocol-based VLAN
- – MAC-based VLAN
-
- – IP subnet VLAN
- Supports Link Aggregation
– Maximum 12 trunk groups, up to 8 ports per trunk group
- – IEEE 802.3ad LACP (Link Aggregation Control Protocol)
-
- – Cisco ether-channel (static trunk)
- Supports Spanning Tree Protocol
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- – RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- – MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- – Supports BPDU & root guard
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
- Provides port mirror (many-to-1)
- Supports G.8032 ERPS (Ethernet Ring Protection Switching)
Quality of Service
-
- 8 priority queues on all switch ports
- Support for strict priority and WRR (Weighted Round Robin) CoS policies
- Traffic classification
– IEEE 802.1p CoS/ToS
- – IPv4/IPv6 DSCP
- – Port-based WRR
- Strict priority and WRR CoS policies
Multicast
- Supports IPv4 IGMP snooping v1, v2 and v3; IPv6 MLD v1 and v2 snooping
- Querier mode support
- Supports Multicast VLAN Register (MVR)
Security
- IEEE 802.1x port-based network access authentication
- MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
- TACACS+ login users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Supports DHCP snooping
- Supports ARP inspection
- IP Source Guard prevents IP spoofing attacks
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Management
-
- Management IP for IPv4 and IPv6
- Switch Management Interface
– Console/Telnet Command Line Interface
- – Web switch management
- – SNMP v1, v2c, and v3 switch management
- – SSH/SSL secure access
- BOOTP and DHCP for IP address assignment
- Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
- SNTP (Simple Network Time Protocol) for IPv4 and IPv6
- User privilege levels control
- Syslog server for IPv4 and IPv6
- Supports DDM
- Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
- Supports sFlow
- Supports ULDP
- Supports ULPP (Uplink Protection Protocol)
- Supports ULSM (Uplink State Monitor protocol)
- Supports LLDP/LLDP MED
- Supports DHCP Option82, Option37/38
- Supports ping, trace route function for IPv4 and IPv6
